Blackout Effectors Whetstone Phaser
Finally got around to tackling this monster… There is a few schematics floating around for this but I ended up using the one from Madbean.
Blackout Effectors
Blackout Effectors Crystal Dagger
Here is a cool one. It is essentally two separate circuits in one box, a fuzz with a switchable octave up and a tweaked Small Stone phaser. Original had separate boards as well and if you wish you can house them in separate enclosures. If you decide to house them in one enclosure, the fuzz … Read more

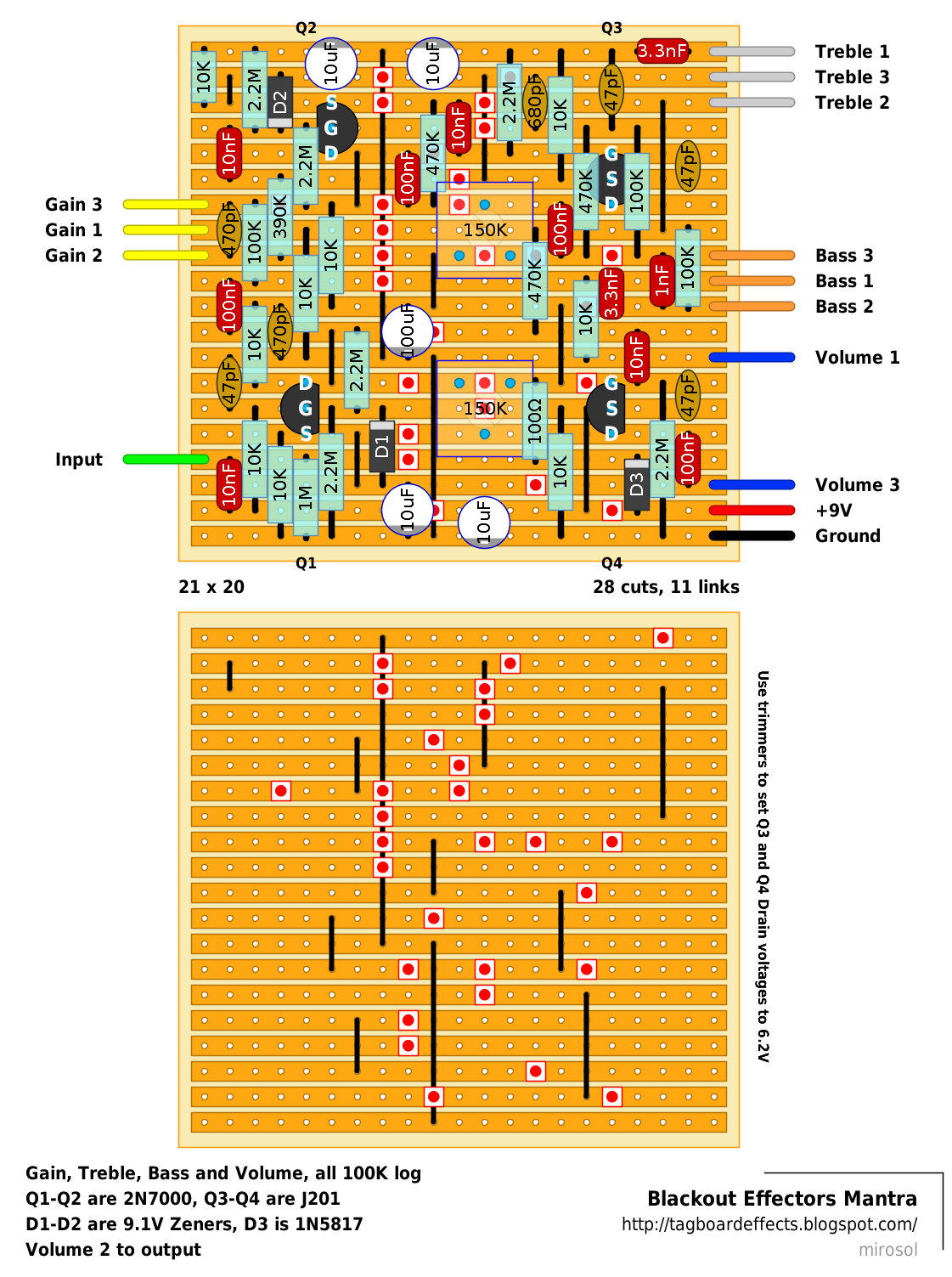

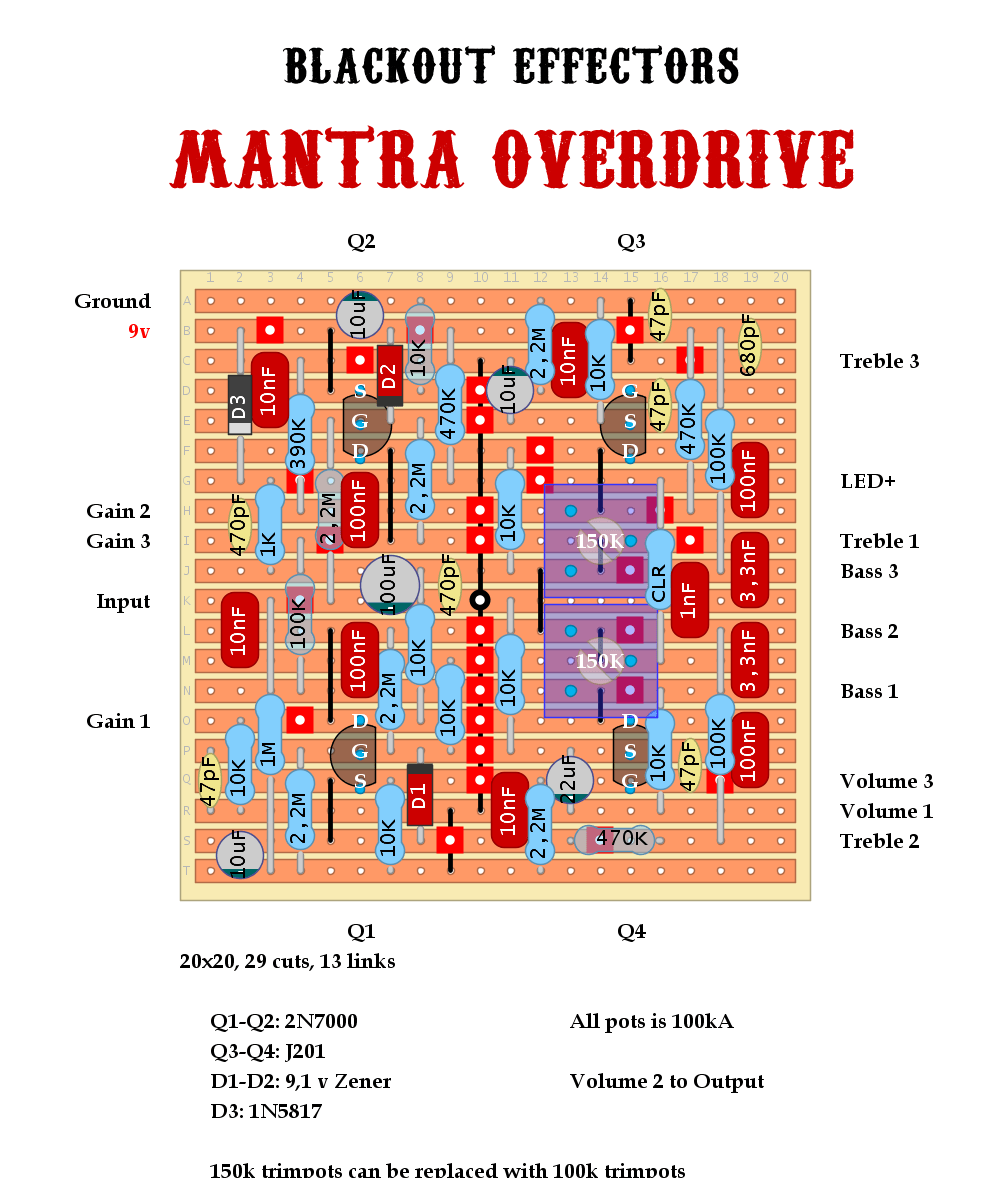

Blackout Effectors Mantra Overdrive
Here’s a great sounding overdrive from Blackout Effectors. It features a 2-band EQ and the standard drive and volume controls. The topology of the circuit is reminiscent of the classic Big Muff, (input amplifier, gain stage, gain stage, EQ, gan recovery stage) but the components are completely different. Here’s the schematic for reference. Adjust the … Read more

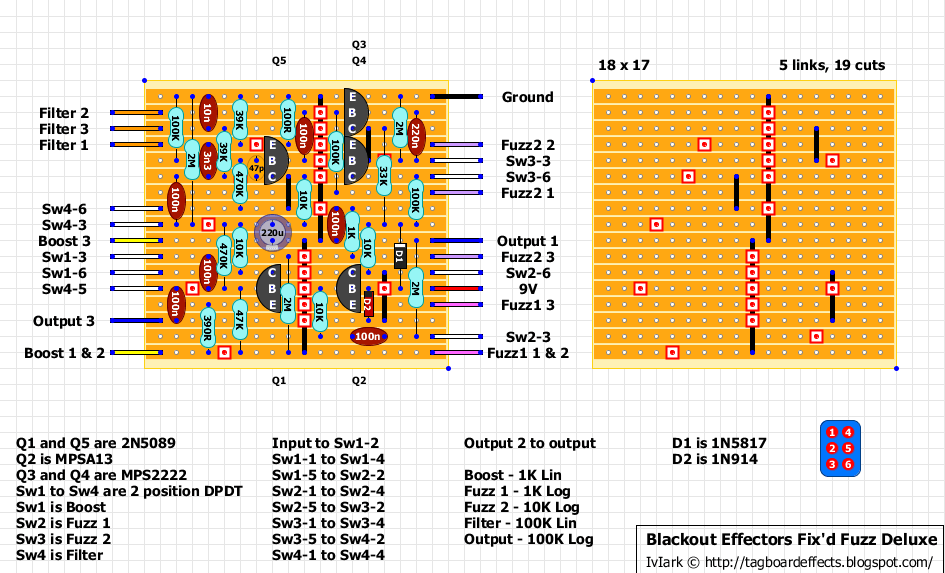

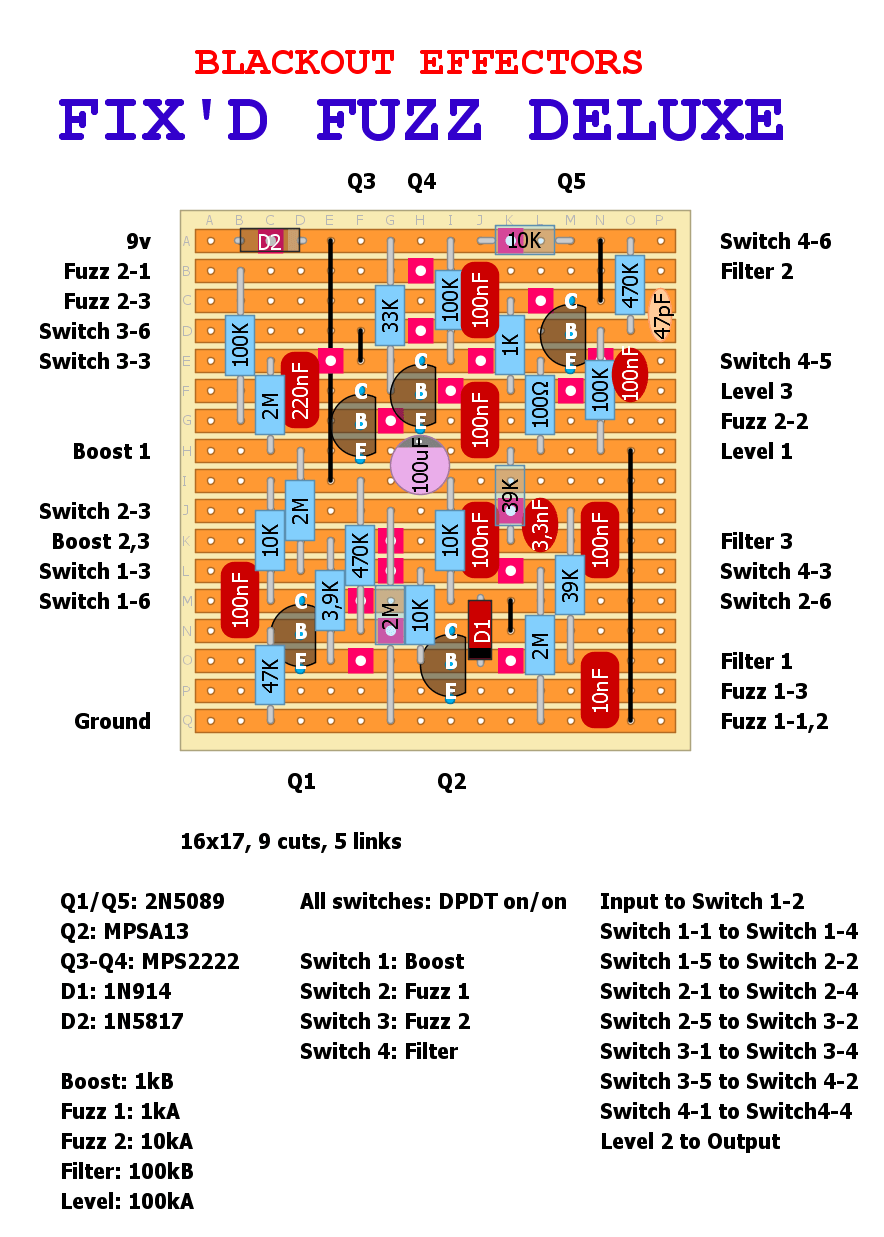

Blackout Effectors Fix’d Fuzz Deluxe
For #FuzzFriday, here’s the Fix’d Fuzz from Blackout Effectors. Part Big Muff, part Bazz Fuss, part Fuzz Face, the Fix’d Fuzz uses the basic structure of the Big Muff, but replaces the 2 gain stages with a Bazz Fuss and a Fuzz Face-esque circuit. What makes it really interesting is that every stage of the … Read more

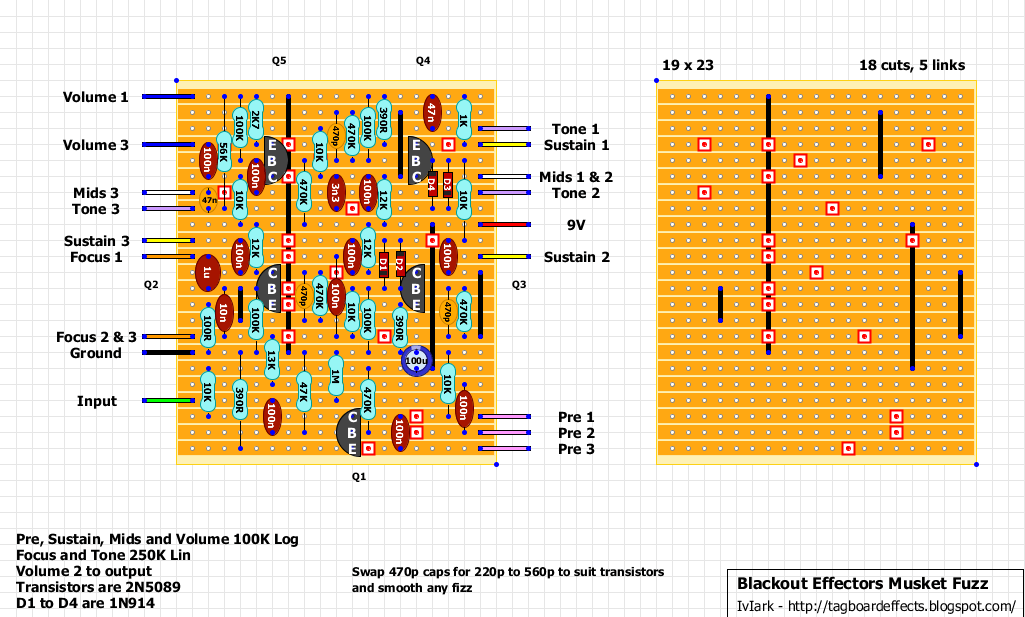

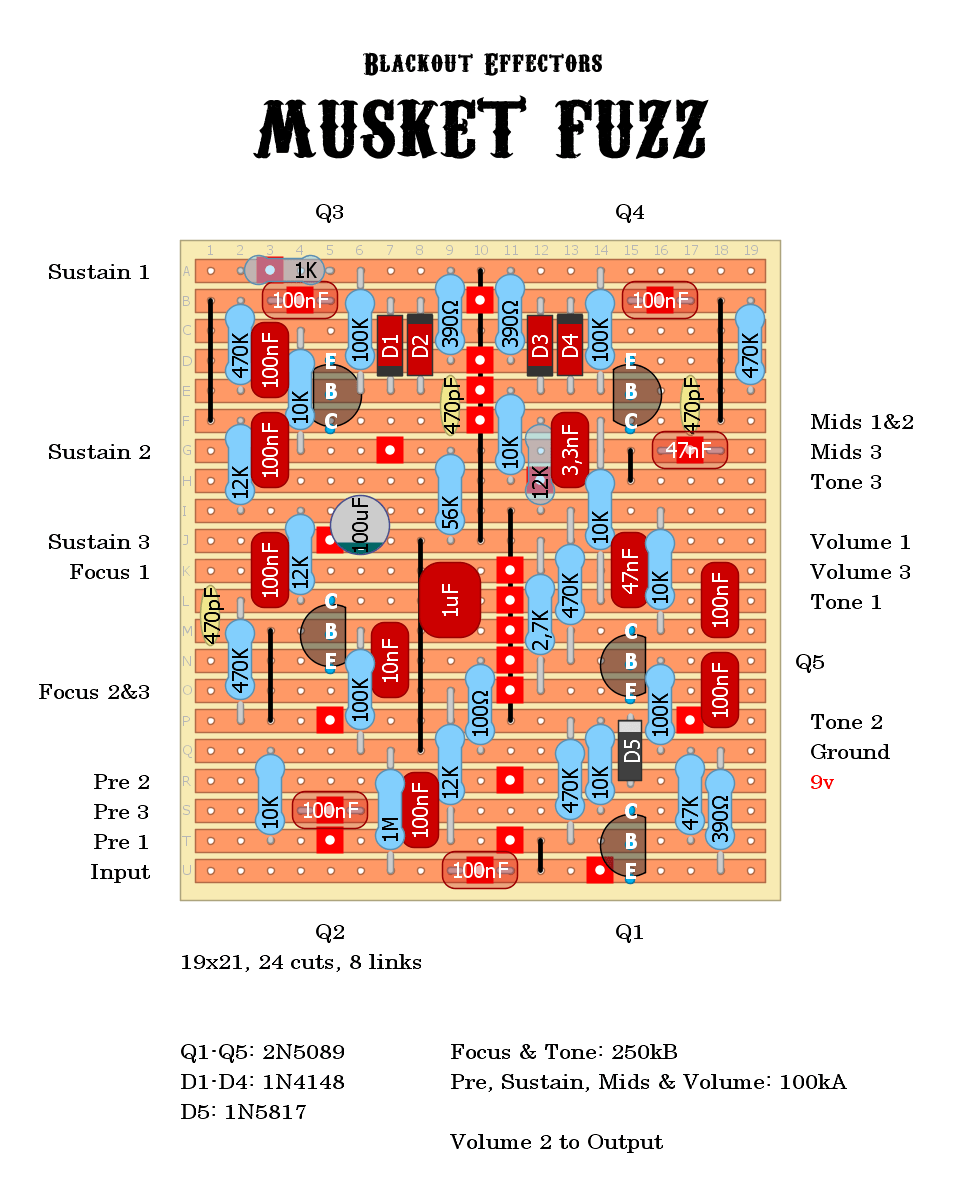

Blackout Effectors Musket Fuzz
The Musket Fuzz is a variation of the classic Big Muff. Based on a Black Russian version, the Musket adds a modified LPB-1 booster (the “Pre” section) that pushes the standard BMP circuit. The “Focus” control allows you to pan between 2 different capacitors at the input of the first stage of the BMP. The … Read more
