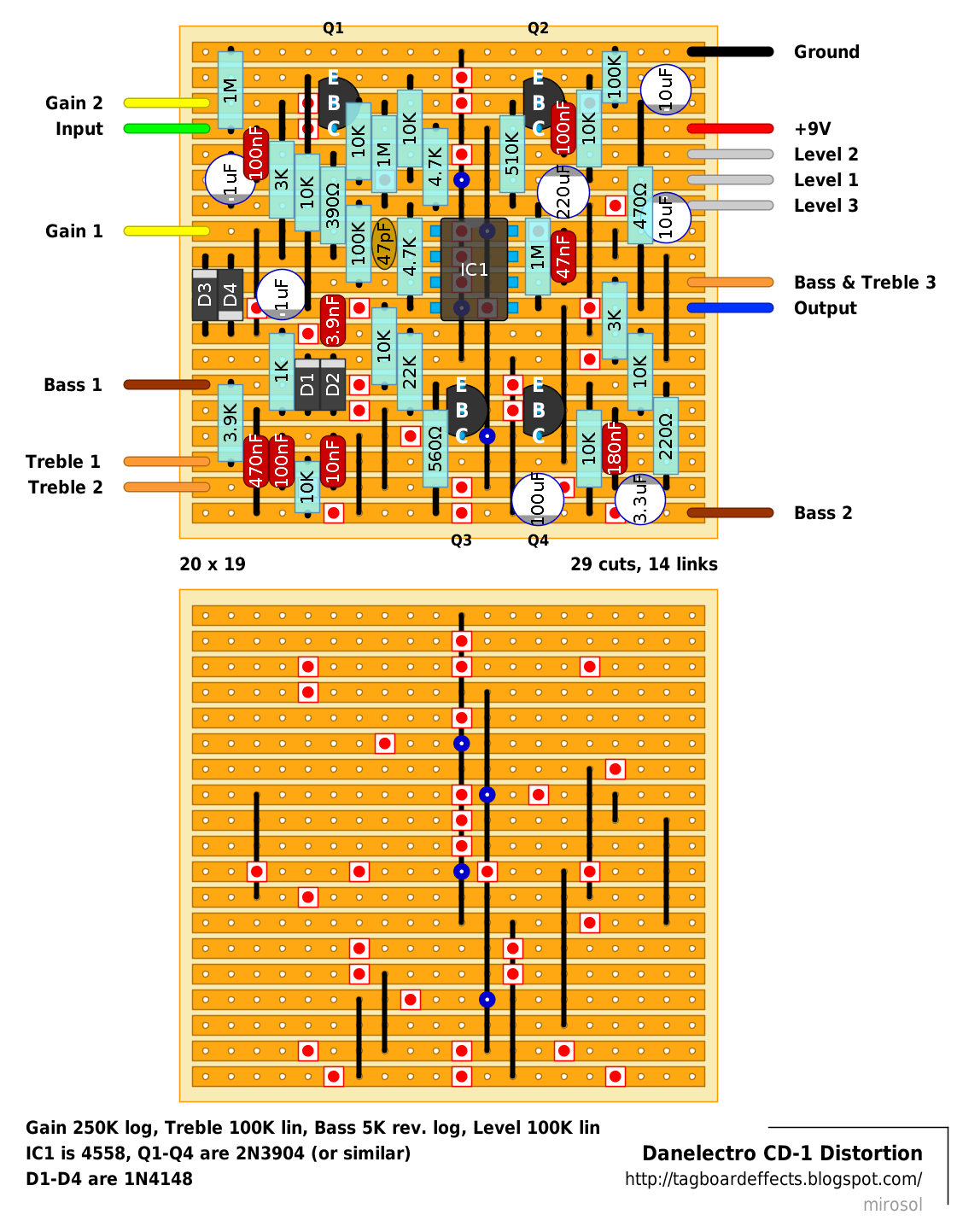

Someone mentioned that the circuit in an earlier post would have possibly been an inspiration for this one. Not sure if i share the sentiment, since that 80’s japanese design and this have basically, or in quite broad terms, just the gain pot method in common with each other. Anyway. Quite a few people seem … Read more
After checking a few things out, this turns out to be slightly modded Maxon DS-830 (thanks johnk for noticing). The 47p, 10n and 180n cap values are measured on board, so i’d suggest using sockets for those and see what values work the best for you. Anyway. This should be safe to build. Playing around … Read more
Now that we already have the Fab Tone layout published, i felt that we need to have this one too. Slightly simpler circuit with more controls.
Danelectro’s small box clone of Voodoo Labs OCD with added output buffer 😛 Geiri’s demo:
Since we’re having a streak of big boards… 🙂 Guess i’m getting old too since it’s been over 15 years since this appeared on the marked.. This layout is without the input, output and switching buffers. Should still go nicely in B box. The transistors were 2SC1815GR on the original, but i’ve tweaked the layout … Read more
Quite a nice sounding and simple AutoWah. Thanks to Bernardduur on FSB for the scheme. Short but sweet: It’s a ’70s style auto wah like you haven’t heard since you tossed your bell bottoms.

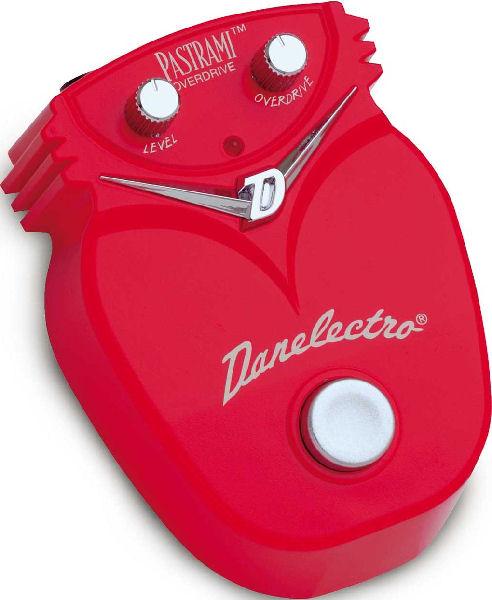

Short and sweet: The Pastrami Overdrive is well seasoned overdrive with great sustain. Delicious tone! FYA Electronics Moldy Meat Drive by mirosol Thanks mirosol for the first cheapy pedal mod, it sounds like this offers real improvements.
