Dead Astronaut
Dead Astronaut Black Triangle Overdrive
There was an old unverified layout in the library that I wasn’t too fond of. So here is a new one! Schematic is avaiable HERE.
Dead Astronaut Skyscape Chorus
Based on EHX Small Clone but with lots of mods and useful addons. Schematic is avaiable HERE. *Update 231112* Layout is corrected since Erubi spotted some errors
DEAD ASTRONAUT: X Fuzz

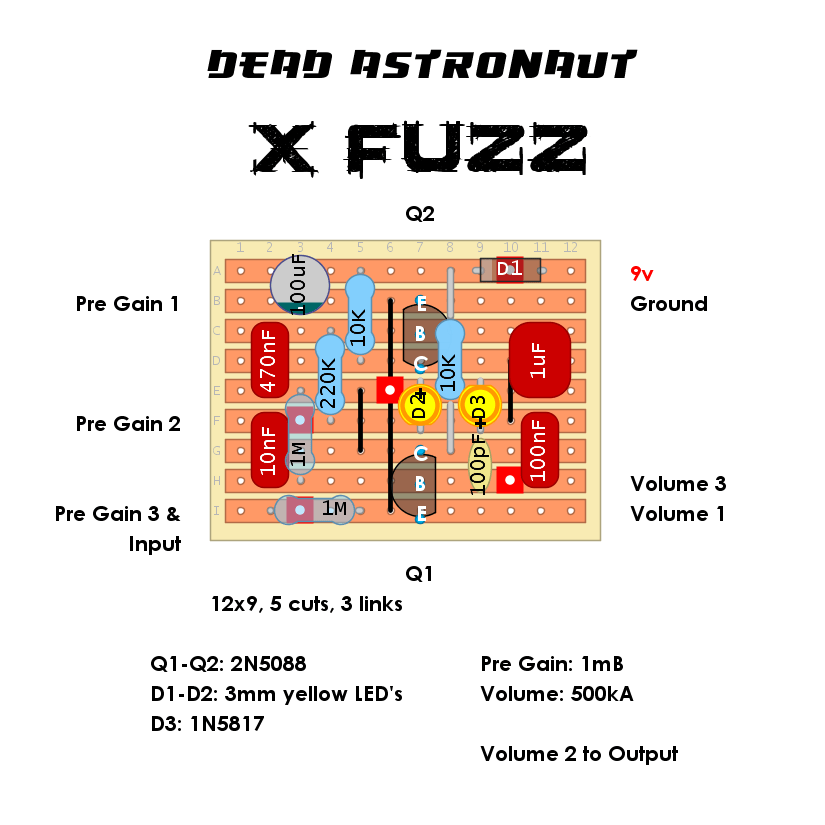

I thought while I was at the Dead Astronaut X Rock, I may as well do an X Fuzz… It’s a nice easy pedal build, with some big sounding results. DEAD ASTRONAUT X FUZZ – VERO LAYOUT
DEAD ASTRONAUT: X Rock

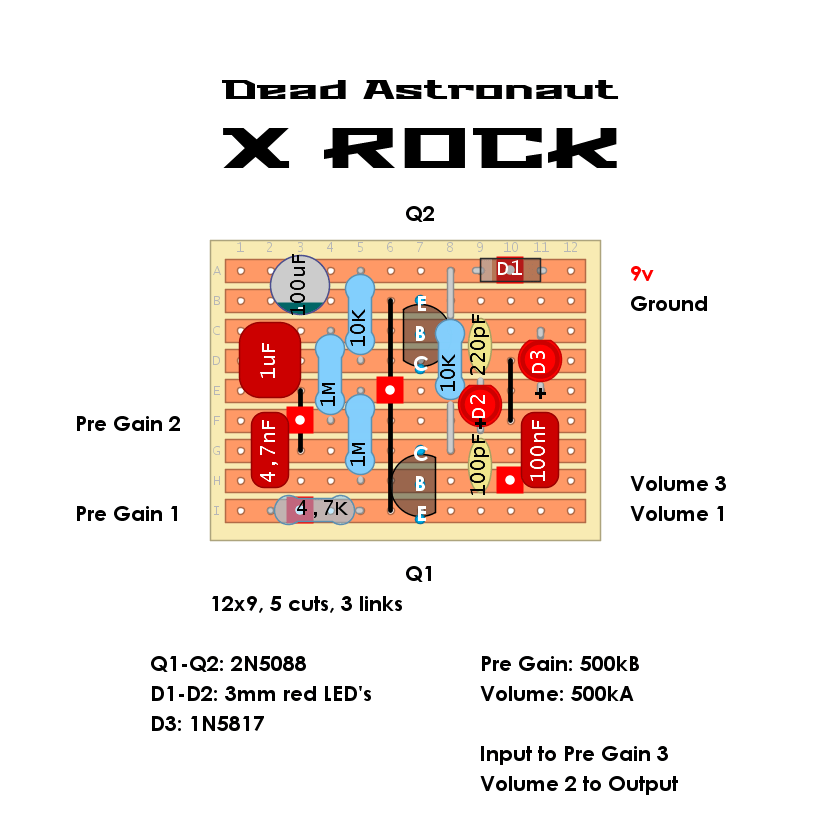

The Dead Astronaut X Rock is a variation of the X Fuzz, which makes a mighty noise for a pretty small/simple circuit. It’s very loosely the first two stages of a Big Muff – so boost and clip with diodes across the base and collector. That’s about where all similarities end. DEAD ASTRONAUT X ROCK – … Read more
Dead Astronaut Timestream Reverb
A simple delay with both subtle reverb tones as well as oscillation reverb…. Schematic HERE
Dead Astronaut Faze Filter
Requested by Alltrax74, a phaser based on MXR Phase 90 with some bells and whistles. Schematic is avaiable HERE Note that the J FETs should be matched for best effect and CLR 1 value is 47k in the schematic but you could probably go lower if you not using a super bright LED
DEAD ASTRONAUT: Xfuzz, Point to Point Layout
This is a very simple little circuit from Dead Astronaut, which has a little bit of Big Muff happening in the clipping section on Q2. Maybe not enough to tag it as being in the Big Muff family, it’s certainly a second cousin. While it might be simple, the Dead Astronaut X Fuzz is a fierce little … Read more
