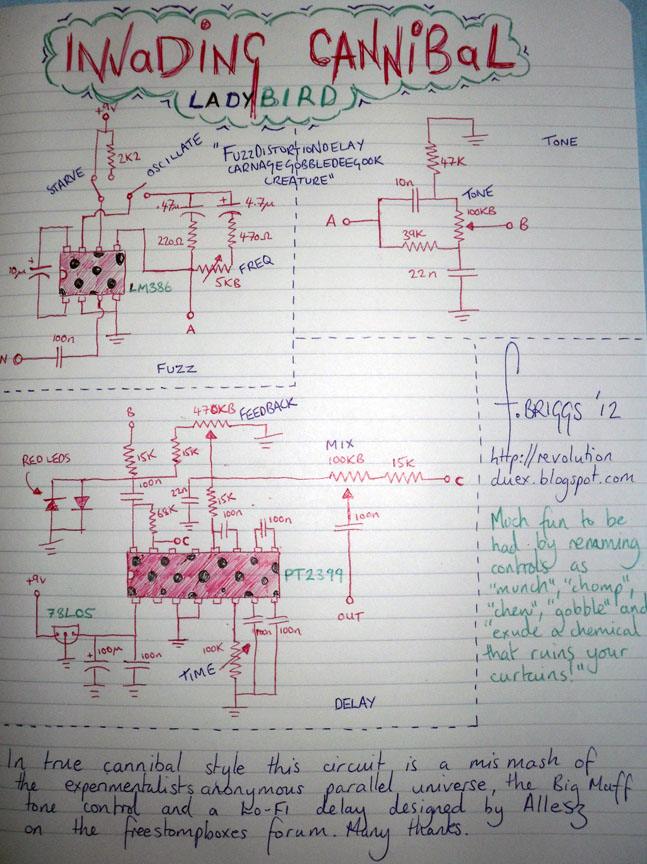

Is it a fuzz? Is it a distortion? Is it a delay? No it’s an Invading Cannibal Ladybird….. Hmmm. Here is the schematic for a crazy device I knocked up on breadboard. It’s a Cannibalization of the Parallel Universe from eaced.com, the big muff tone control and the lofi delay created by Allesz for last … Read more

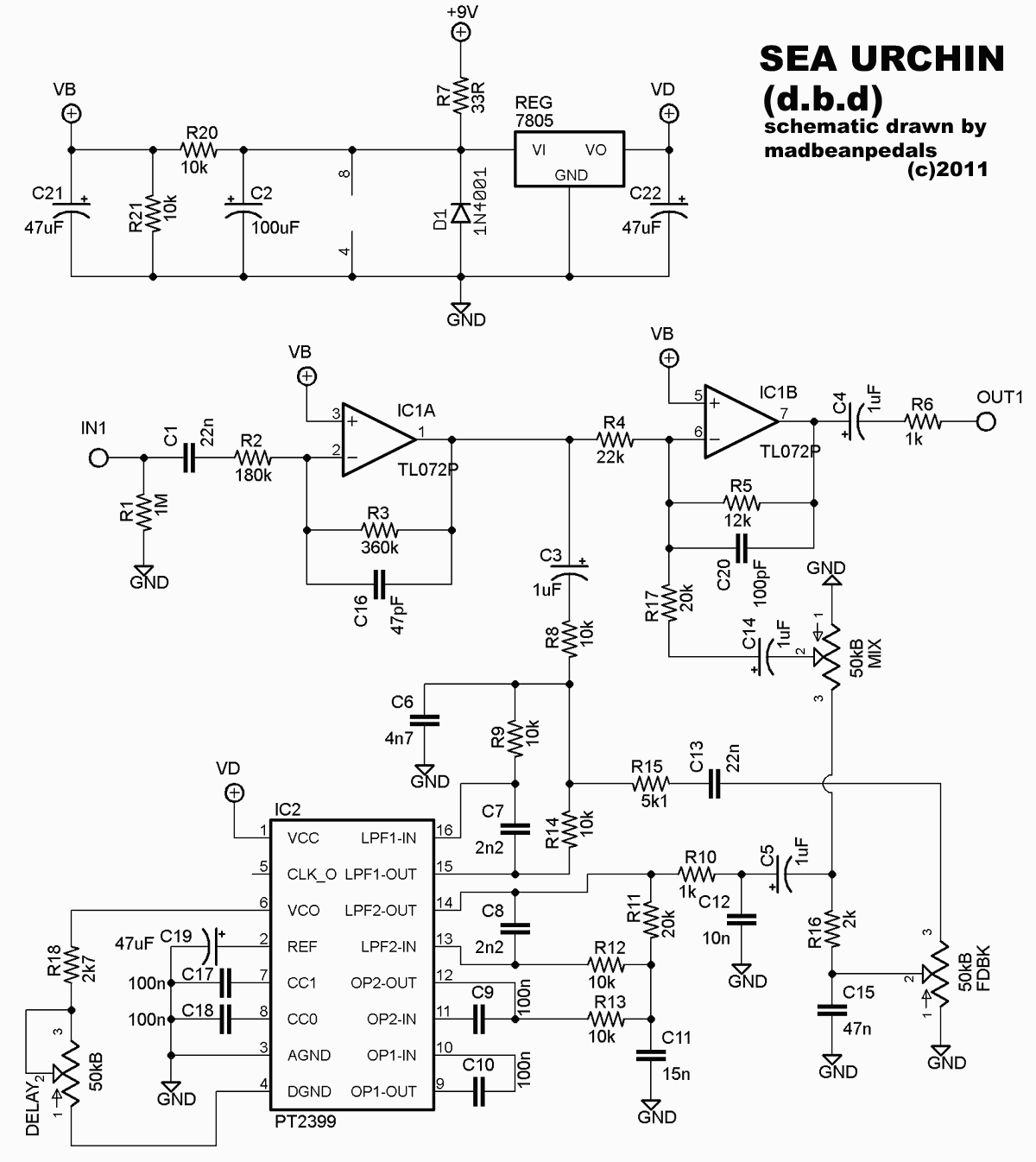

Here is another Mad Professor pedal, one of the designs which has garnered the most interest around it. Well, it’s been gutted and reverse engineered. Unfortunately there is nothing new in the design – it’s a pretty standard PT2399 design based off the Rebote Delay 2.5 but it does sound very good. Here is the … Read more
In my previous post HERE I showed how I’d turned a Behringer RM600 Reverb Machine from useless to great. After multiple requests; here is the schematic that I used for my switching and mixing sections: As you can see I used a Super Hard On for the PreGain circuit and to buffer up the front … Read more

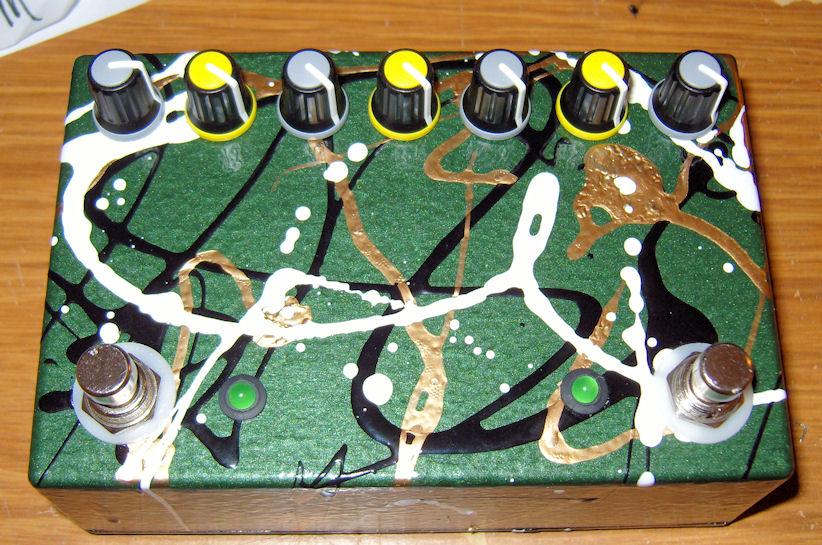

FOR INFO ON HOW I DID THIS CHECK HERE! I’ve been working on this for a few days now. I purchased one of these: http://www.behringer.com/EN/Products/RV600.aspx, a Behringer RV600 Reverb Machine for a couple of quid. It’s supposed to be a replica of the Line 6 Verbzilla pedal (more info on that one here: http://line6.com/tonecore/verbzilla.html) and it does … Read more
Woooooo. Thanks to FSB we once again have a fresh project over at freestompboxes.org. The Way Huge Aqua Puss has, for a very long time, been the holy grail for analogue delay freaks. Well Joe Gore was kind enough to donate his to the cause and took some great gutshots which allowed a schematic to … Read more
Yes, a proximity controlled delay. It is basically a Zvex probe circuit hooked up to a modified Rebote delay circuit – the vactrol from the probe circuit is hooked in parallel over the rebote’s delay time control pot allowing you to take crazy control of this parameter! Above you can see the prototype boards bundled … Read more
