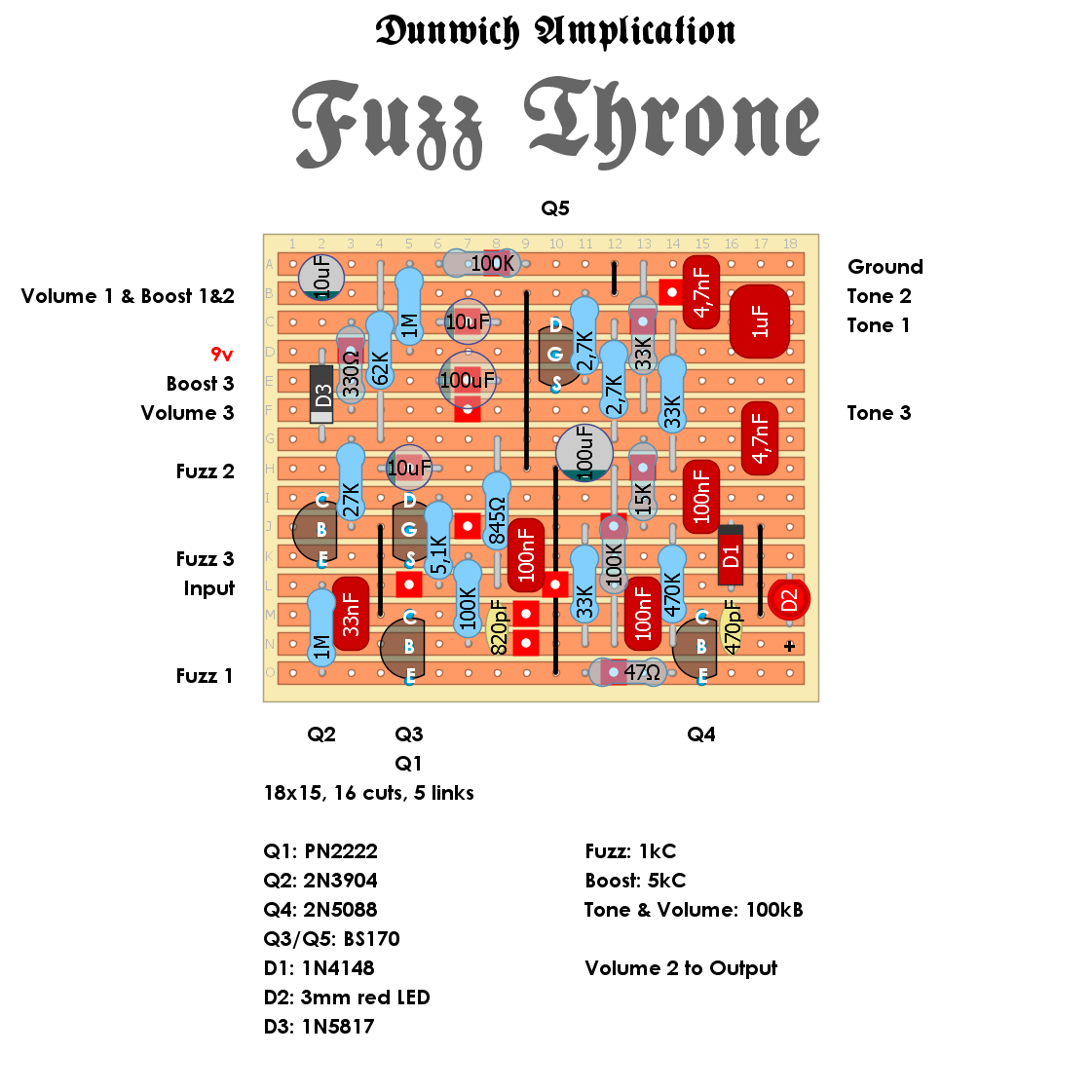

Dunwich Amplification Fuzz Throne
There is several versions of this one but the 4-knob version seem to be the most common version. Initially, it was a custom fuzz for doom band Conan but it was later slightly modified and morphed into Dunwich/Magic Pedals lineup of pedals. Traced by evilarsen and fuzzhead who both dig the sounds coming out of … Read more

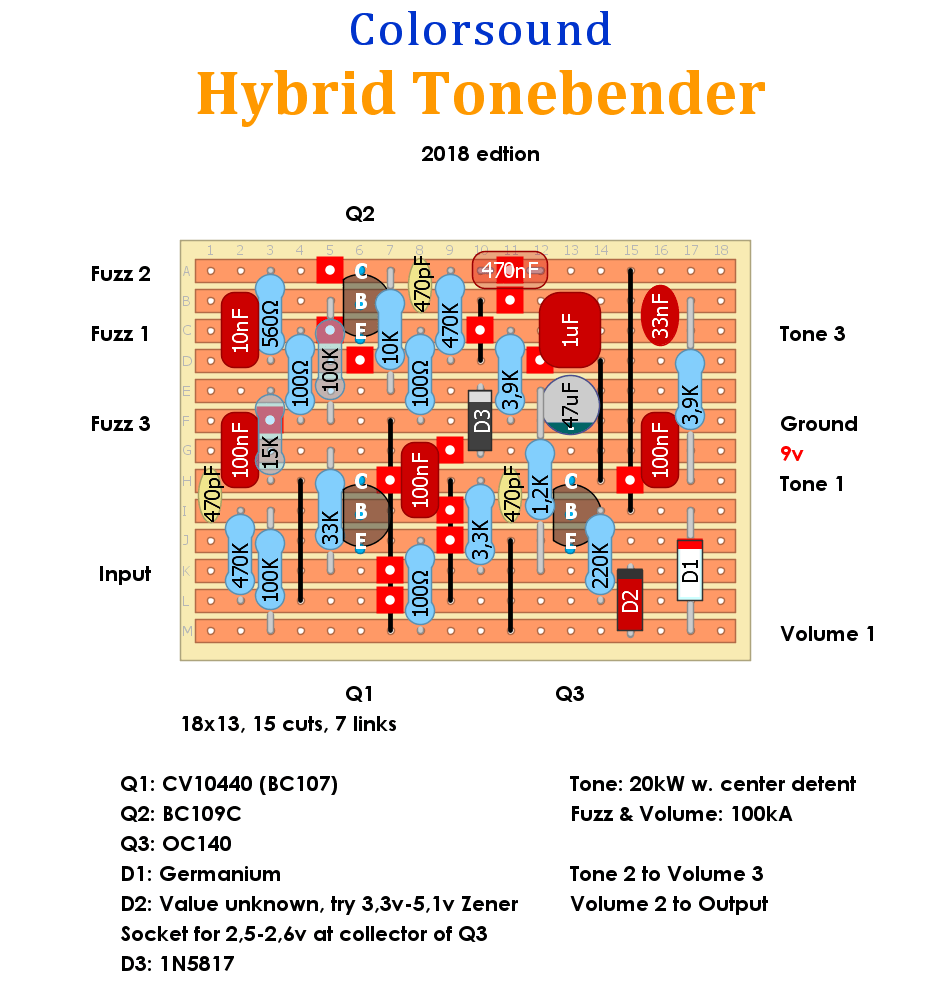

Colorsound Hybrid Tonebender 2018 Edition
Couldn’t resist to draw a schematic and a layout for this interesting mutant of a circuit that just got traced. First two gain stages is almost identical to a Jumbo Tonebender (except for one cap and one resistor value), the third gain stage is almost identical to the saturation stage in a Tonebender Mk. 3. … Read more

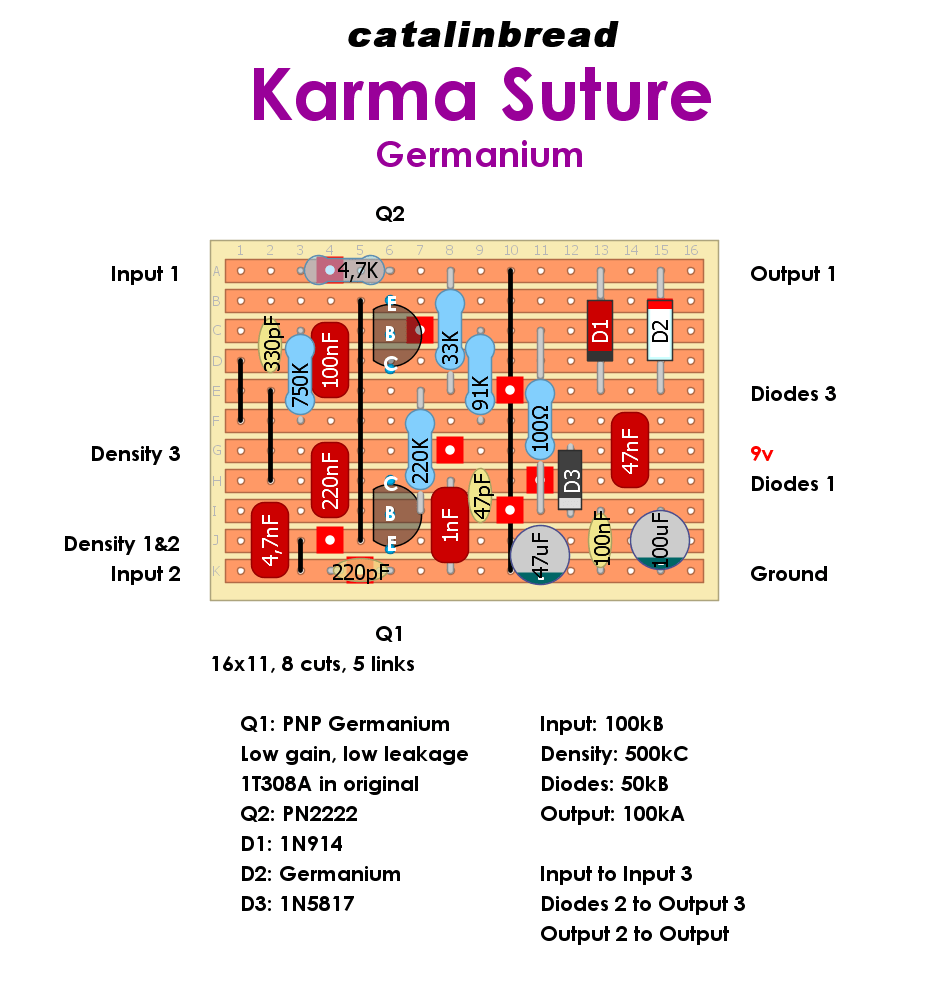

Catalinbread Karma Suture Germanium
Taking a break from the break since this one was too interesting to pass on and it was a quick layout. Tracing post, schematic and info at Aion Fx.

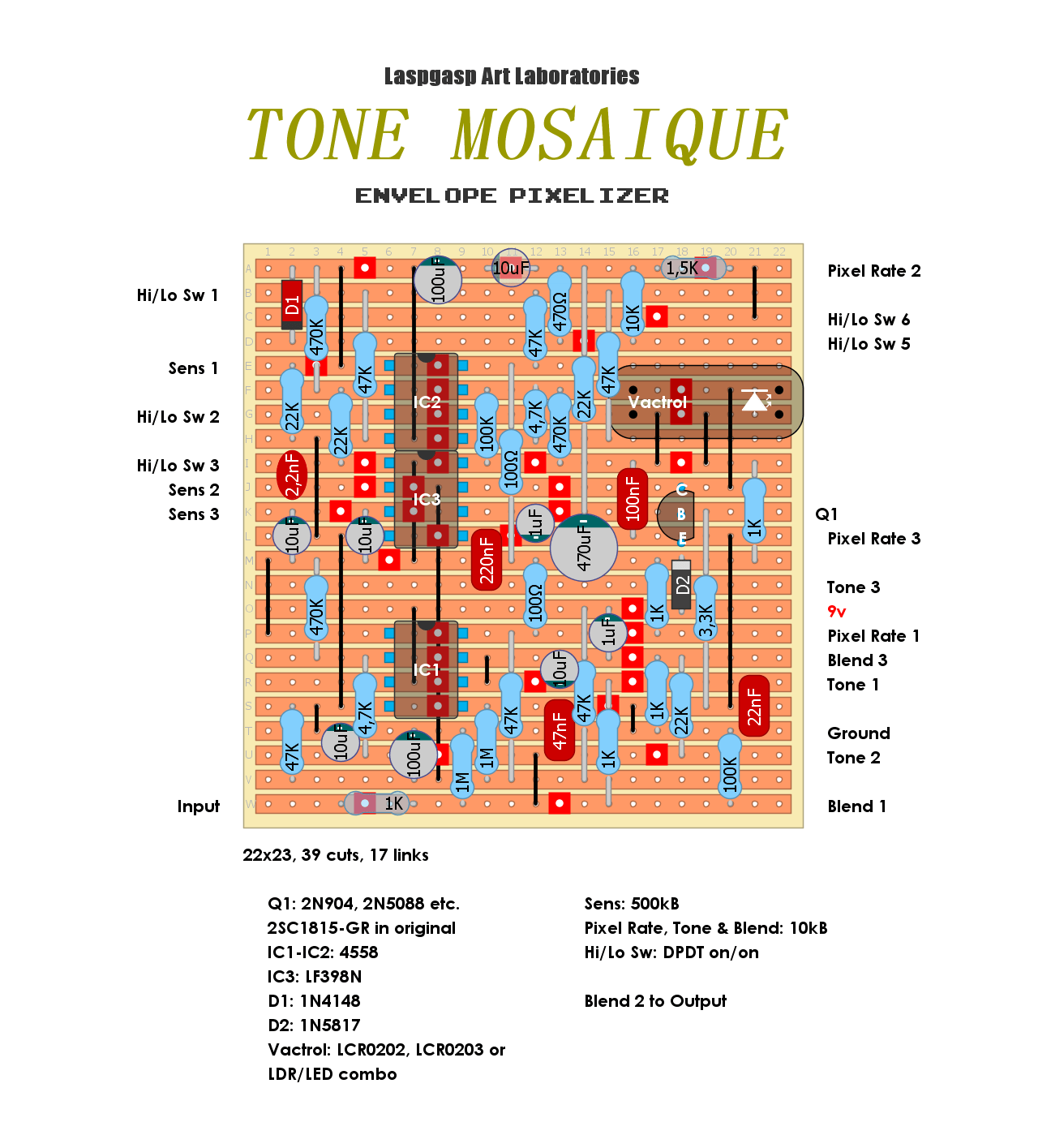

Lastgasp Art Laboratories Tone Mosaique
900 post. Phew. I think it is time for a couple of weeks break do deal with “outside world” issues.:-o. Will still log in here now and then and eventually upload something if something really interesting shows up. But here is a cool design from Lastgasp Art traced by Deadend FX, a bitcrucher/tremolo,/ringmod/envelope follower…thing. Schematic … Read more

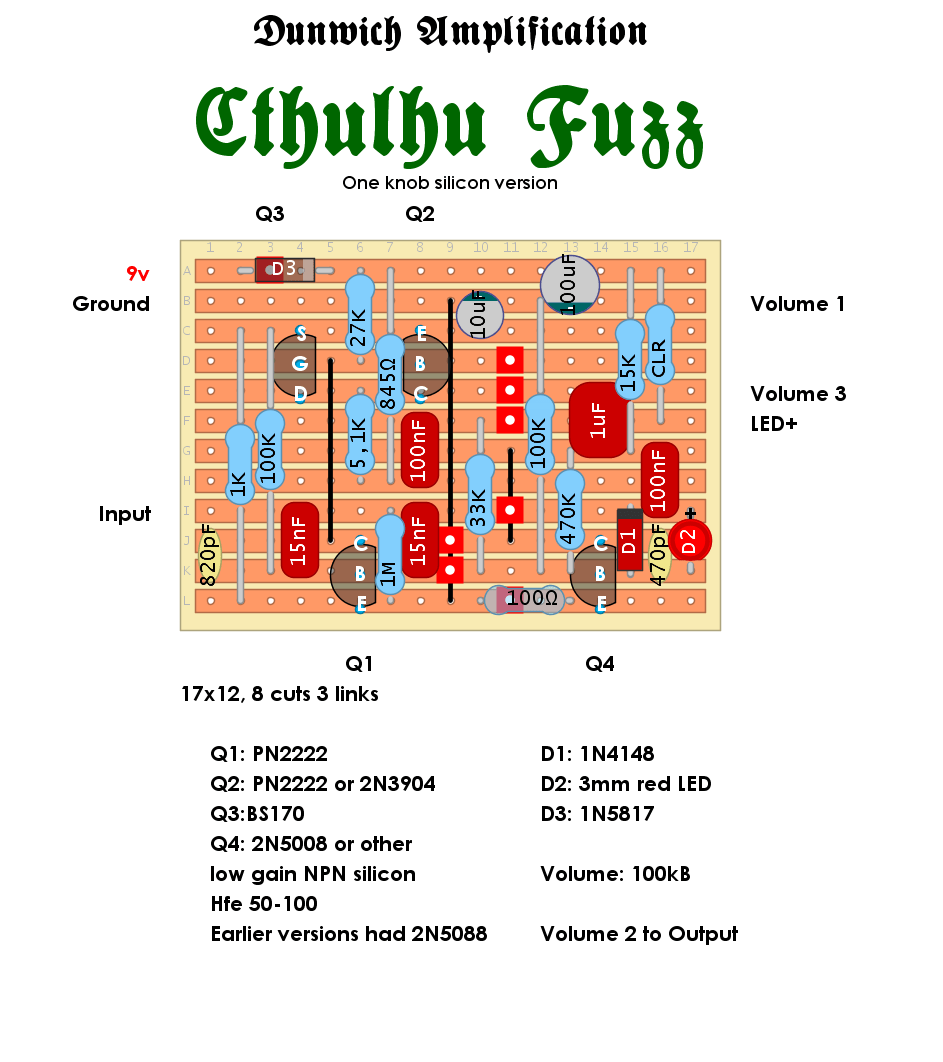

Dunwich Amplification Cthulhu Fuzz – 1 knob silicon version
Time for some doom. Recently traced by evilarsen and an odd fella who likes fuzz. Layout is verified.

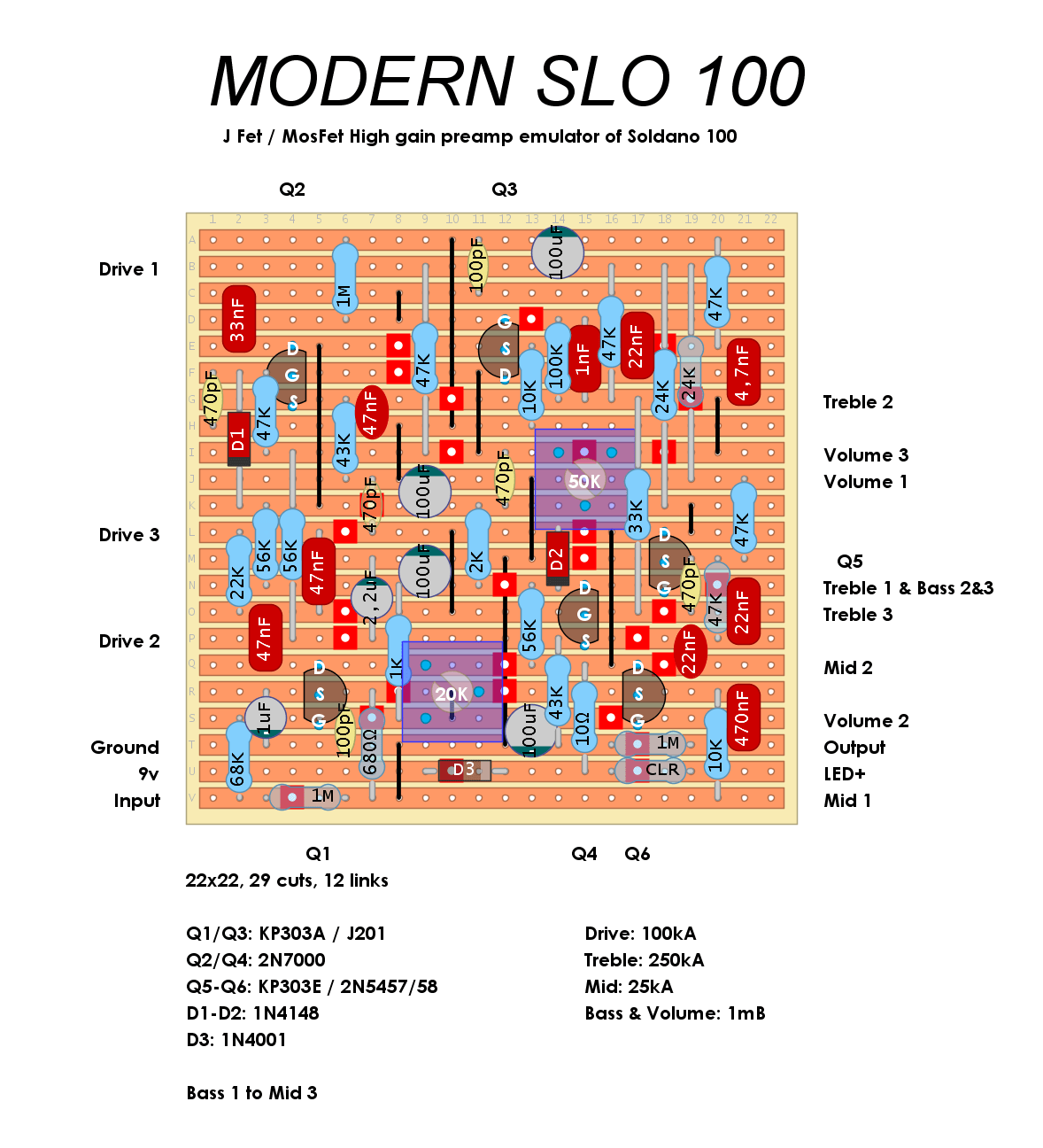

Modern SLO 100
Russian pre amp emulator of a Soldano SLO. D1 and D2 is optional since they only add some compression to the overall sound.

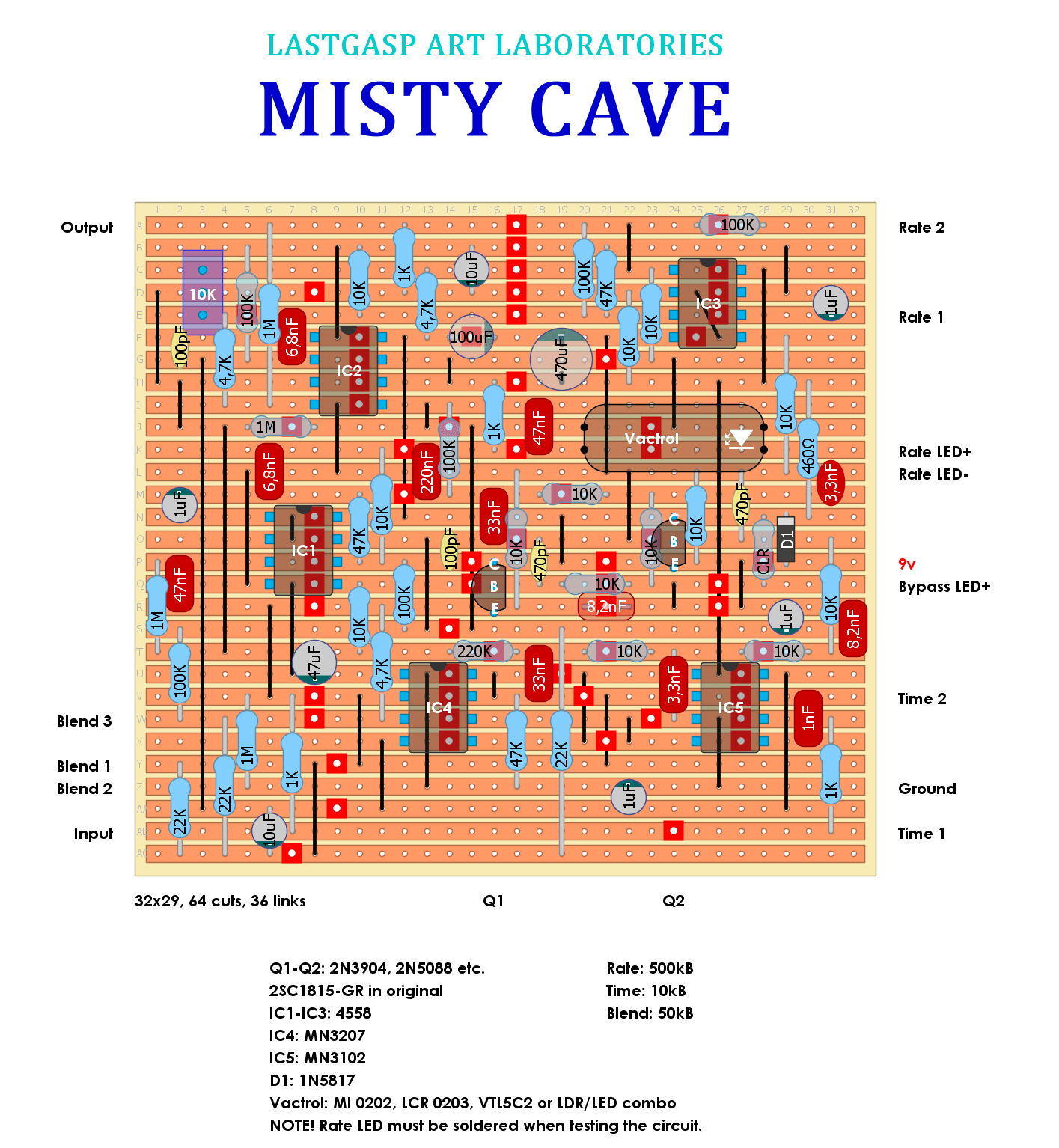

Lastgap Art Laboratories Misty Cave
A biggie but it will fit a BB enclosure without battery. If you think this is to big for vero, Deadend Fx have excellent PCBs for this circuit and many other cool designs. Schematic is avaiable HERE.
