DNA Analogic
DNA Analogic Smoky Fuzz
This is pretty much a souped up DOD250/MXR Distortion Plus derivate with more gain on tap and useful gain control. But the most interesting thing is the “Sens” control which pand between a low pass filter and hard clipping diodes. Schematic is avaiable HERE.

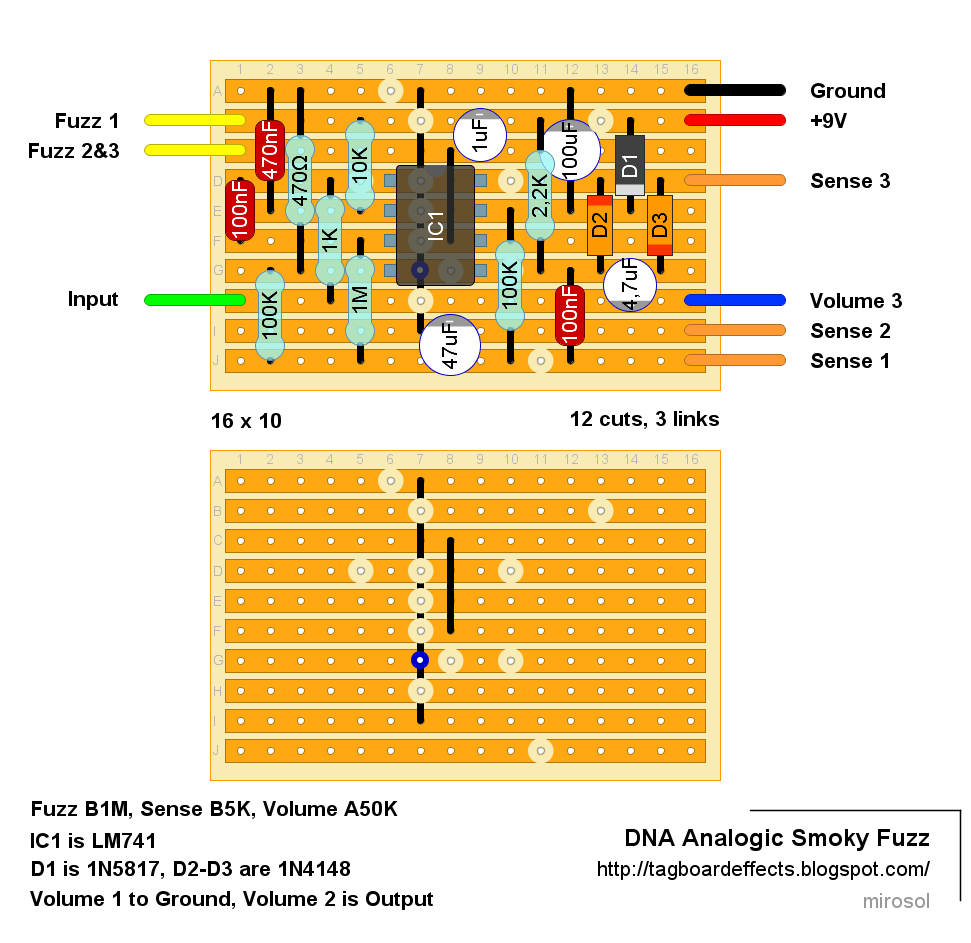

DNA Analogic Smoky Fuzz
Traced on FSB by Asbestosaurus, this circuit looks at a first glance a bit like OD250/Dist+, but no. And the Sense control makes this quite interesting. I built my layout version one, but this is redrawn to make it better.. Anyway, nice to see something cool done to a single opamp drive topology.
