DOD Envelope Filter 440 Reissue
Per request. This is supposed to a great envelope filter with both up and down sweeps. Schematic is avaiable HERE.
DOD
DOD: Carcosa Fuzz
This is a modernised version of the Maestro Super Fuzz FZ-1S (unrelated to the Univox). It keeps the hard clipping and twin filters, but there’s no clean blend, which is OK by me, as who wants a clean blend on a fuzz anyway. DOD CARCOSA FUZZ – VERO LAYOUT CARCOSA VIDEO DEMO
DOD 210 FET Preamp
Surprised this one hasn’t been done. A nice small and quick build, and should have lots of boost on tap and fatten up your tone nicely. Could be a good platform to mod to taste. Seems to be on the rare side to boot. Only video I could find was a DIY build that has … Read more
DOD FX15 Swell Pedal
Requested and verified by AlexS Original is a buffered effect with input and output connections wired straight to input and output jacks. But you can add a bypass switch, just connect input and output connections to the switch.

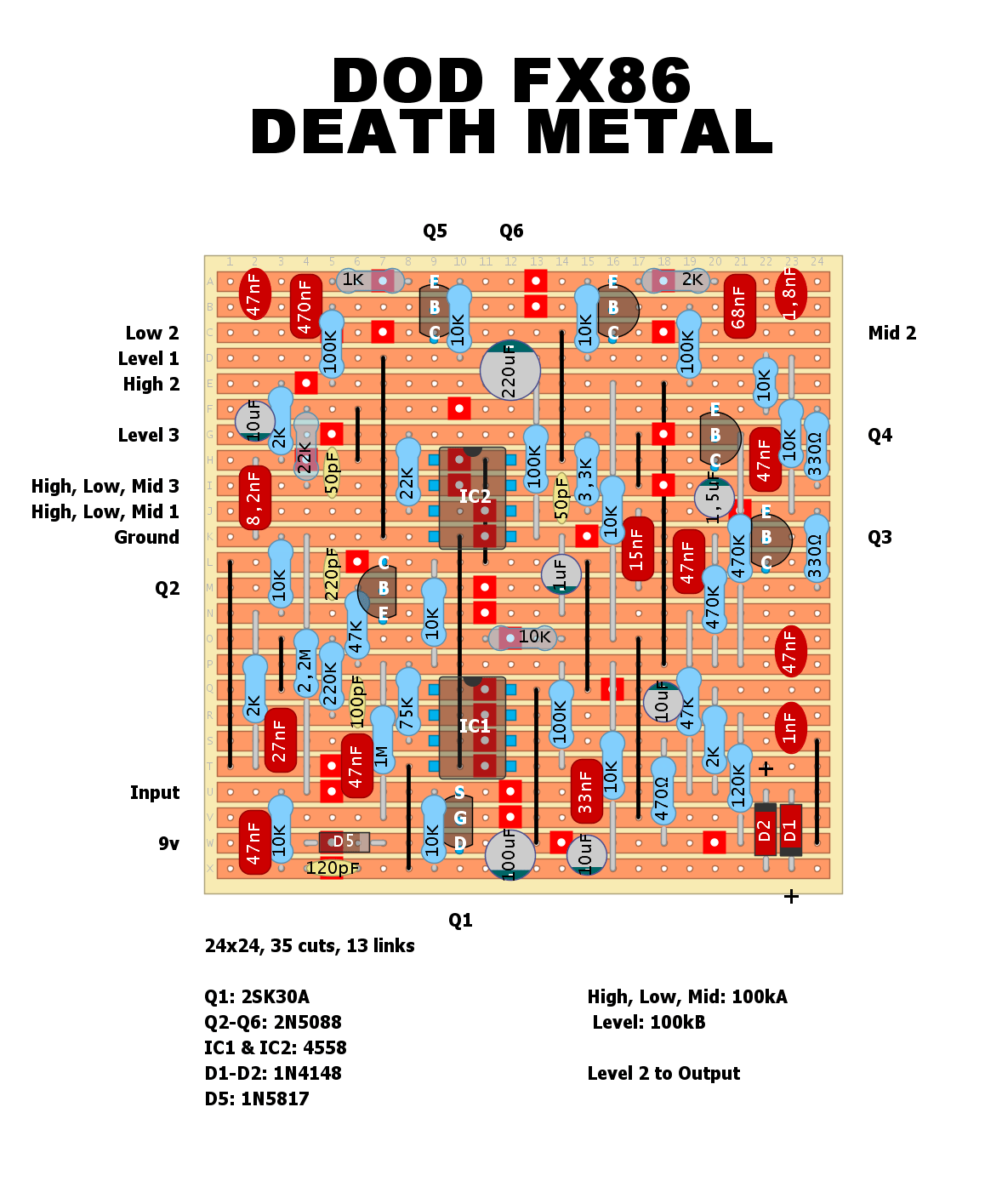

DOD Death Metal Eq
Got a request for this one a while ago. Looks like a more versitale alternative to Boss HM2 eq. original has transistor gyrators but I went with op amps for less space and smaller parts count. Here is demo video by MTK comparing them through a Revv G4 clone.
DOD FX66 Flashback Fuzz
One modification is done; a transistor gyrator (Q4) replaces stock op amp gyrator due to board space.
