Dunlop Band of Gypsys Fuzz Face

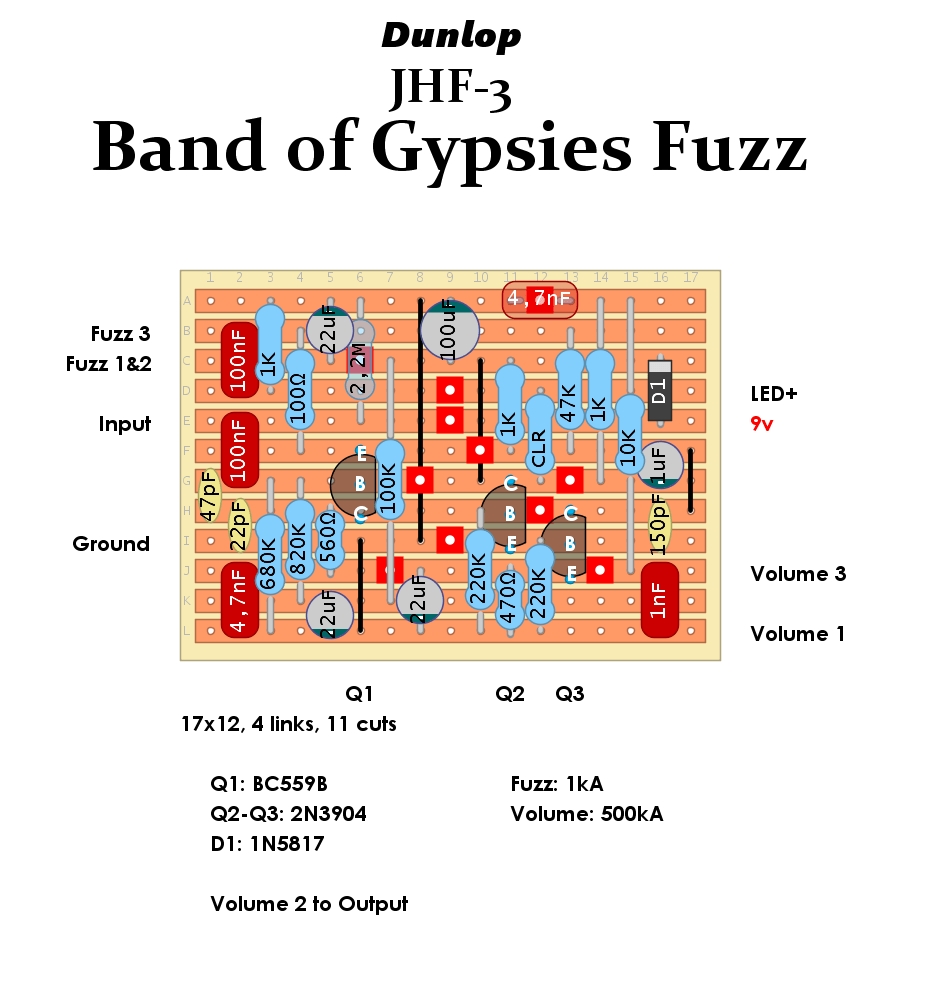

Here’s the Band of Gypsys Fuzz Face from Dunlop for Fuzz Friday. Despite being called a Fuzz Face, the actual circuitry of the Band of Gypsys version isn’t even close to the original Fuzz Face. It’s pretty close to an Octavia without the transformer. Here’s the schematic for reference.
Dunlop Dunlop GBC-95 Modded Crybaby
For those that are just never satisfied by whats out there in the land of wahs I took the standard Dunlop GBC-95 Crybaby and added some features based on common mod points. So how’s this supposed to work? Voice Pot: Changes the voice of the the wah by changing the sharpness and making it more … Read more
Dunlop DB-1 Dimebag Crybaby
The original Dimebag wah, not the newer one, which will take a while to get done cause the board is completely different and based on the newer Q535 crybaby.
Dunlop JC-95 Cantrell Signature Wah
From the source: One of the most influential guitarists to come out of the Seattle rock scene, Jerry Cantrell’s epic riffs and searing tone have been the driving force behind Alice in Chains since the late 80’s. His melancholy wah-drenched melodies in modern classics like “Man in the Box” and “The Rooster” left an indelible … Read more
Dunlop ZW-45 Wylde Wah Crybaby
Figured while i was at it, since there are a few signature wahs that are the based on the same board with a few changes, why not just make post a few other layouts. First up the ZW-45 Wylde Wah. From the source: Modern Cry Baby Master Zakk Wylde and Dunlop have joined forces to … Read more
Dunlop JH-1 Hendrix Wah
I was asked if I could make a layout for the hendrix crybaby, so here she is. not a whole lot different from a regular crybaby. There are 2 additional caps, resistor change, and different value pot. You may be wondering what these changes do, and in short it moves the sweep range lower. I … Read more
Dunlop GCB-100 Bass Crybaby
Dunlop’s classic Crybaby Wah that was modded for use with bass. Not much else to really say about it.
EchoPlex Preamp
The EchoPlex Preamp emulates the input stage on the old EchoPlex EP-3. It provides up to 11dB of gain and is mostly used as an always on pedal to sweeten the user’s tone. If you want to add the volume control, use a 500k pot and connect lug 1 at the junction of the 100n … Read more
