Dwarfcraft Devices
Devi Ever / Dwarfcraft Devices Super Soda Meiser
Very close to a stock Soda Meiser but with a ground lift control (Drone) for the transistors. Schematic is avaiable HERE.
Devi Ever/Dwarfcraft Devices Super Soda Meiser
This one was recently traced on FSB and as i have a soft spot for Devi & Dwarfcraft circuits alone and together, i had to draw it up.. A bit like original Soda Meiser, or at least some revisions of it, but this time with a Chaos switch and a Drone-knob.
Dwarfcraft Devices Eau Claire Thunder V1
Traced by TOFO. This is a layout for the early big box version with three footswitches. It is based on the russian Big Muff but with more gain, reversed tonestack tone bypass switch, switchable and tunable feedback loop and a diode selector switch for the second clipping stage.

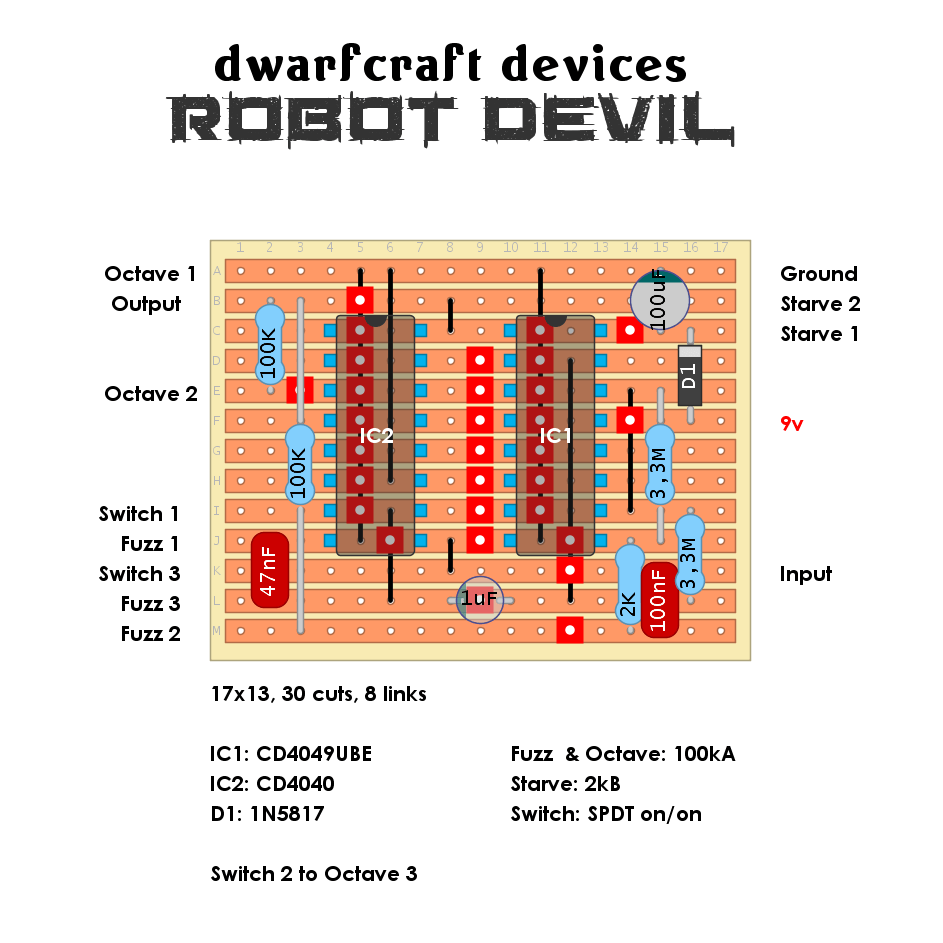

Dwarcraft Devices Robot Devil w. mods
Stock circuit And a modified circuit which has separate volume controls for one octave down and two octave downs. Very useful and combined with the Starve control this thing can get really nut.:o)

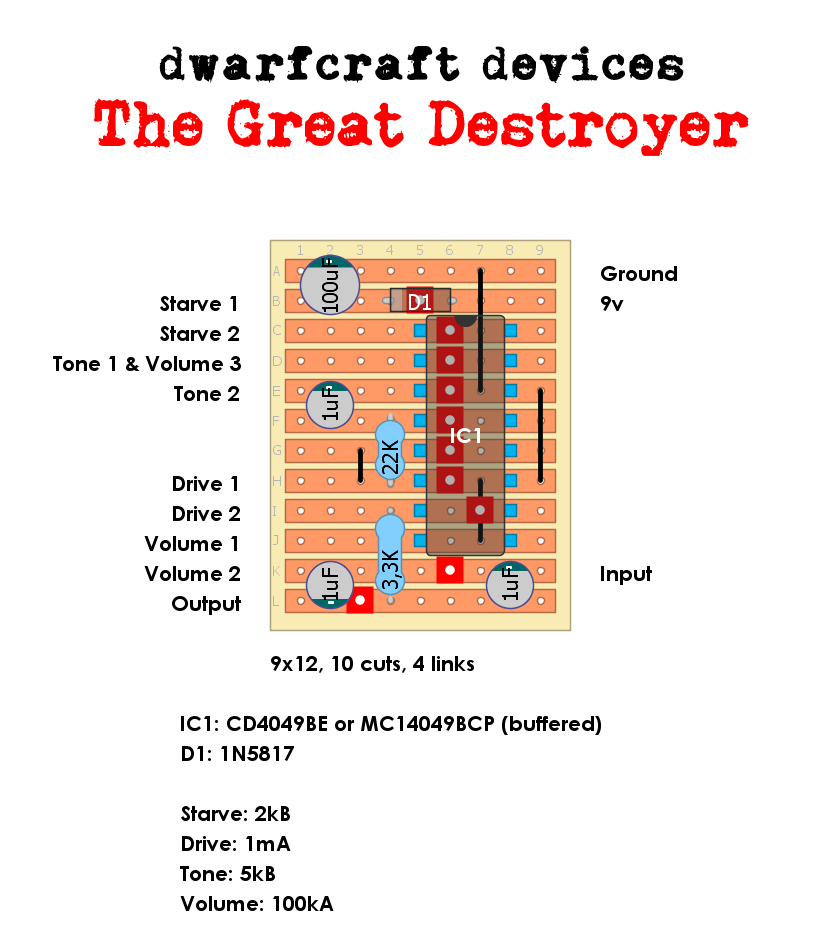

Dwarfcraft Devices The Great Destroyer
Verified by Drago. A word of caution though (thnaks Sesh!), make sure to use a proper CD 4049BE. Some reputable sellers like Banzai Music sells chips that simply wont work as intended.
Dwarfcraft Great Destroyer
Here’s a fun sputtery beast for Fuzz Friday. Like many of Dwarfcraft offerings, this ones got a lot of character and goes from fuzz to experimental with just a few knob turns. I’ve laid it out so you can fit it in a 1590B long-ways (much like a zVex pedal). Here’s the schematic for reference.
Dwarfcraft Shiva
This week’s Fuzz Friday layout is the Dwarfcraft Shiva. It’s a unique fuzz that can deliver wicked, buzzy fuzz tones. The toggle switches turn on and off LEDs in the 2nd and 3rd stages of the circuit, and the Starve switch bypasses the Starve pot. I’ve laid it out to fit in a 1590B if … Read more
