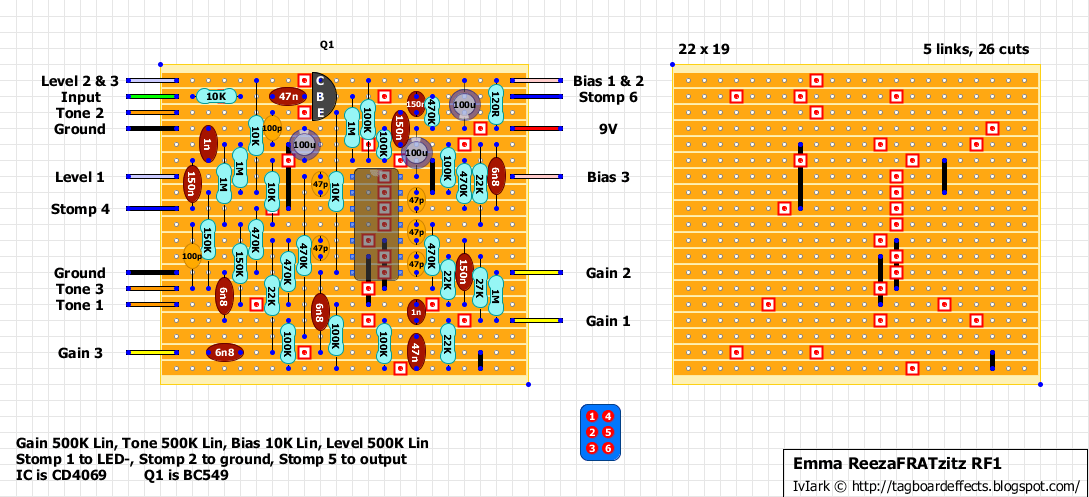

The ReezaFRATzitz is a high gain overdrive/distortion circuit based around a CMOS chip, most likely a CD4069N or 74HCU04. This layout reflects a modded version by FreeStompboxes member thn.technik with added Bass and Mids controls. Here’s a link to his schematic and build pics. You might be able to squeeze it into 1590B, but you’d … Read more

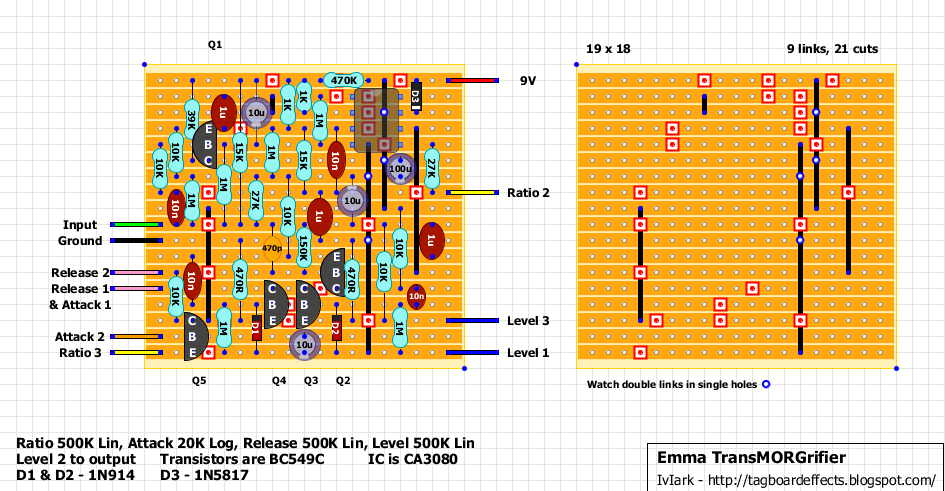

Requested by a few people. Horrible to do a layout for because of multiple cascading stages with close connections from a 14 pin IC which means you can quickly run out of space, but managed to work my way through it eventually. At 22 columns wide it will just fit in a 1590B if you … Read more
Info about the original pedal: A compressor pedal incorporating the best attributes of classic pedals while simultaneously eliminating the shortcomings common to such vintage designs. Included are controls for the adjustment of Attack, Release, and Ratio that allow the user precise and continuous variation to their sound. These controls offer the ability to custom tailor … Read more
