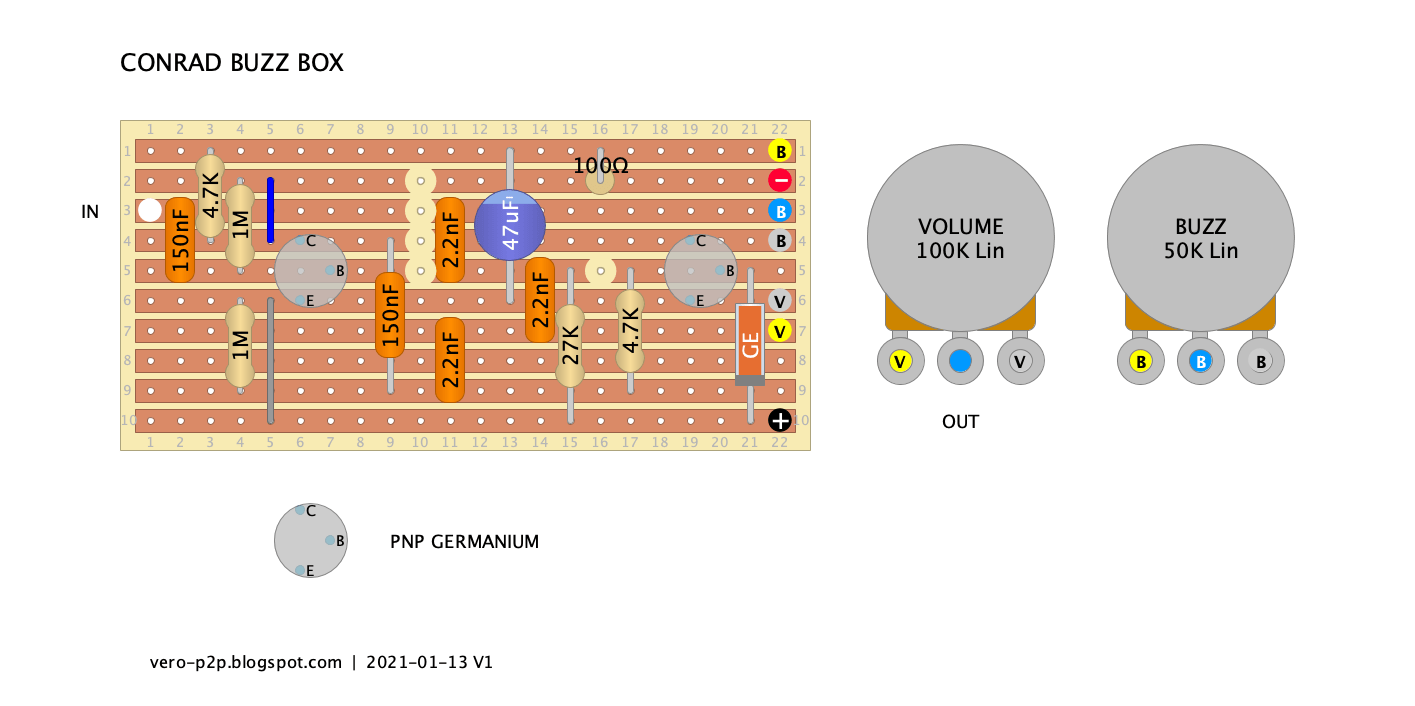

Another simple one – the Conrad Buzz Box and Volume Expander – there is no volume expansion happening; this is just fuzz. This is an easy one to convert to NPN, and there’s quite a bit of discussion on the usual forums re transistors. Good results have been seen with low-gain silicon in Q1, and germanium … Read more

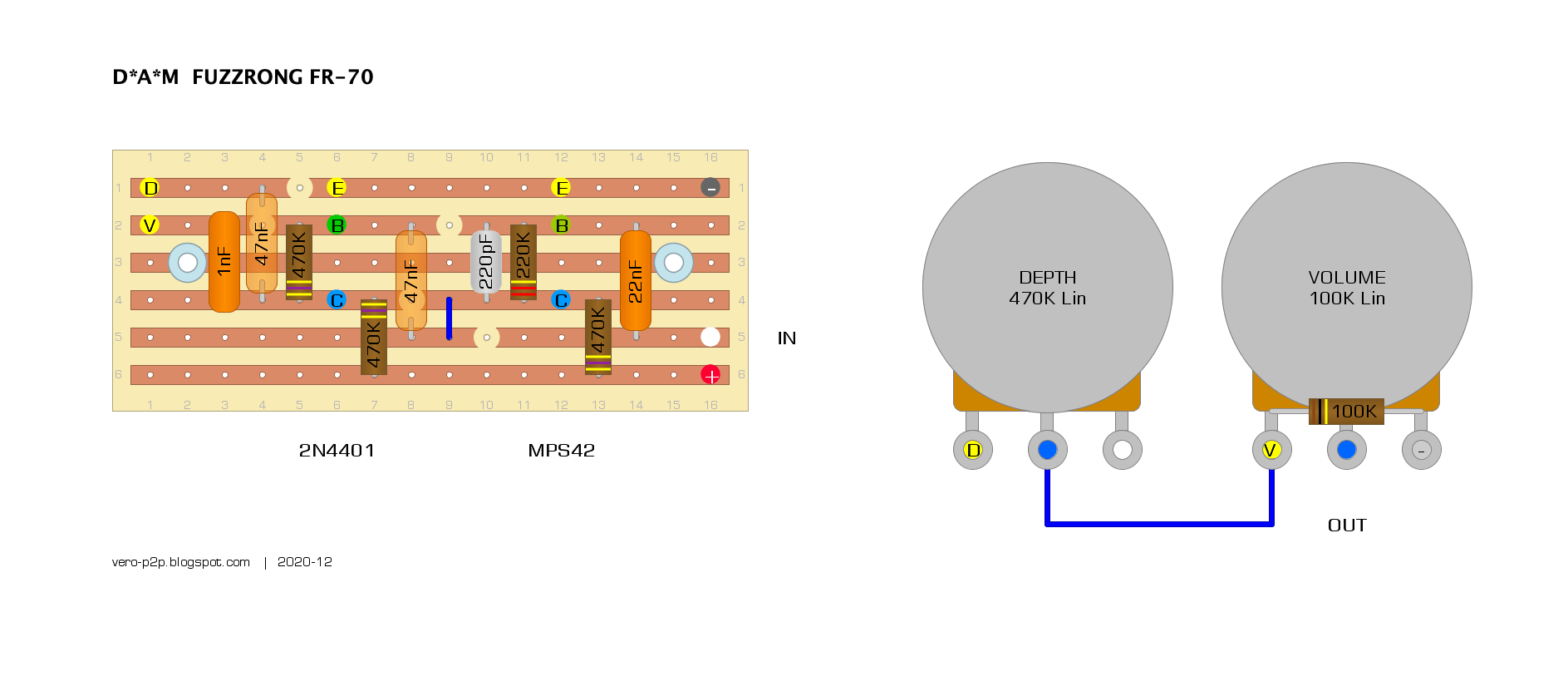

Unlike the D*A*M Fuzzrong FR-69, which is very much a straight germanium Fuzzrite, the D*A*M Fuzzrong FR-70 is a little different. It’s a version of the Rosac Nu-Fuzz, which was designed by Ed Sanner, the designer of the Fuzzrite. There are a some changes with component values, but you are basically looking at the bones … Read more
This is the layout that D*A*M used for the Fuzzrong FZ-69, which is essentially a germanium Fuzzrite. I couldn’t make out the pot values or the 2n2 cap values on the photos I could find, so will have to take this at face value. D*A*M FUZZRONG FR-69 – VERO LAYOUT

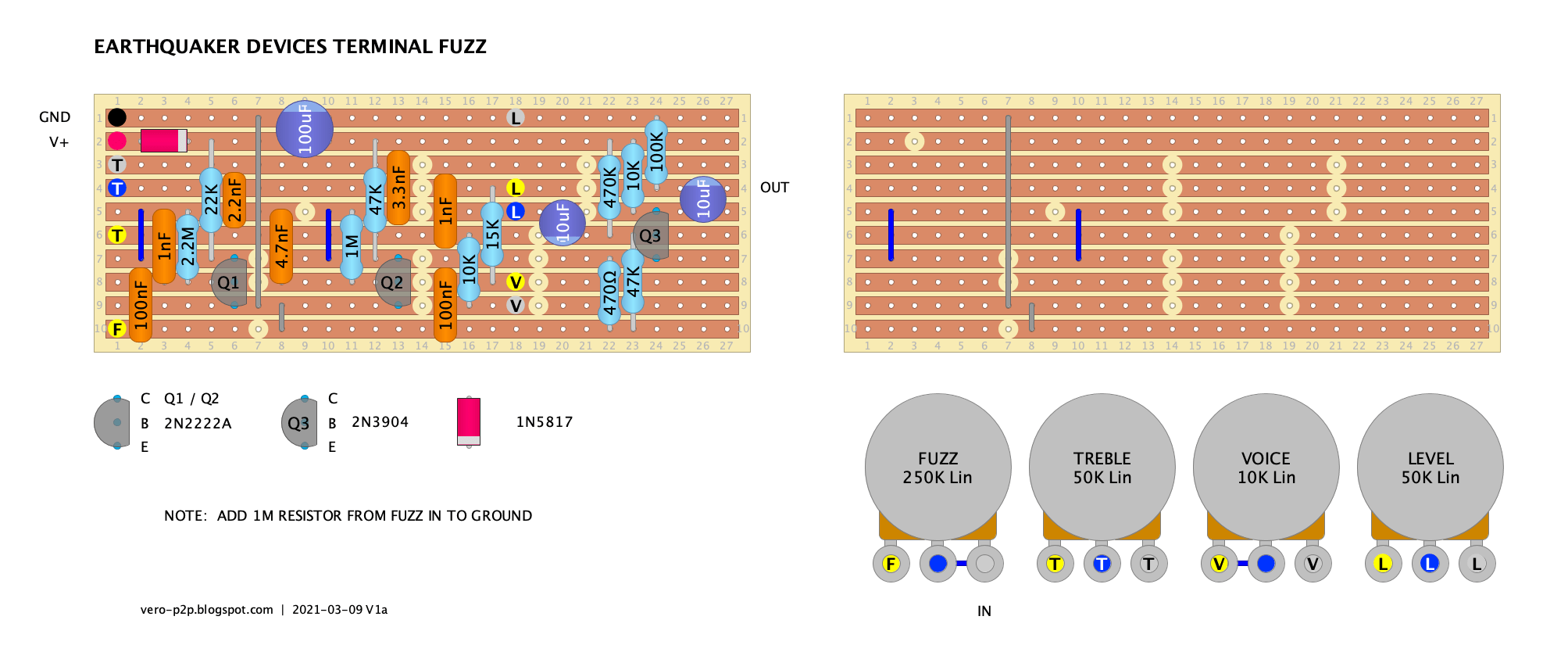

The Earthquaker Devices Terminal Fuzz is based on the Shin-Ei Companion Fuzz, with a few tweaks to improve performance and versatility. The first section is actually a lot like a silicon Fuzzrite. Q1 feeds directly into Q2 – they feed into either side of the treble control with quite small capacitors. The treble pot is followed … Read more
The Ghost Effects Lunar Incantation is part Mosrite Fuzzrite and part Rosac Nu-Fuzz – what a combination… time to break out some NOS low-gain silicon transistors? Maybe not. BC108s will be fine; probably anything with lowish gain that’s NPN silicon will do. Ghost Effects recommend 150 to 300hfe, with the second transistor having a higher … Read more
This is an early two knob Guild Foxey Lady, which is very similar to a silicon Mosrite Fuzzrite. However it’s different to other schematics I have seen online – I traced this from the circuit shown below – it’s easy to make out part values, excluding the pots and transistors. I left some room for power … Read more

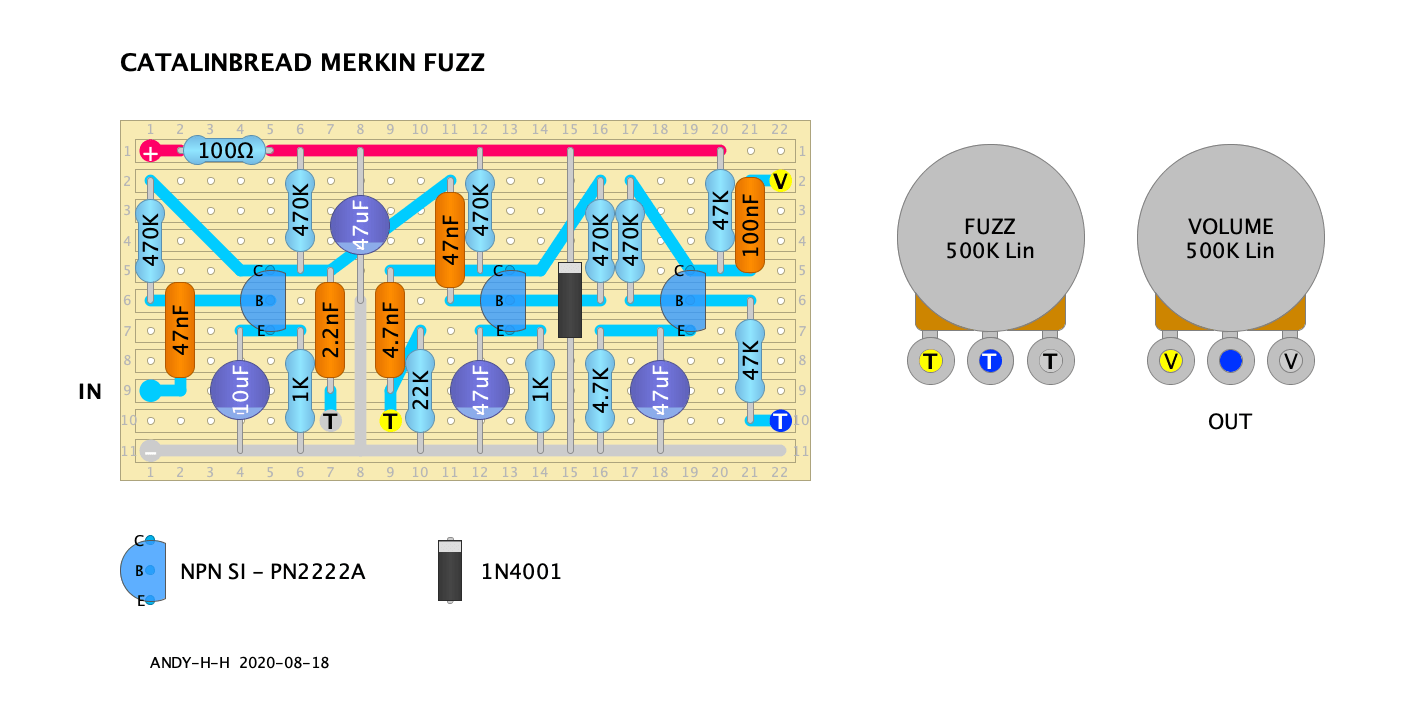

The Catalinbread Merkin Fuzz is their take on the classic Mosrite Fuzzrite, but with a few changes in values and a boost section at the end. Now I know a lot of guitar pedals have some odd names, but a Merkin Fuzz? Really??? Google it…. CATALINBREAD MERKIN FUZZ – POINT-TO-POINT LAYOUT
More two transistor fuzz mayhem – this is the later V2 silicon Mosrite Fuzzrite. If you happen to have an excess of 470k resistors, this one’s for you. MOSRITE FUZZRITE – VERSION 2 – SILICON POINT TO POINT LAYOUT FUZZRITE – WORK IN PROGESS ON THE BENCH Using slightly different parts than on the layout … Read more
The Orpheum Fuzz is a germanium Fuzzrite with larger capacitor values. Bigger caps, so a little less abrasive than the Mosrite. This was sold under a few different names, my favourite being the Wurlitzer Fuzzer Buzzer. ORPHEUM FUZZ | POINT-TO-POINT LAYOUT
