D*A*M: FUZZrong FR-69

This is the layout that D*A*M used for the Fuzzrong FZ-69, which is essentially a germanium Fuzzrite.

I couldn’t make out the pot values or the 2n2 cap values on the photos I could find, so will have to take this at face value.

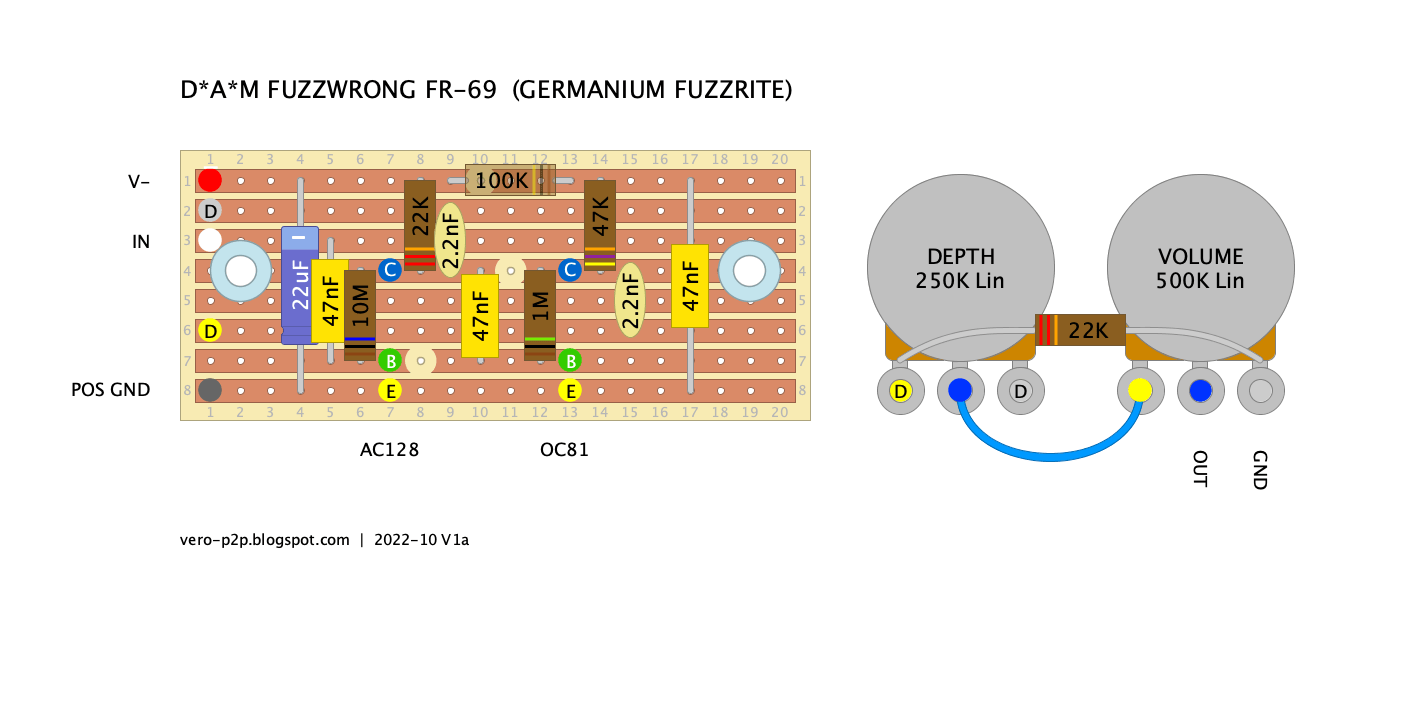

D*A*M FUZZRONG FR-69 – VERO LAYOUT

D*A*M FUZZRONG FR-69 - VERO LAYOUT
