SOLA SOUND: Tone Bender MK1.5, Point to Point Layout

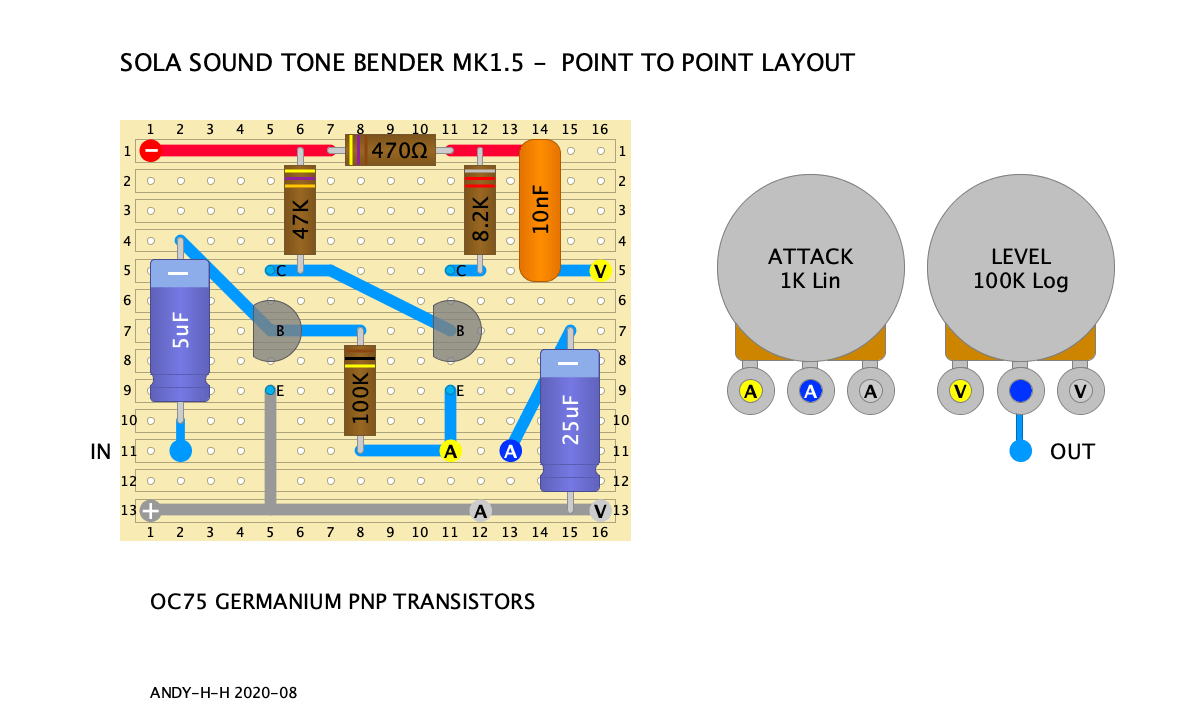

SOLA SOUND Tone Bender MK1.5 P2P 7e4dc37577df

The mysterious Sola Sound MK1.5 Tone Bender, which is pretty much a Fuzz Face, or a Fuzz Face is a MK1.5 Tone Bender – either way… just don’t try and bias it like a Fuzz Face. You can the find history of the Tone Bender on Kit Rae’s Big Muff Page and also on David Main’s (D*A*M) … Read more

BALDWIN-BURNS: Buzzaround, Point to Point Layout

BALDWIN BURNS BUZZAROUND P2P MOJO b61612502af9

So yet another variation on the Tone Bender MKIII…   but which one came first?   This quite possibly predates the Sola Sound Tone Bender MKIII, and was supposedly designed by Gary Hurst. The originals were built on tagboard, and you can find a very accurate replication of this here NTK213 transistors aren’t essential – like … Read more

MOSRITE: Fuzzrite (germanium), Point to Point Layout

MOSSRITE Fuzzrite 2020 07 28 P2P GE dc8aa33107fe

The Mosrite Fuzzrite – two transistor fuzz mayhem.  This is the earlier germanium version.   MOSRITE FUZZRITE – VERSION 1 – GERMANIUM POINT TO POINT LAYOUT   MOSRITE FUZZRITE GERMANIUM ON VISUAL ANALYSER INPUT SIGNAL: 440hz sine wave.  130mv TRMS   Q1 Q1 is an OC75 – very leaky and high gain (can’t recall the exact … Read more

SOLA SOUND: Tone Bender MKIV, Compact Point to Point Layout

TB MKIV P2P SMALL 00ebe6c9f7b4

A slightly smaller point to point layout for the Sola Sound Tone Bender MKIV than the other in my post (for bigger mojo parts).   Of course you can build any Tone Bender MKIII or MKIV from this layout.    SOLA SOUND TONE BENDER MKIV – COMPACT POINT TO POINT LAYOUT  NOTE: voltages shown are … Read more

MARSHALL: SupaFuzz, Point to Point Layout

MARSHALL SUPA FUZZ 9462e6633db0

Basically the Marshall Supa Fuzz is a Sola Sound Tone Bender MKII, but with some different capacitor values and it uses Mullard OC75s for all three transistors.  It sounds killer, and cleans up really nicely using the volume control on the guitar.  When you hear the fuzz, it’s hard to imagine the clean sound, the fuzz … Read more
