King Tone

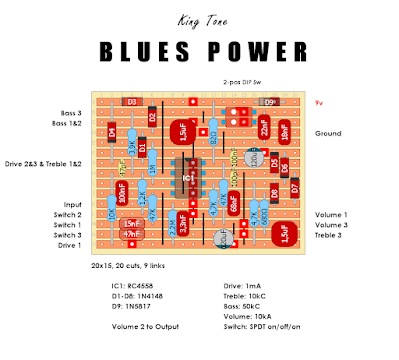

While slowly coming back from an eye surgery, I can sit infront of screens again, at least for for short  periods of time, I whipped up a layout for the newly traced Heavyhand. It is basically a tweaked Bluesbreakerwith some extra features and sauce. Schematic is avaiable HERE.

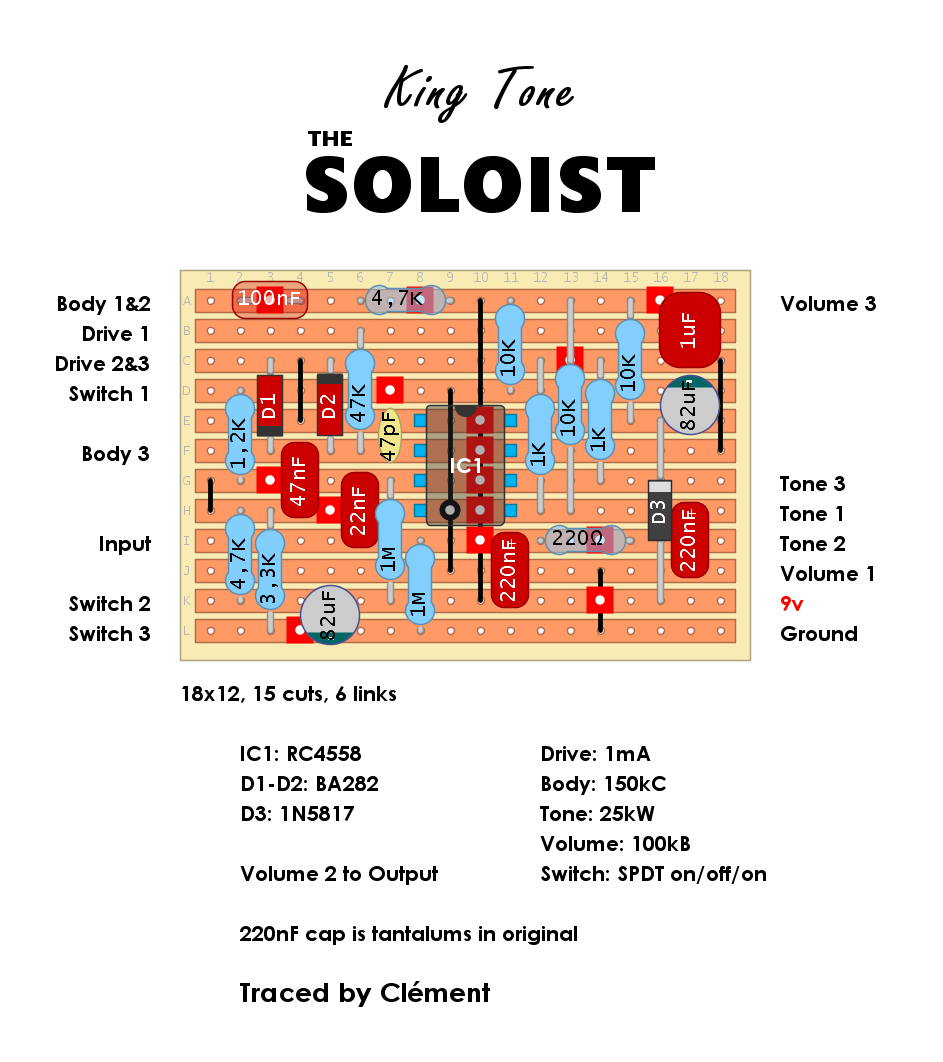

 Requested quite a few times. Clémtent got hold of one for a repair and while he was at it he traced it and drew a schematic. He even built a clone and it sounds spot on. Note that both 220nF caps are tantalums in the real units but film caps will sound identical.     … Read more

Schematic is avaiable HERE.
