Probably two of the most hyped Tube Screamer clones around. The only real difference between the Dynamic Overdrive and a TS808 is the clipping switch, offering symmetrical red LEDs, diode lift, and asymmetrical silicon diodes. The Clay Jones Overdrive is mostly the same, just without the clipping switch (just LEDs), and a Burr Brown OPA2134 … Read more

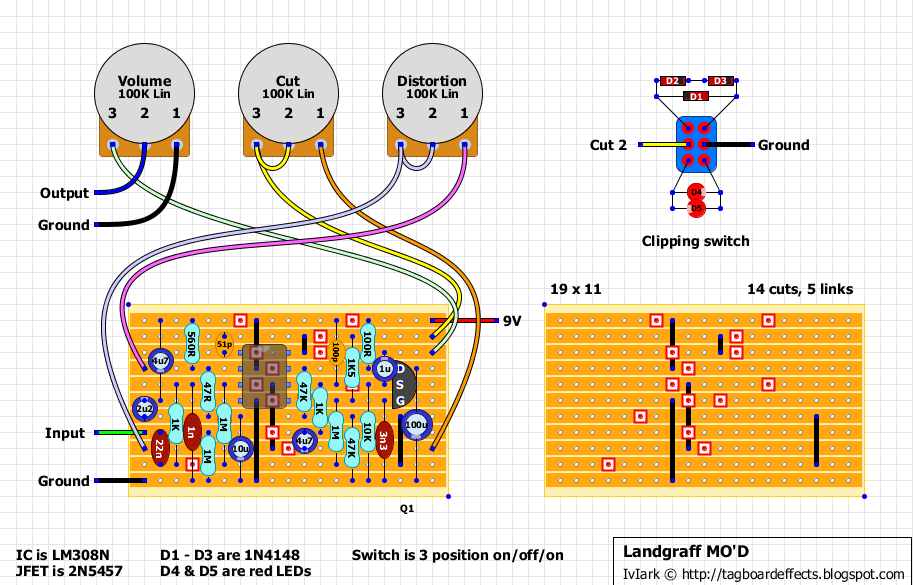

Should be pretty obvious what this one is based on but people rave about it and it does have subtle differences in the schematic, not least of which the clipping switch, that will make this one a worthwhile build. I’m not sure if this is the official John Landgraff’s description of the pedal, but it … Read more

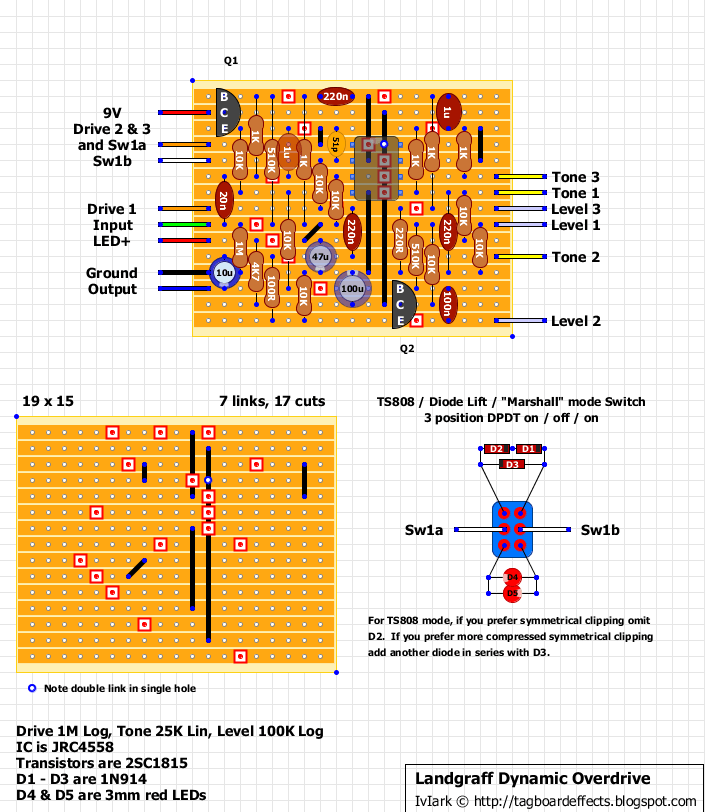

The ultimate souped up and mojo’d TS808? Comes with free absolution with every pedal, and don’t forget the carbon comps, Tropical Fish caps and silver solder! Stock version using 2SC1815 (BCE) transistors: Version using more modern and easily obtainable CBE transistors: Updated 12th August 2014 New more compact layout added using the more modern CBE … Read more
The Landgraff Super Hard On: Updated 24th December 2012 Mojo version for axial components and 1/2W carbon comps added
OK so I don’t want to use tagboard all the time so here’s a few vero layouts I’ve done recently. I like axial caps so most have been done with those in mind. Mosrite Fuzzrite Landgraff Boost Electro Harmonix LPB1 Fuzz Face PNP Fuzz Face NPN
