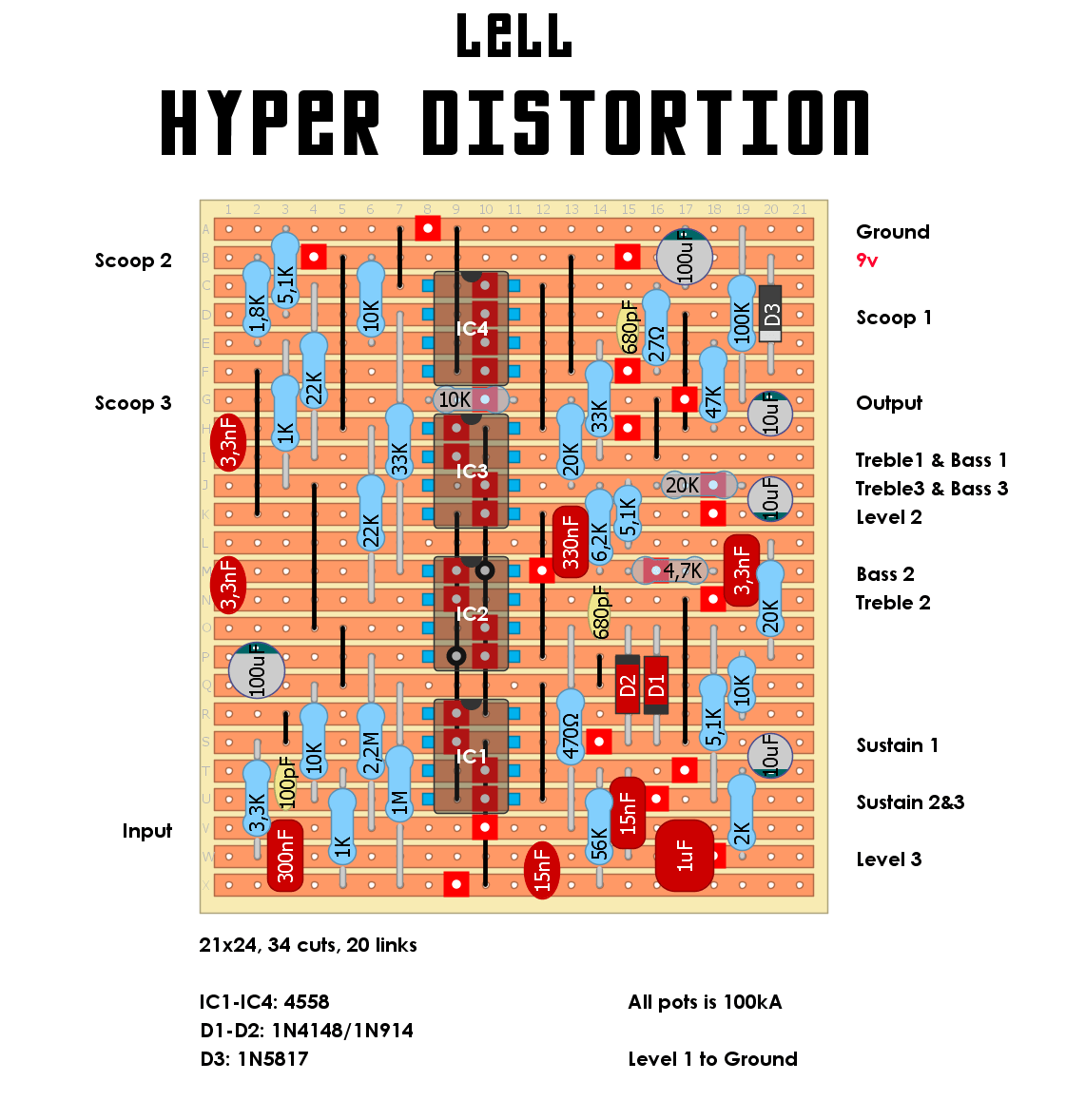

An old russian Boss MT-2 derivate. The eq section and the general topology is pretty close to the original. But cap and resistor values differs quite a lot in most places and the gain control looks like it is borrowed from a Boss DS1.
A 3 band parametric eq from the Soviet Union, anyone? Electronic switching is removed and op amp is altered for normal 8 pin DIP package which replaces the odd dual op amp 14 pin DIP package. As for R28 which is connecting across the output of the last op amp and ground, the schematic simply … Read more

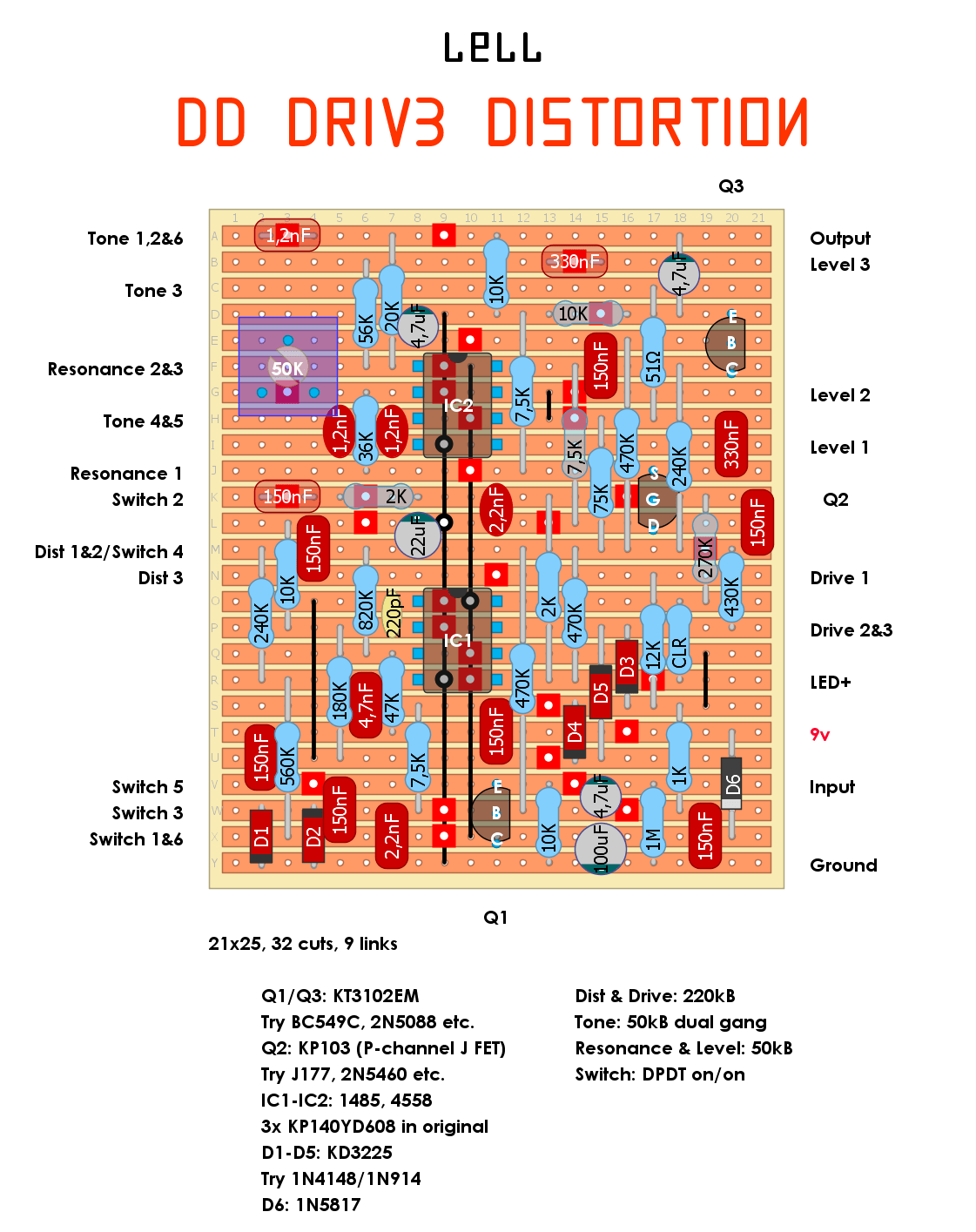

Schematic avaiable HERE The switch appears to a on/off selector for the distortion section so it can be used as a stand alone eq pedal as well.
Schematic avaiable HERE Note that pot lug numbers isn’t labelled in the schematic. And the pot tapers is unknown but my best guess is that they are linear. This one seems to be a treble booster/light overdrive with a tonestack somewhat related to a parametric eq.
