Mid-Fi Electronics Random Number Generator

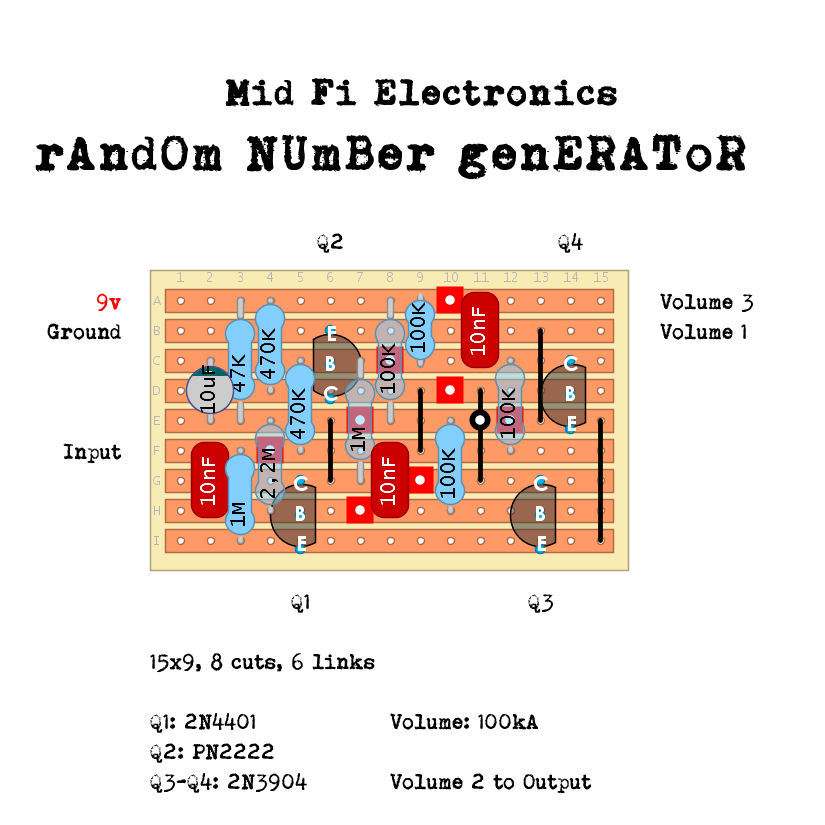

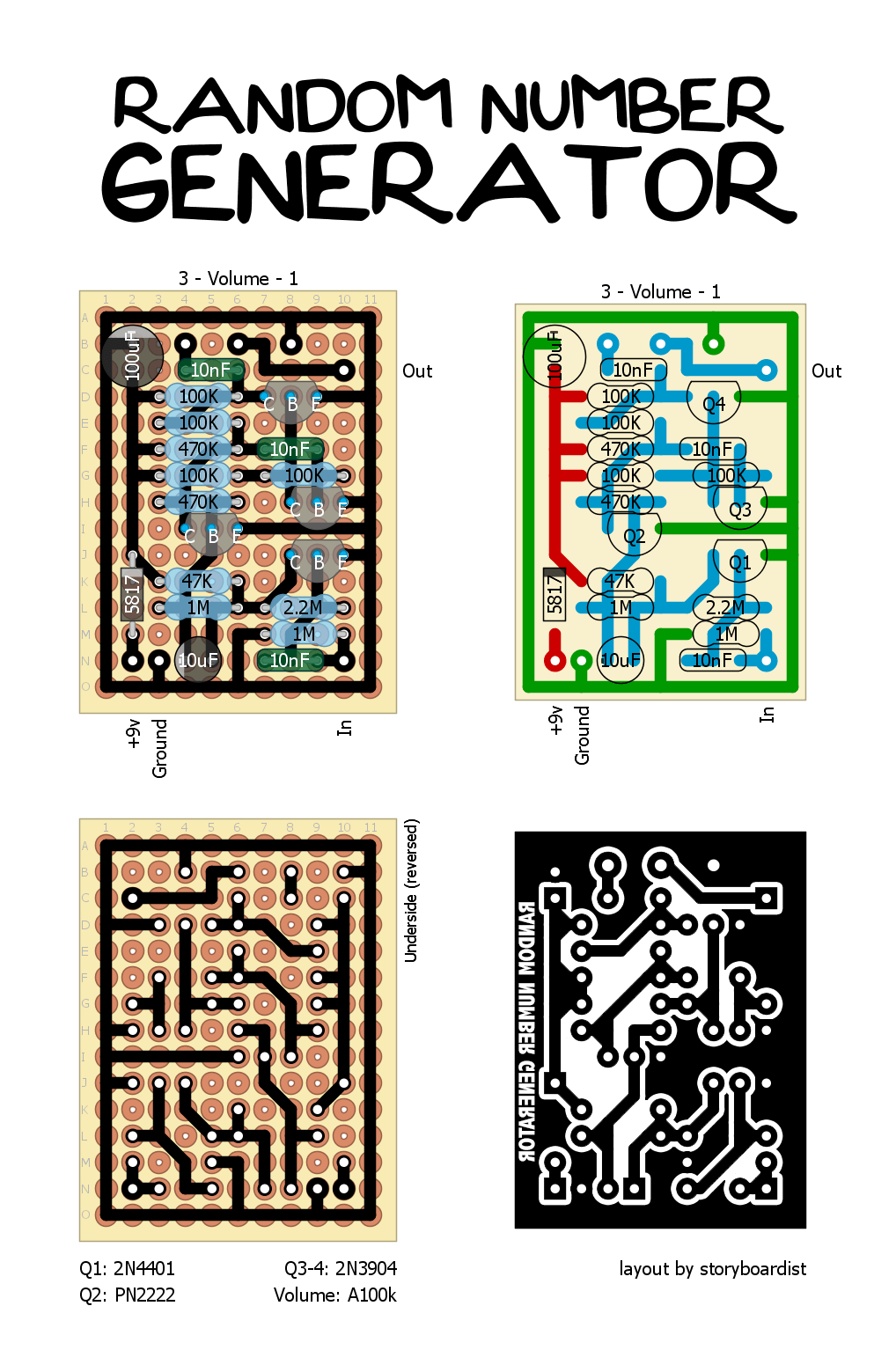

Happy Fuzz Friday, all! Here’s a fun noise maker that should go together pretty easily. Schematic for reference.
Mid-Fi Electronics
Mid-Fi Electronics Pitch Pirate
Here’s the Pitch Pirate with board mounted pots. Like the Deluxe version, the LFO is designed to be grounded when the effect is turned on (hence the pad at the top of the board). Just use the true-bypass wiring diagram in the General Layout Notes and leave out the LED wiring. Then just connect the … Read more

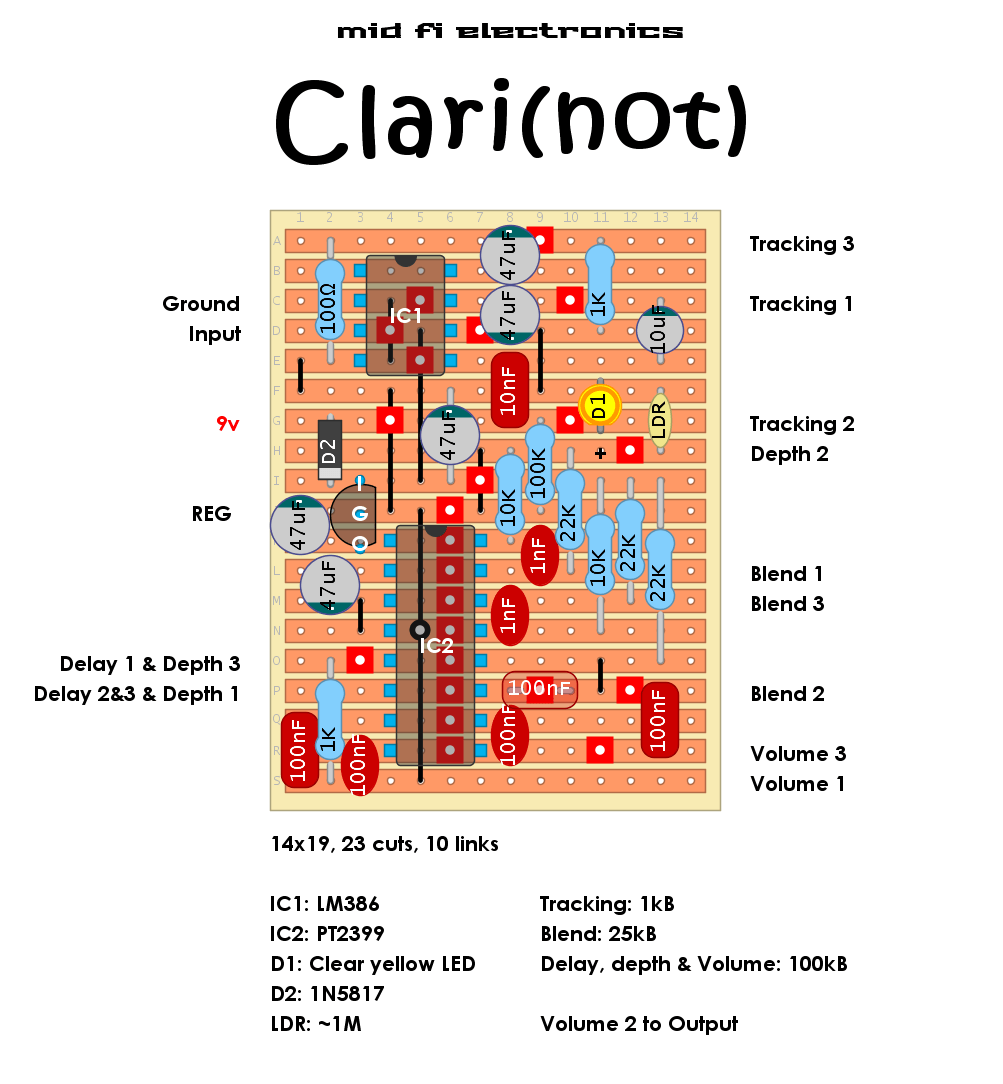

Mid-Fi Electronics Clari(not)
Here’s the Clari(not) from Mid-Fi. It’s a delay/vibrato/fuzz… thing that’s pretty cool, and the sibling of the Pitch Pirate Deluxe. It uses an LM386 amplifier that pushes a fairly standard PT2399 delay and an optical vibrato. I’ve laid it out for on-board pots mounted from the solder-side and you should be able to squeeze it … Read more

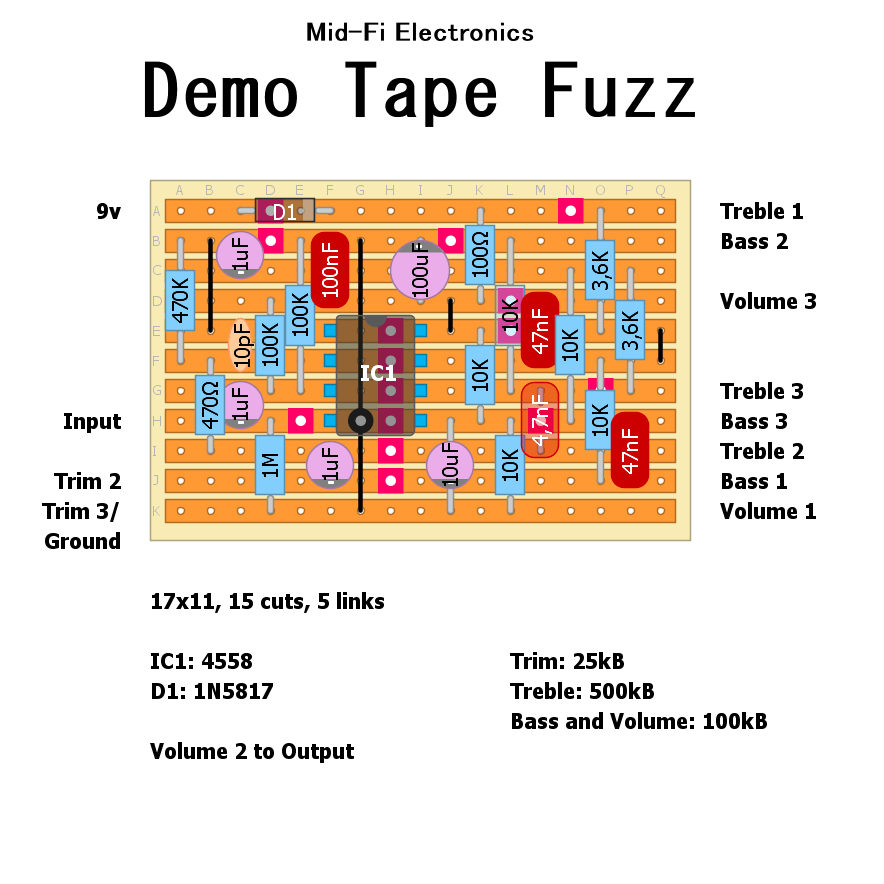

Mid-Fi Electronics Demo Tape Fuzz
Here’s a pretty unique fuzz from Mid-Fi. Built around a dual opamp, the Demo Tape Fuzz recreates the sound of a guitar being played directly into an old 4-track cassette deck. It features a 2-band EQ in addition to the Volume and Trim (gain) controls. I’ve laid it out for board mounted right angle PCB … Read more
Mid-Fi Deluxe Pitch Pirate
This was a request from my friend Cody from They Remained Silent blog. The Pitch Pirate is a vibrato/chorus pedal, and the deluxe version adds a PT2399 based delay. It also has the ability to modulate over an octave as well as control the waveform of the modulator, giving you a huge range of tonal … Read more
