Noel

Noel Victoire

13 Jun 202613 Feb 2024 by chords

Noel Victorie beb1bd773be7

Schematic is avaiable HERE.

Categories Uncategorized Tags dirtboxlayouts, Fuzz, Noel, Overdrive, Verified Leave a comment

Noel Voile Vowaru

13 Jun 202613 Aug 2023 by chords

Noel Voile ccb1230f39eb

Schematic is avaiable HERE.

Categories Uncategorized Tags dirtboxlayouts, Fuzz, Noel, Overdrive, Verified Leave a comment

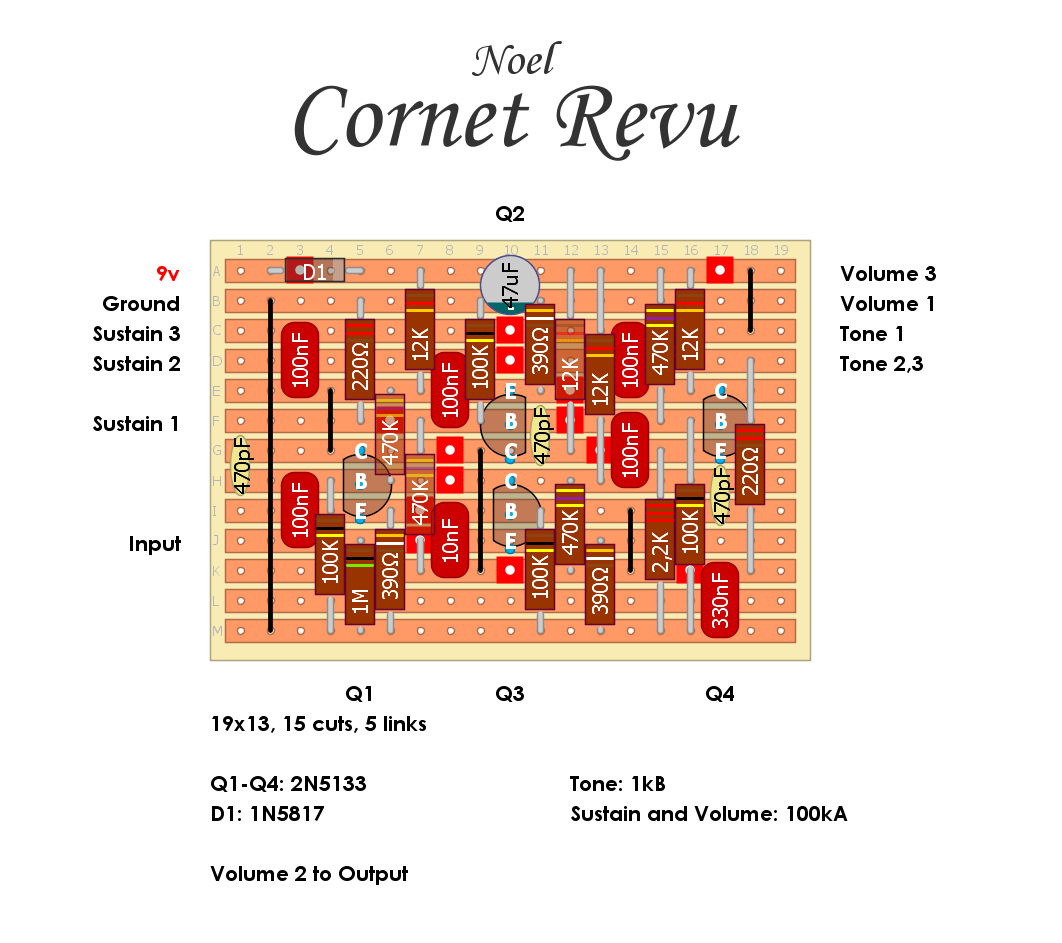

Noel Cornet Revu

13 Jun 20262 Aug 2019 by chords

Noel Cornet Revu 71fcaf35cf5f

Categories Uncategorized Tags dirtboxlayouts, Distortion, Noel, Overdrive, Verified Leave a comment
