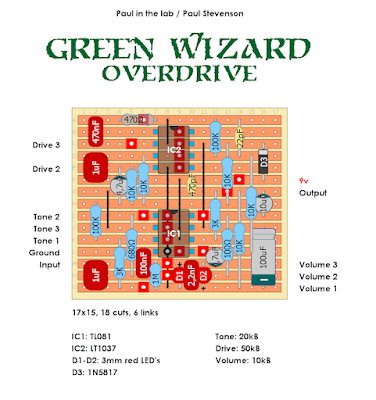

Paul in the Lab Green Wizard Overdrive

4 Jun 202619 Jul 2019 by chords

AVvXsEjNKg4wFCQiEaCRsnEE8b208K803qLB2uNe8bOdii58mzSwNSFCIZeMITK6ilP209f0Ofs7FTWXGg8jOL7tPzuAJcNLLey MLRoNsDezerAiPDKsXUER6OD7t80SUJPLXWdej35 40349f13d9bd

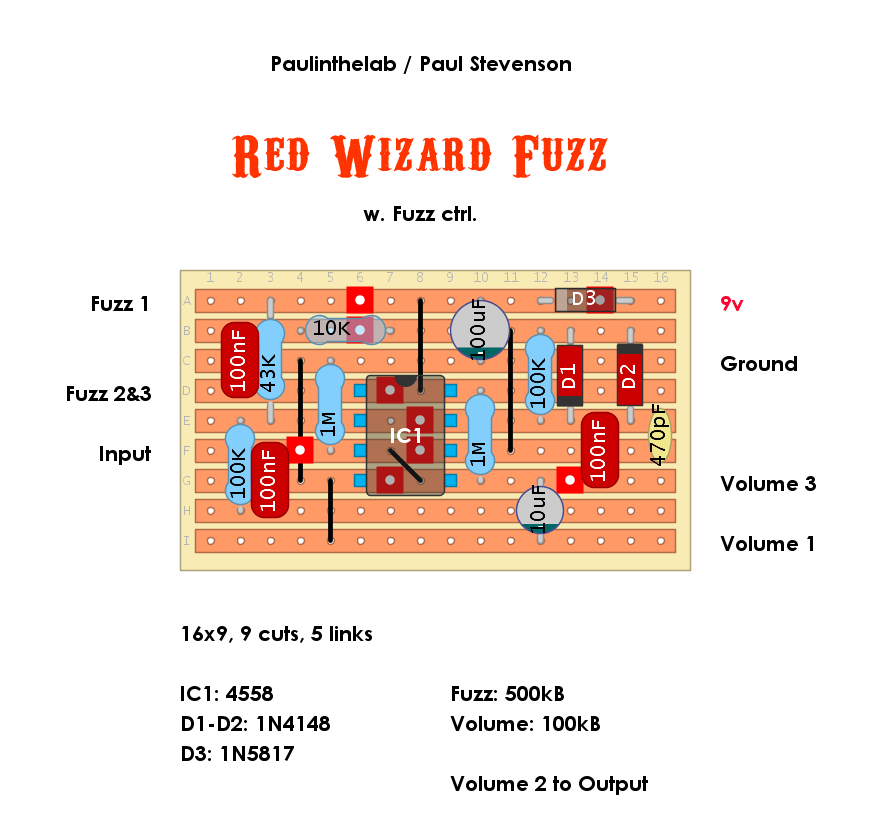

Paul in the Lab Red Wizard Fuzz

4 Jun 202619 Jul 2019 by chords

Another good sounding little circuit. Basically what a Muff Fuzz should sound like. I added a gain control for more versitality.

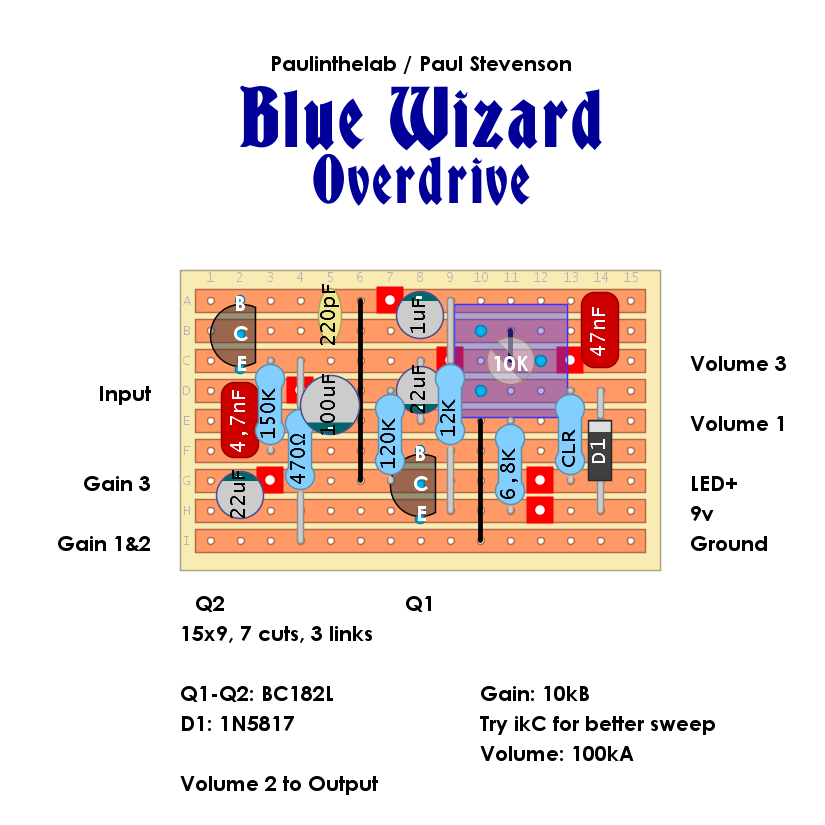

Paul in the Lab Blue Wizard Overdrive

4 Jun 202618 Jul 2019 by chords

Great sounding little circuit capable of crunchy distortion tones although it has fuzz face topology. I highly recommend a 1k reverse log pot for the Drive control and log taper for the volume control since it’s stupiditly loud. Just mind the pinout of the transistors!
