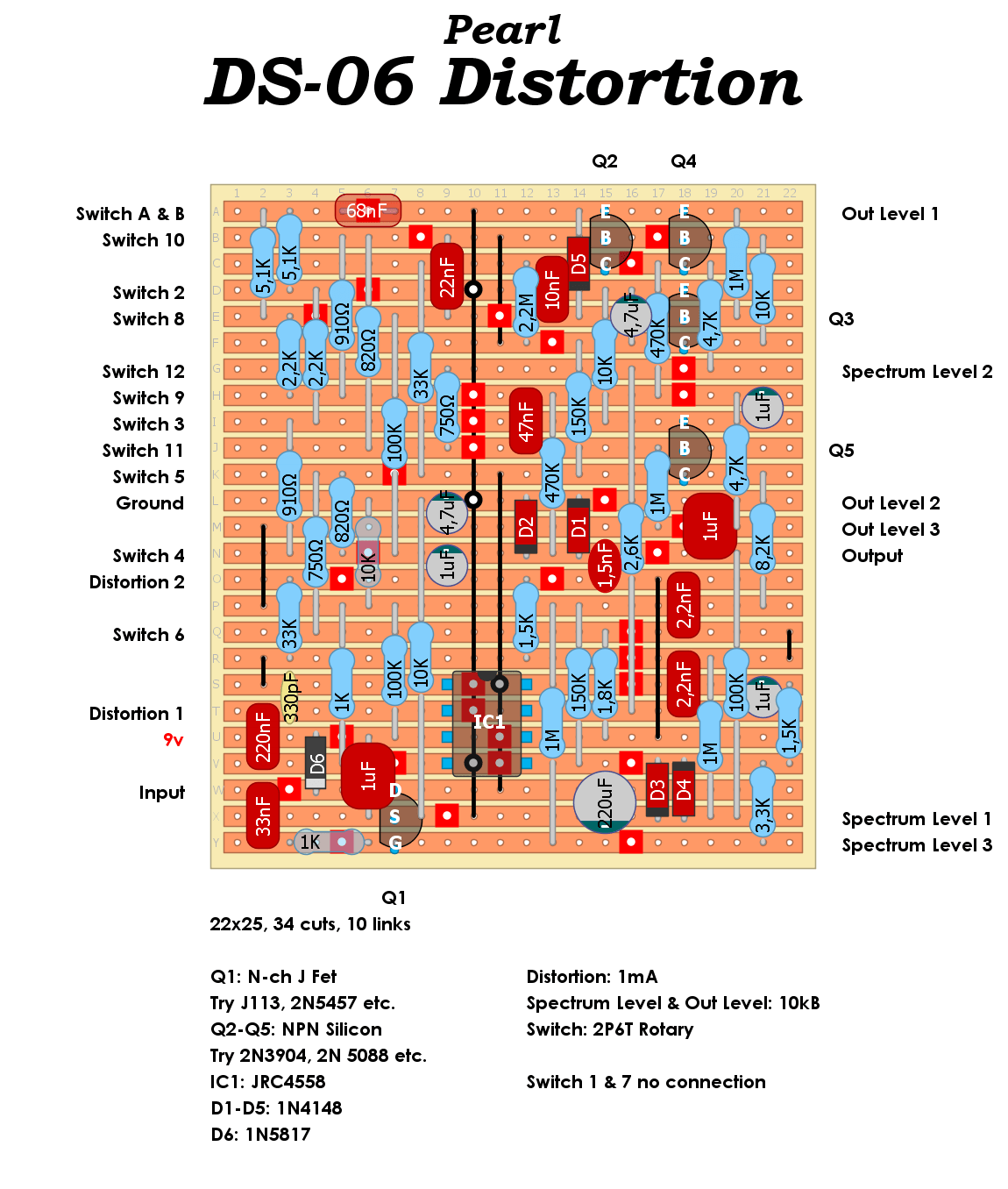

Pearl DS-06 Distortion
Two layouts, one stock with a rotary switch and another layout by request which has a dual gang pot in place of the switch and the fixed resistors. Stock layout Layout with variable Spectrum Control L
Pearl
Vorg F-502 Warp Sound
This is a buffered effect, input and output connections is connected to input and output jacks respectively.
Pearl/Vorg Warp Sound
Here’s a rare one that came in via the request folder. It’s a distortion/filter effect. Used live by guitarist Kevin Sheilds from My Bloody Valentine on “Sometimes,” this might be a must-build for shoegazer fans out there. Here’s a demo video of a clone with the 100k trim pot wired externally as a distortion control … Read more
