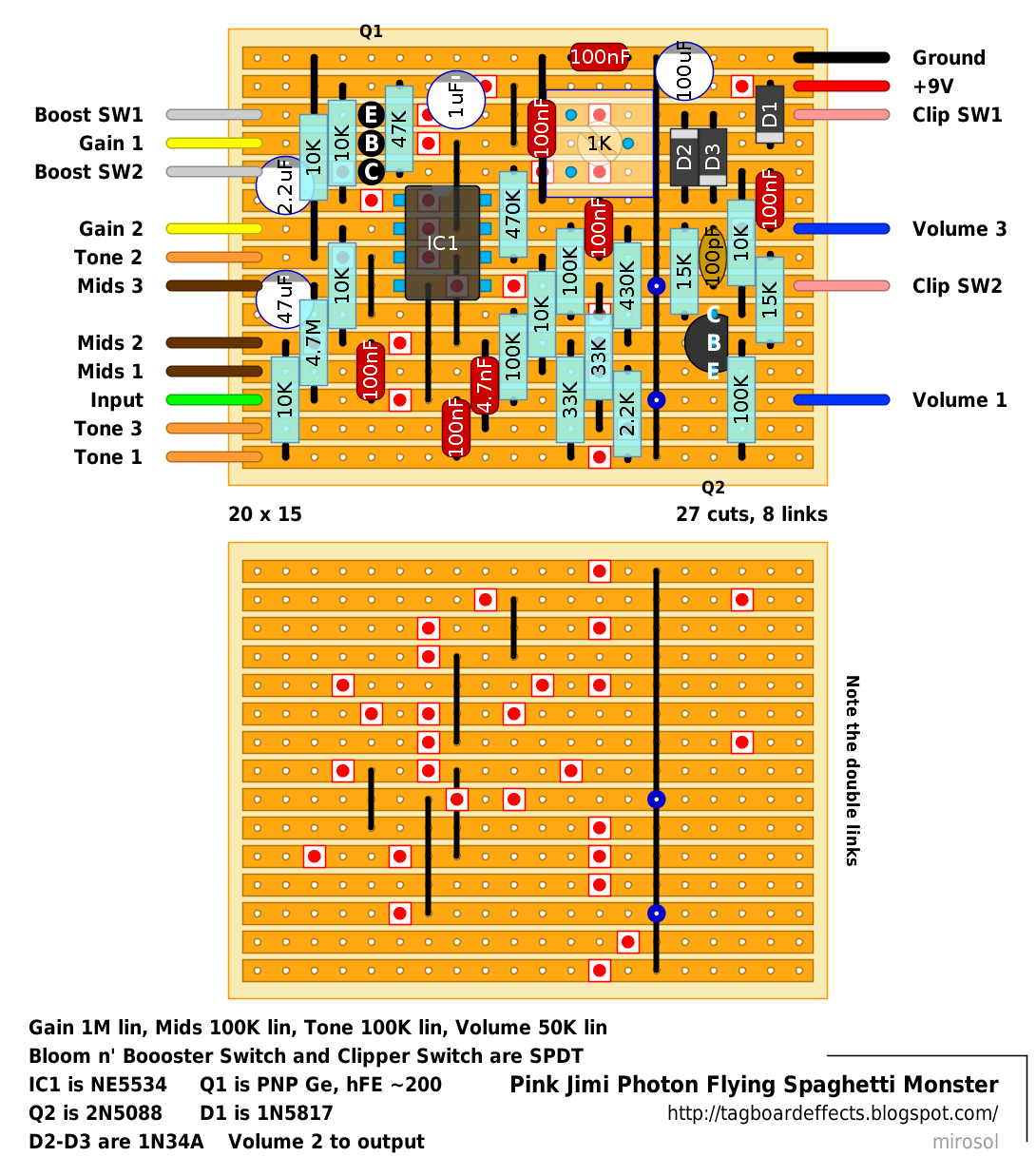

Pink’s latest original. It’s suggested that “Bloom n’ Boost” switch should be taken as a stomp. And you should probably play around with the clipping diodes too. The feedback loop transistor reportedly needs to be a high gain PNP Germanium for the circuit to work right. Don’t know about you guys, but i’m going to … Read more
Another great sounding quicky from Jimi, no pots or toggles and so a nice 1590A build, although I’m sure Javi will manage to get it in a thimble :o)

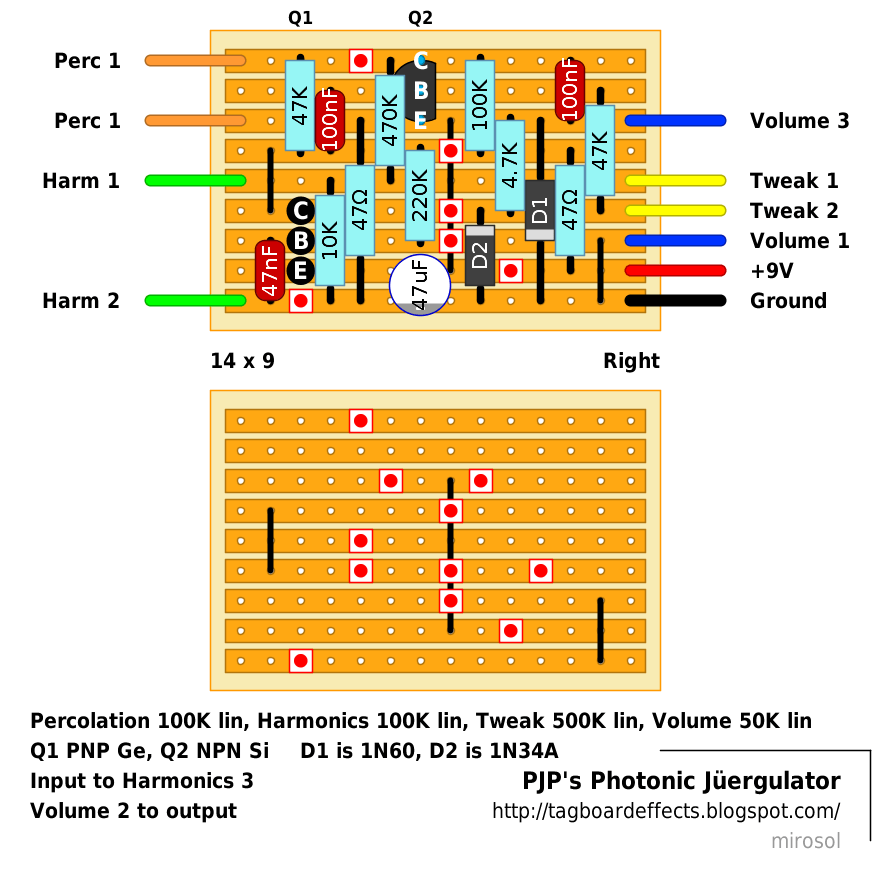

Pink Jimi Photon’s take on Interfax Harmonic Percolator and Escobedo’s Jerkulator. Read maestro Photon’s complete description on FSB. rock the f**k on!! the vid/audeo is outta sync, too…..arrrrgh who needs LSD?

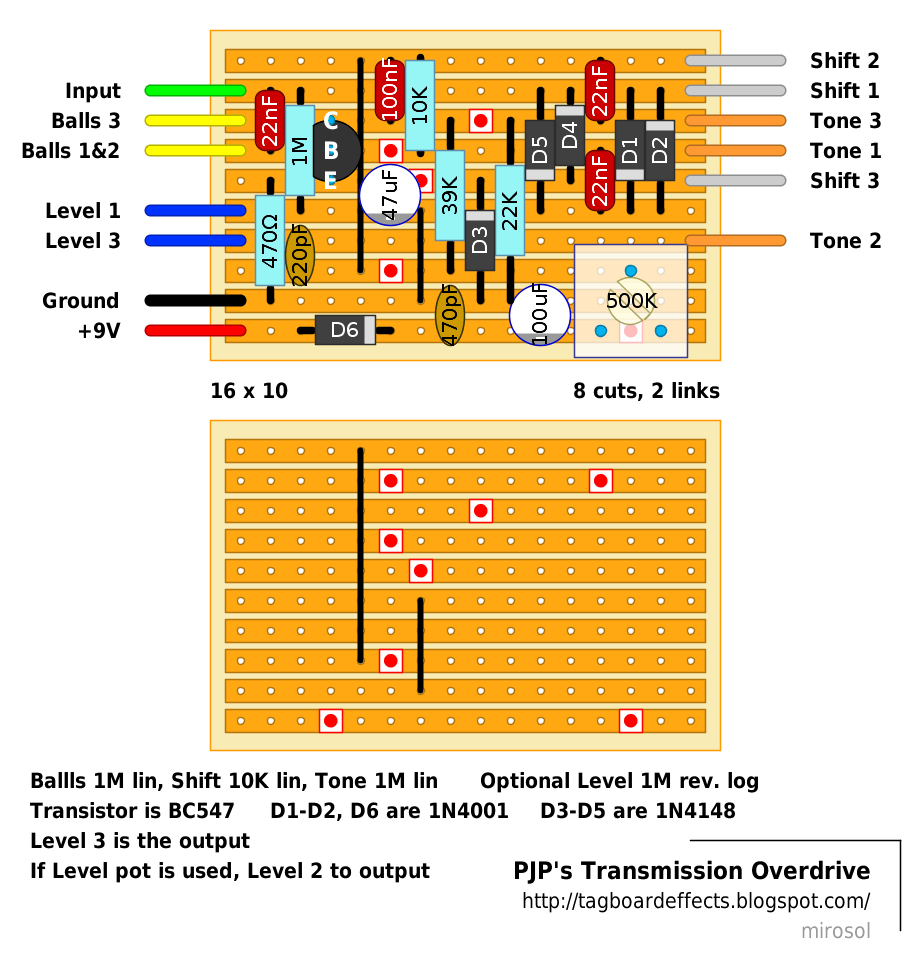

Incorporating couple of cool ideas, here’ one from the man, Pink Jimi Photon. Note that the master volume control is optional and anything smaller than 1M will probably hurt the output level. The level should be within reasonable limits without it. Here’s the original description: Positive it’s been done a gazillion times before. but one … Read more
There was a bit hassle with this one, but now it’s verified and working. Comments on the post are a good read if you’re building this. Thanks to Mr. Photon for his amazing work, and special thanks to Pete who verified this. Mind the notes about the transistors. This is drawn from schematic marked as … Read more
Pink Jimi Photon is one hell of a dude. nothing special or probably un-done before….this USED to be the “stereo make up gain stage” i built for my mn3007 clone theory build… ever eco-conscious <vbg> i decided to cascade the two preamps. and add a footswitchable diode clipper. all built in a re-cycled 1590 from … Read more
