Prescription Electronics Yardbox
Per request. Pretty close to a 3-knob Park Sound fuzz with some minor value changes. The additional “Gain” control like a second volume control? Schematic is avaiable HERE.
Prescription Electronics

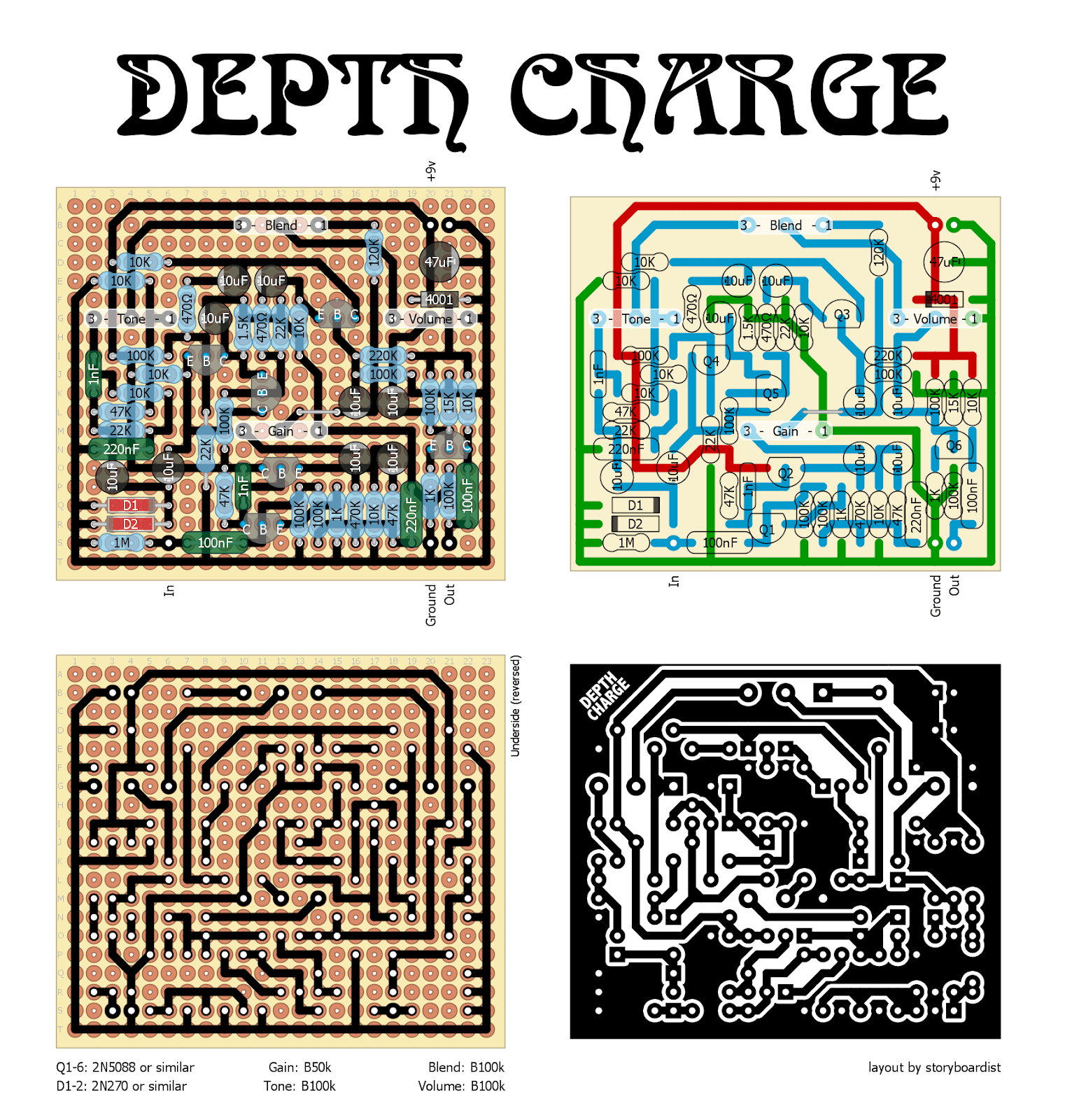

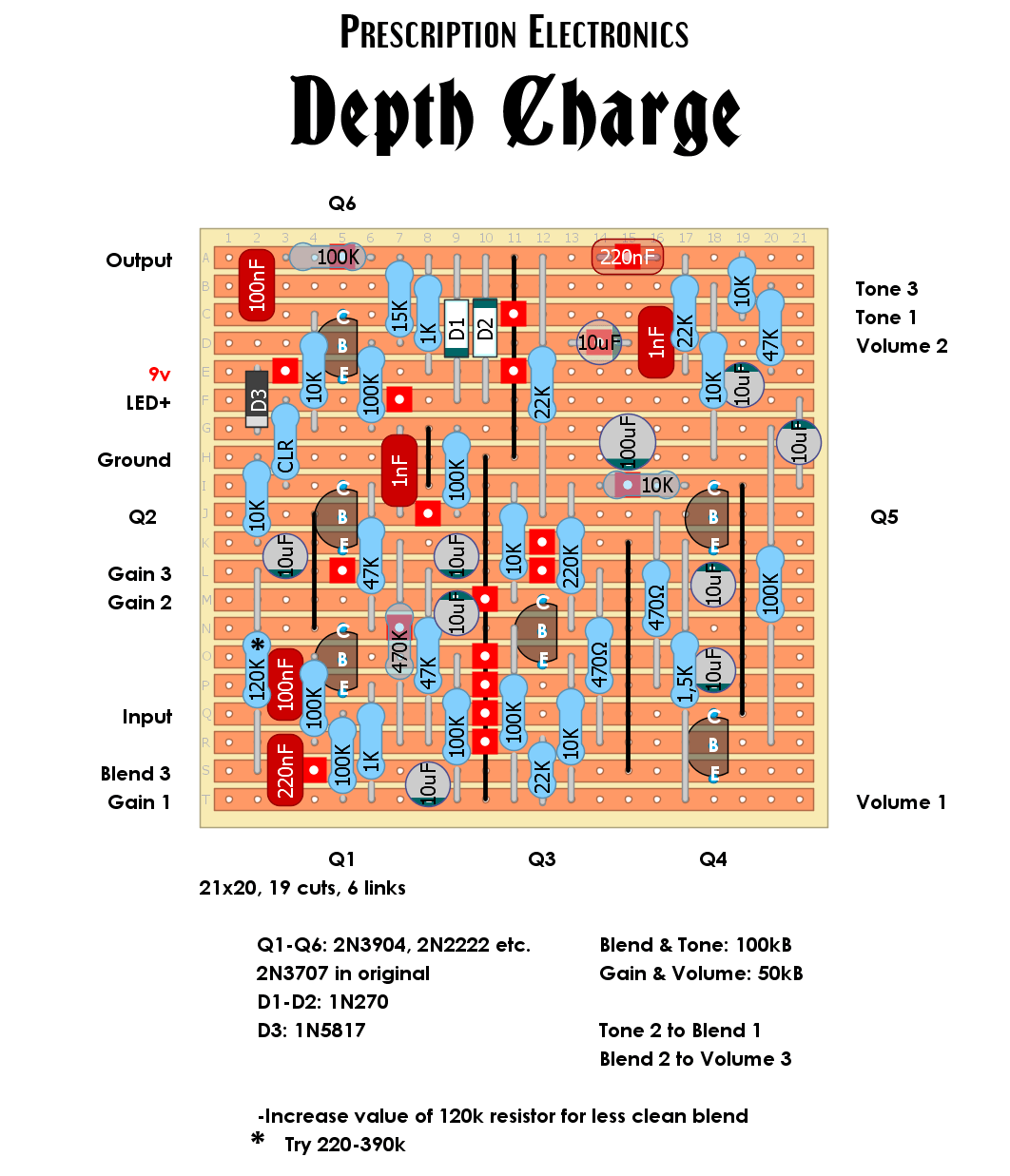

Prescription Electronics Depth Charge
Here’s a sweet bass fuzz based on the Univox Super Fuzz for Fuzz Friday. Original units used 2N3707 transistors with BCE pinout, which I’m guessing most people don’t have in their parts stash. So I laid it out for CBE transistors (2N5088s or BC549Cs should work just fine) and it will fit nicely in a … Read more

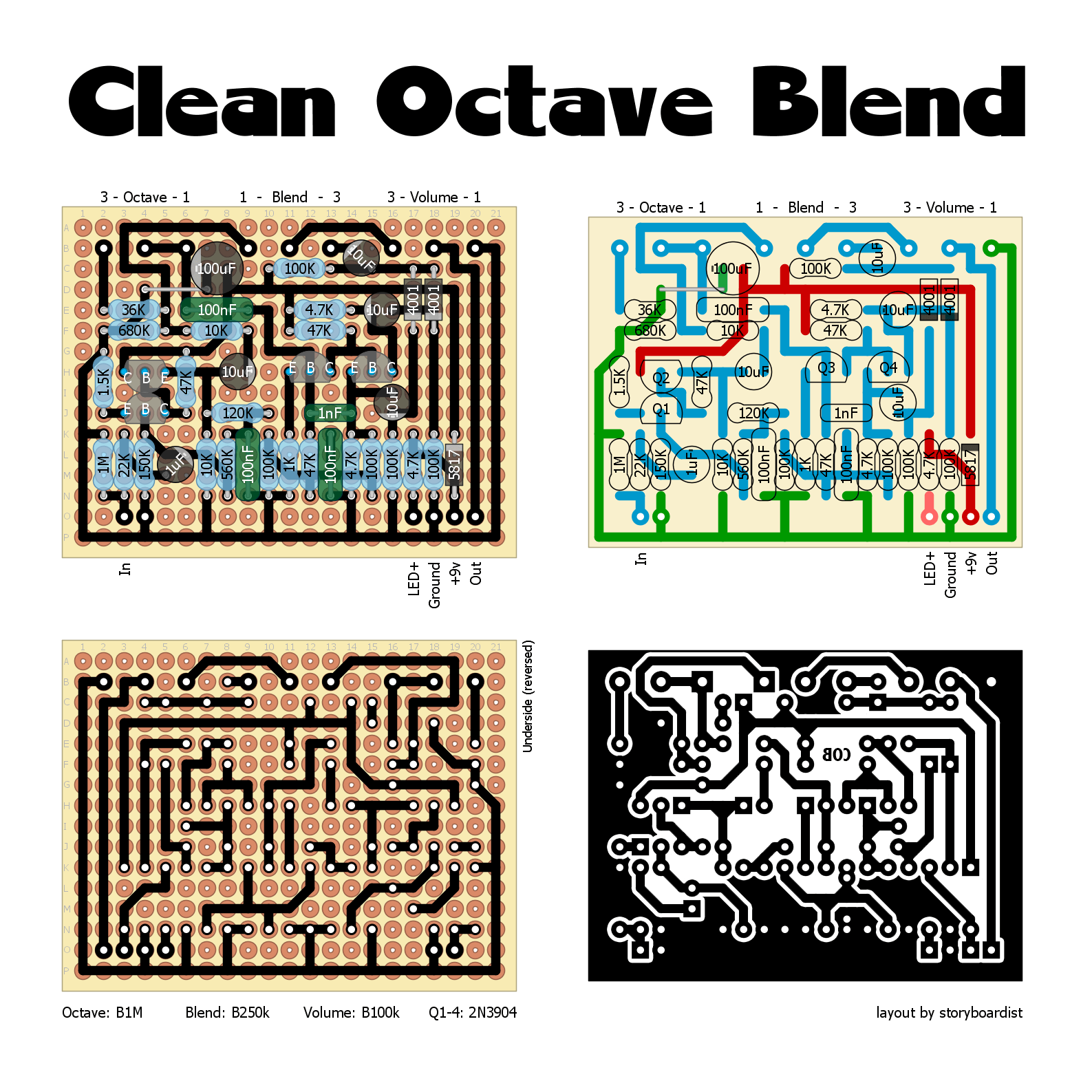

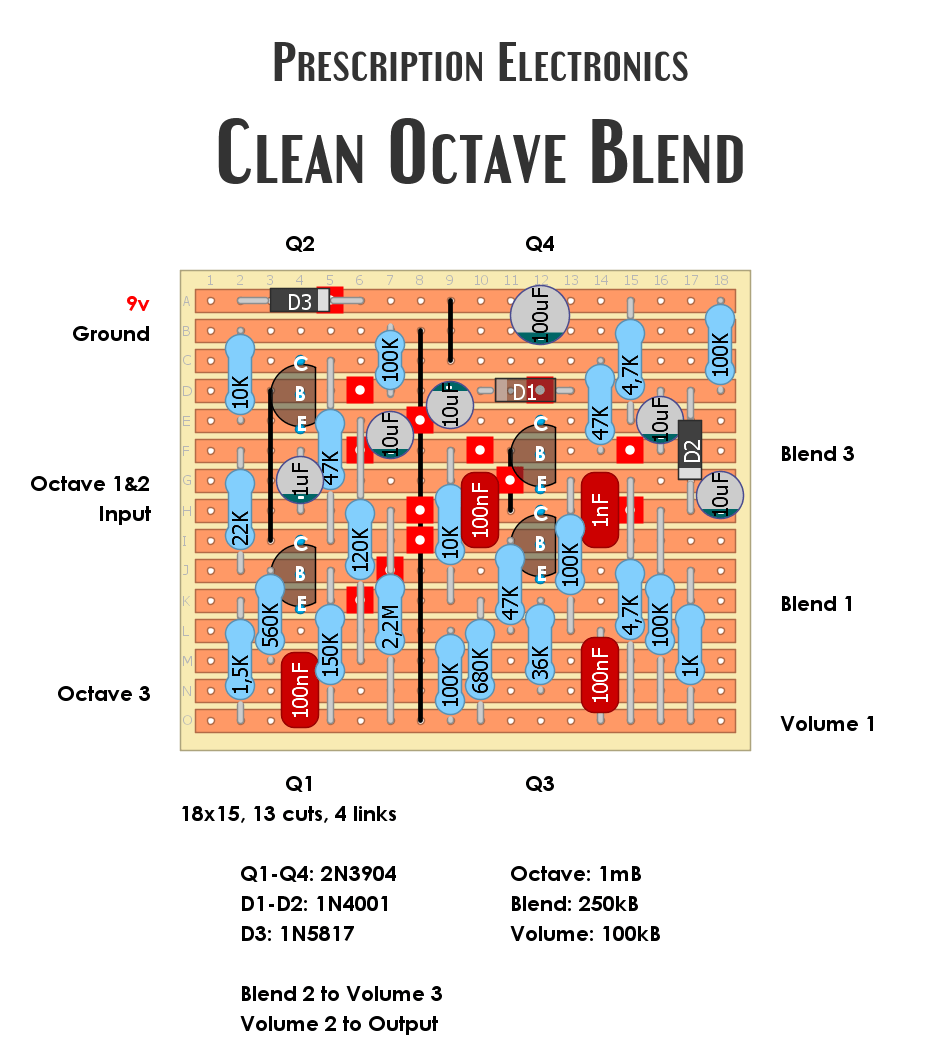

Prescription Electronics Clean Octave Blend
Got a request for this one for Fuzz Friday. Originals fetch crazy prices online. It’s an octave fuzz with a clean blend. If you want a fabricated version of this, check out the Corn Cobb on the store.. Schematic over on FSB. Should squeeze nicely in a 1590B.
Prescription Electronics Experience
Here is the well known Prescription Electronics Experience, a Foxx Tone Machine with extra switchable Swell effect. Octave & Swell Switches Diagram:
