Another contribution by Jordan. Thanks mate! I was playing with the Seppuku Fx Memory Loss that you had posted and made some adjustments for more versatility. The schematic we all have to work from is so sketchy I thought people might enjoy a thorough series of mods to it. S First off I added a Mix … Read more

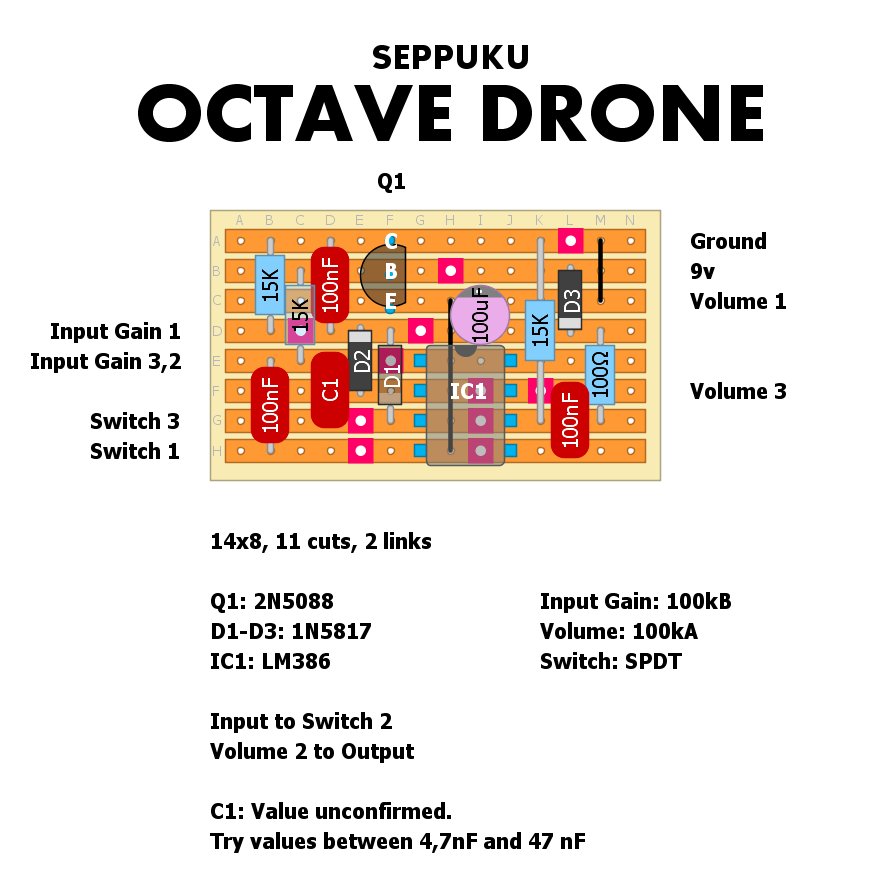

The layout is based on a quite diffucult-to-read schematic found at Mod Wiggler forum. It may contain some errors and there are few question marks next to some of the pots and one of the caps, so some “trial and error” might be necessary to get this thing working as it should. Also, the “Filter” … Read more
Schematic, trace and info avaiable at FSB. Note that there is a cap value missing across pin 11 and 12 at the PT2399. There is a 10nF cap across pin 9 and 10 so a close value to that should work. Also, lug pot numberings isn’t marked on iether of the schematics so lug numbering … Read more

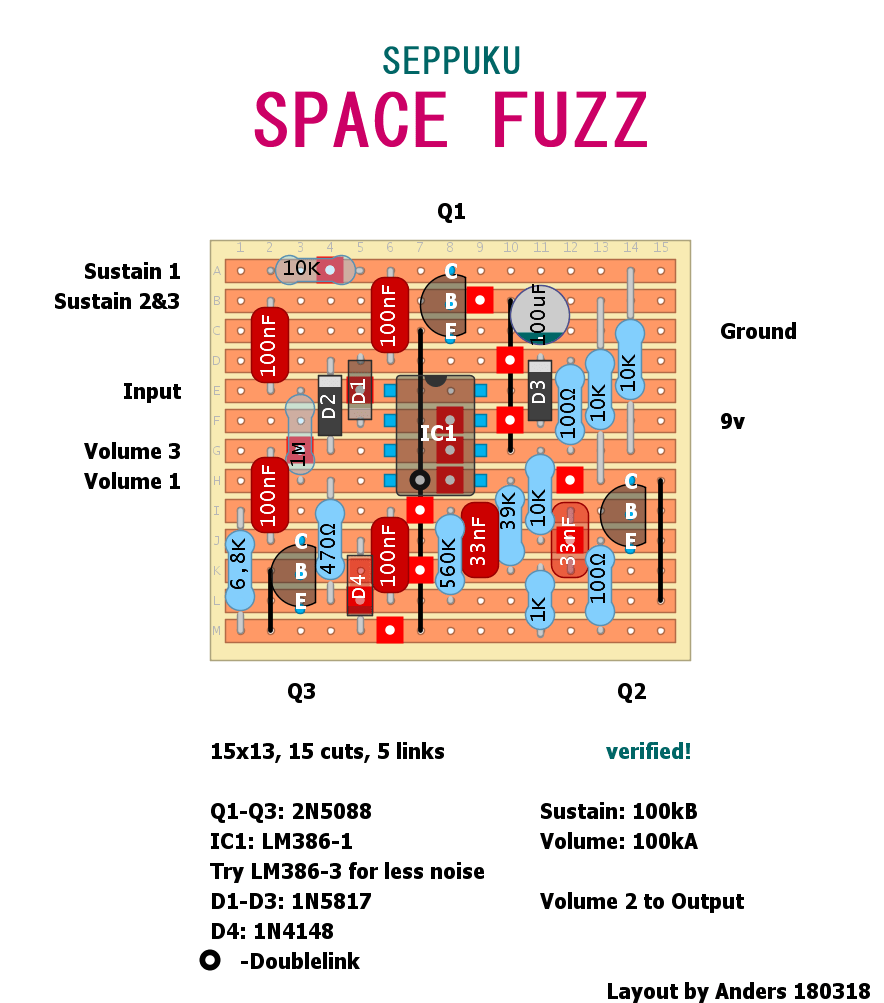

Rev2 addresses slight error pointed out by our friend Mr. Bond. Should not affect tone or behaviour too much..

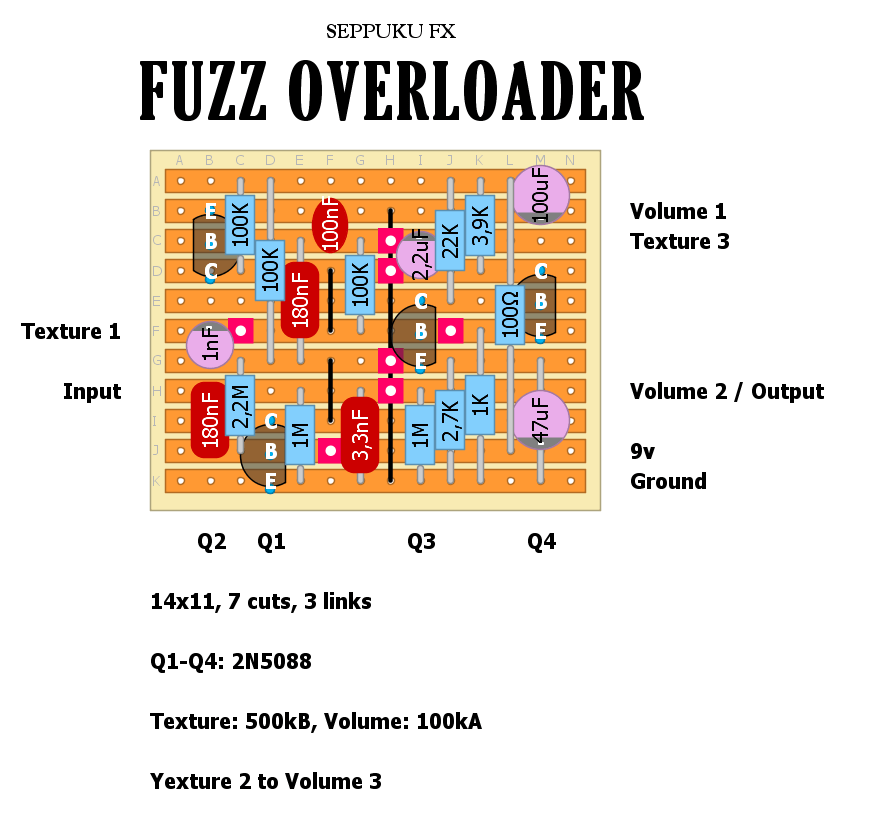

Here’s another Seppuku FX fuzz box. The sound is kind of in the vein of Devi Ever or Death by Audio. The texture control pans between thick overdrive and over the top fuzz. This one should fit in a 1590a. I included a daughter board for the pots to cut down on some off board … Read more
