Seymour Duncan

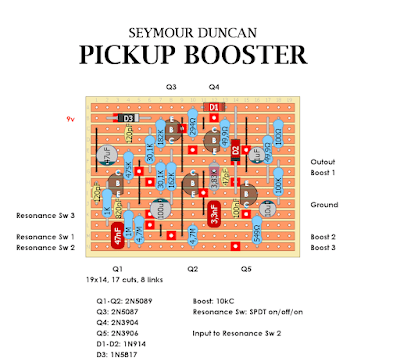

Seymour Duncan Pickup Booster
As you can see there is lots of odd resistor values so here is a layout with closest more common values.

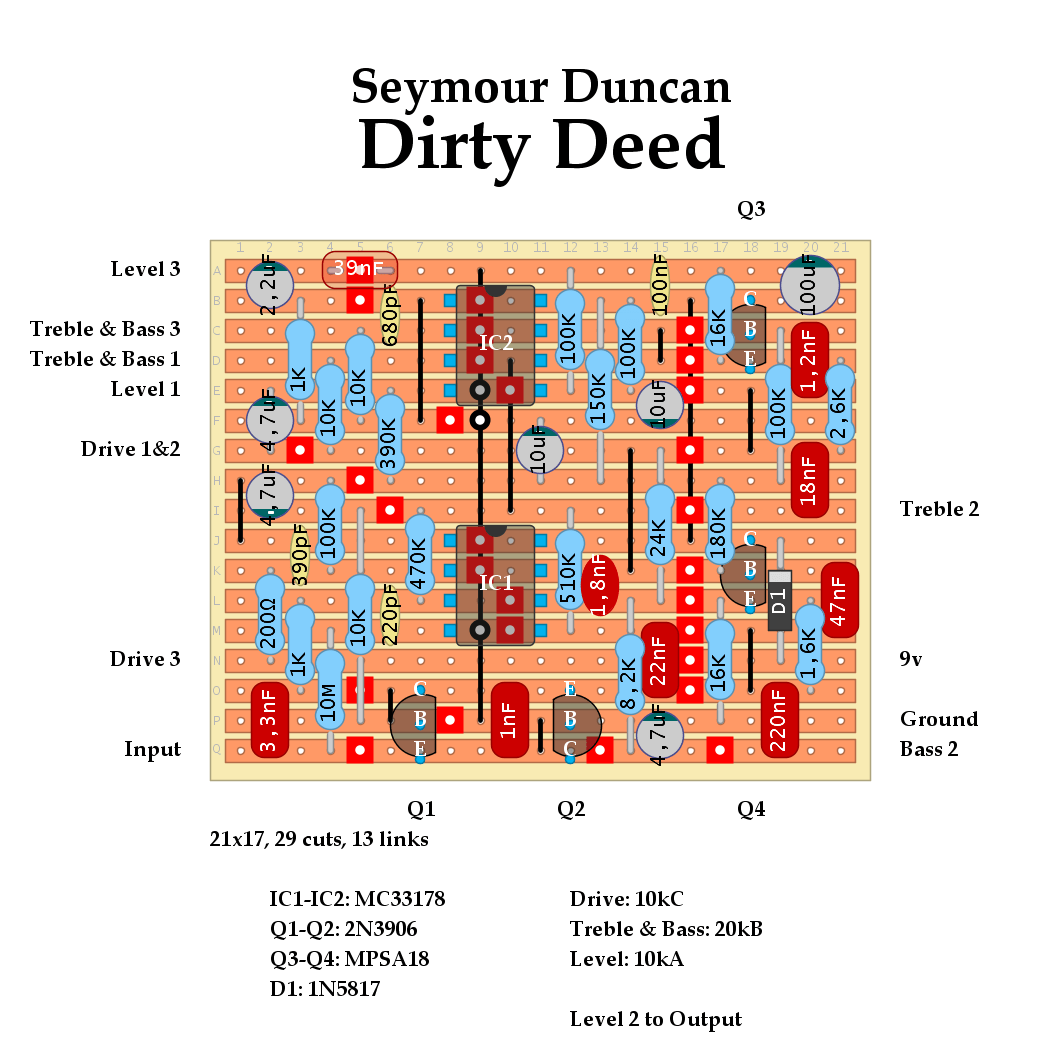

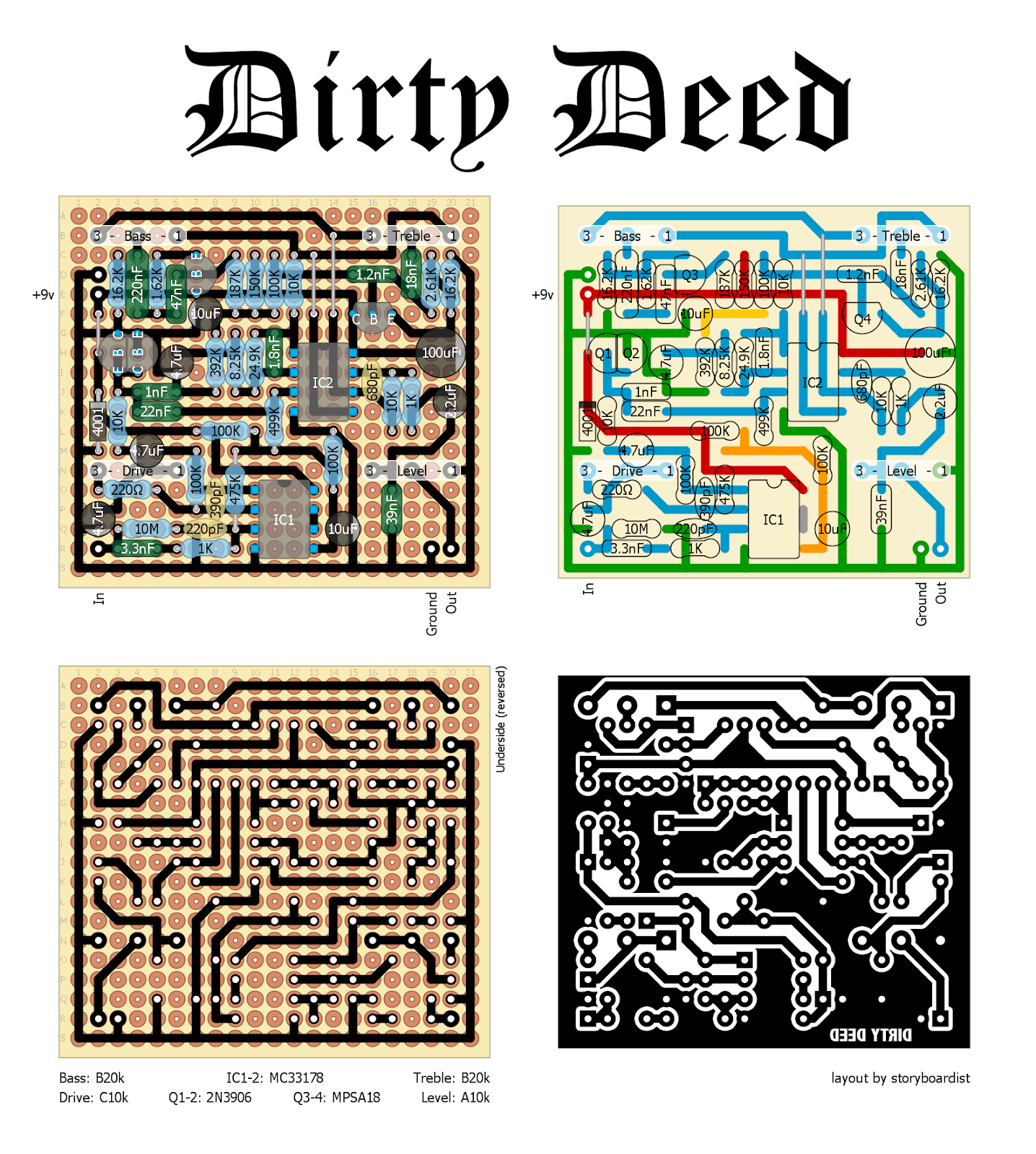

Seymour Duncan Dirty Deed
Here’s a pretty interesting distortion from Seymour Duncan. 2N3906 transistors for hard clipping and a two band gyrator EQ section. Originals I assume are all SMD and use MC33178 ICs, which I believe are equivalent to the LM833, but other dual opamps should work fine. Schematic here. Should be able to squeeze it in a … Read more
Seymour Duncan Pickup Booster
The Seymour Duncan Pickup Booster offers 25 dB of clean boost with flat EQ (and it’s also a line driver). It uses a combination of two NPN and one PNP transistor. Originals use BC107s and BC177s, but other transistors should work fine as well. Check out the demo video below for more info.
