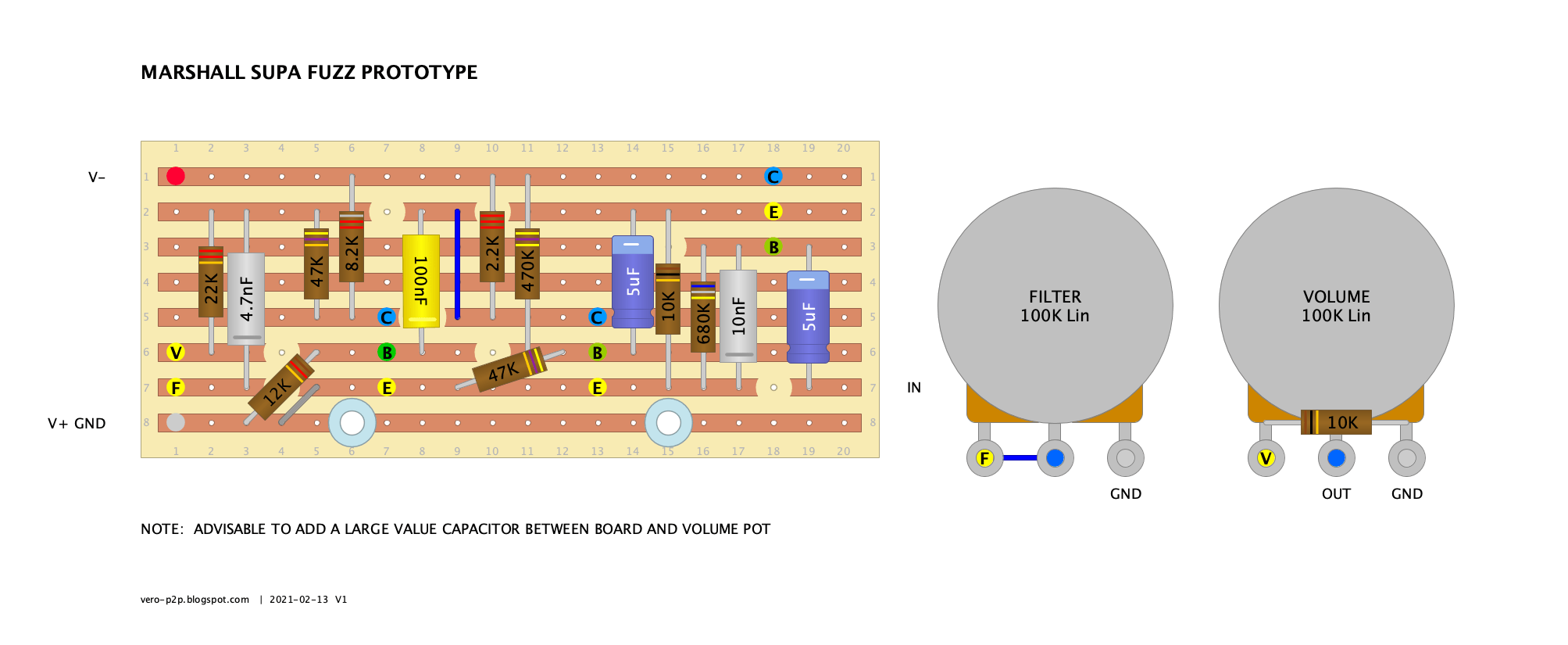

And more Tone Bending… just make sure you add a decent size capacitor to decouple the output, I doubt anyone wants / needs stray DC escaping your fuzz. MARSHALL SUPAFUZZ PROTOTYPE – TAG BOARD LAYOUT MARSHALL SUPAFUZZ PROTOTYPE – VIDEO

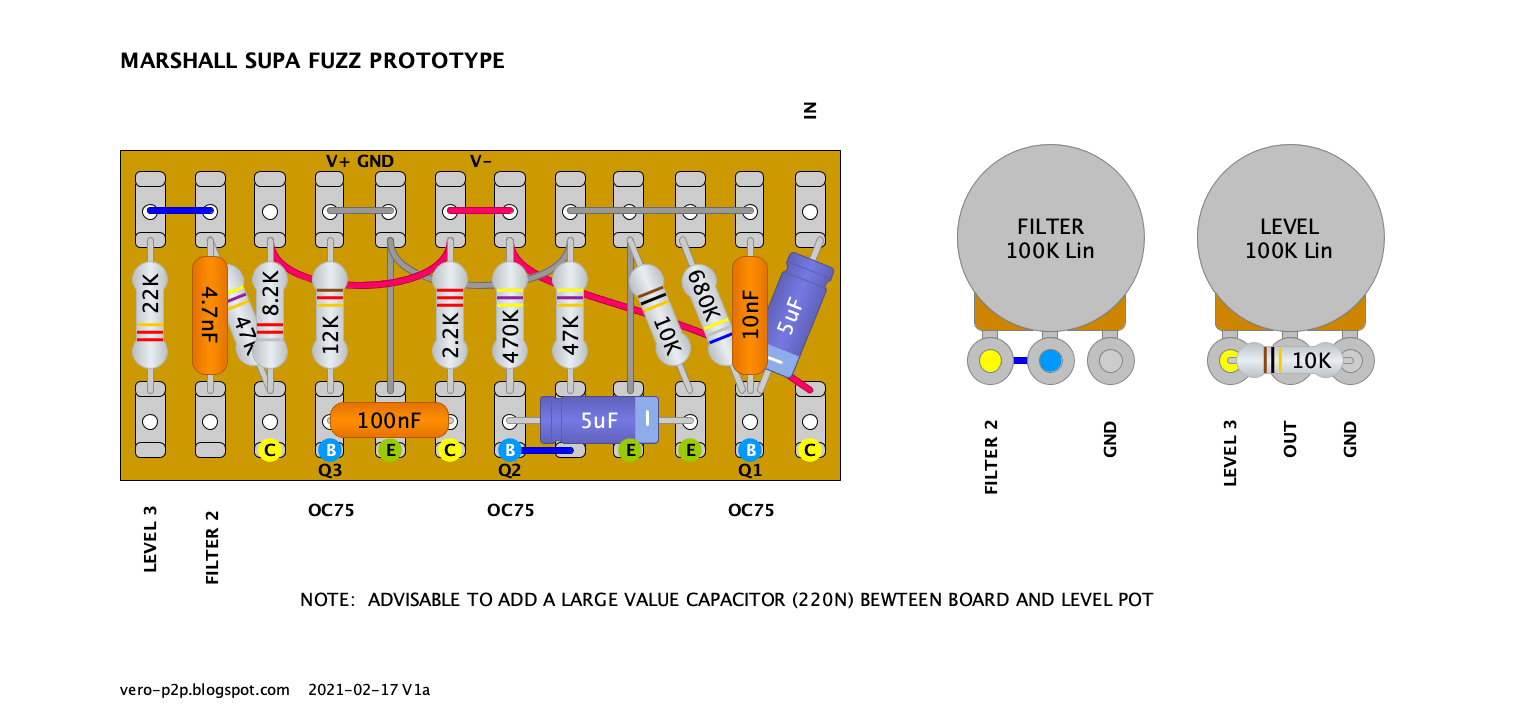

This is the early version of the Marshall SupaFuzz based on a Tone Bender MKI – it’s close to the original layout used. Strangely it never had a coupling cap on the output, so best to add something decent sized there. I’ve also seen a couple of photos with a power cap across V+ … Read more

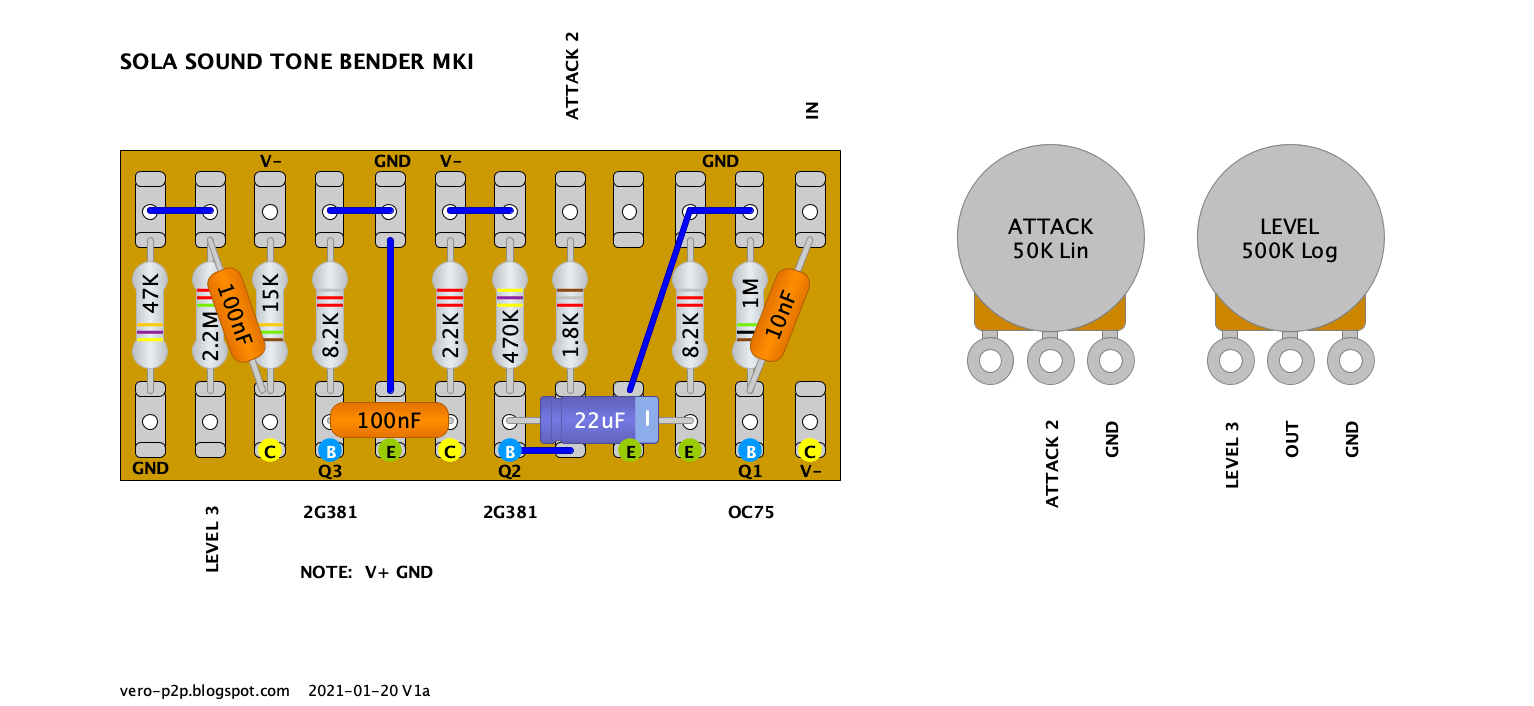

I’m sure there are more than a few layouts out there for the Tone Bender MKI on tag board – I’m sure a couple more will not hurt. These are based on the Zonk Machine tag board layout, and I’m planning on adding an extra tag or two to adapt it to a D*A*M FZ-673 and … Read more
As far as I know, only a handful of D*A*M FZ-678 were ever made, maybe 5 in total – it’s a variation on a Zonk Machine. It’s the same structure as a Zonk / MKI, but with a filter attached to the input. I haven’t made a layout for it, as it’s all there to … Read more

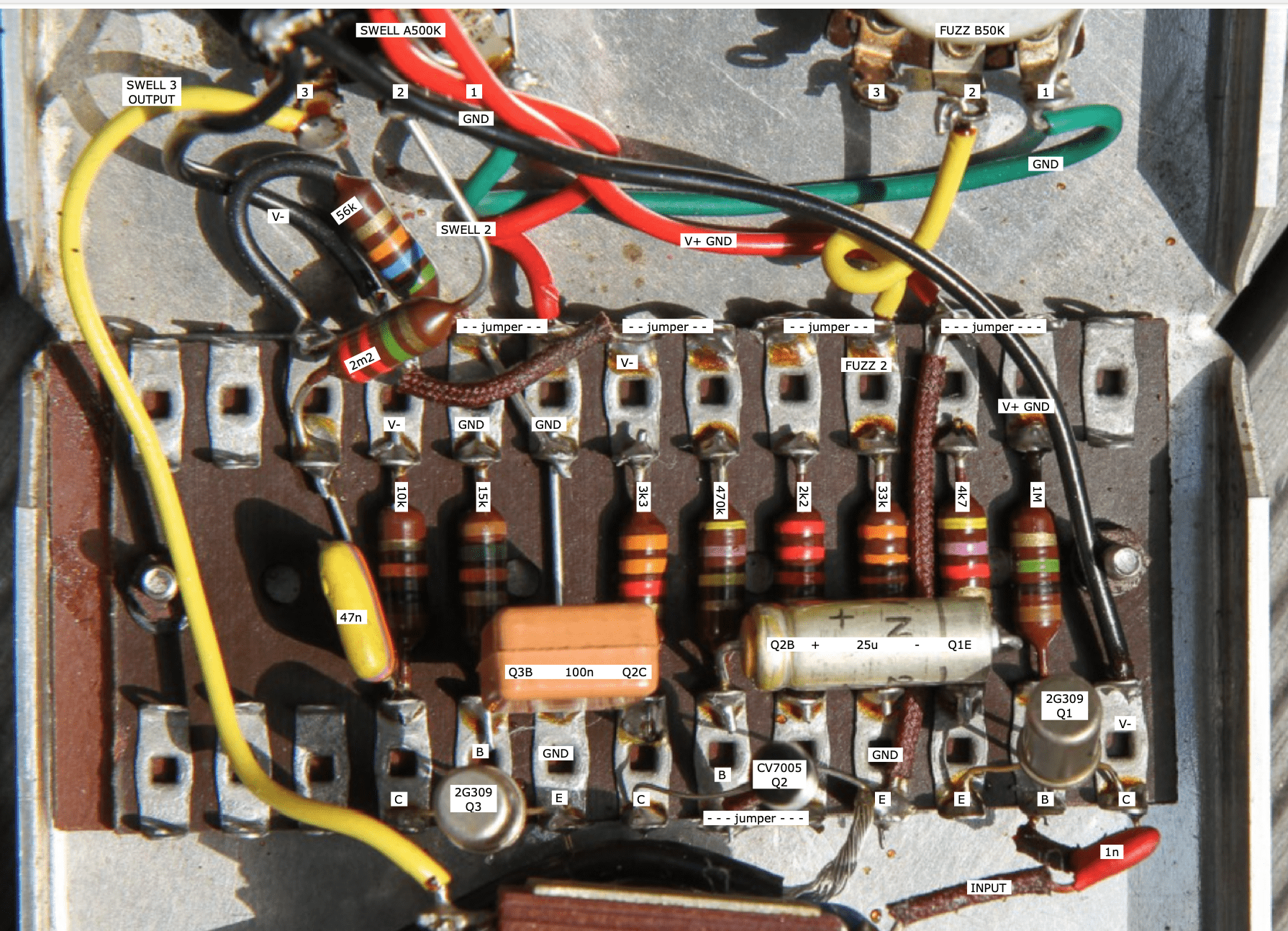

The Hornby Skewes Zonk Machine is pretty much a MKI Tone Bender with some value changes – most notably the 1n capacitor on the input and resistors to collectors. A classic guitar effect from back in the day. ZONK MACHINE – ORIGINAL TAG BOARD LAYOUT TAG BOARD LAYOUT There’s enough room on a 12-lug tag board … Read more
Another D*A*M layout that I traced from photos is the Zoot Unit ZU-65, which is a Zonk Machine…. I did see a couple of photos with what appeared to be a slightly larger input cap, but I’m not entirely sure about this. There are also variations on bias resistors, depending on Q2, with some … Read more
I’ve already made a point-to-point layout for this, and as I’m currently on a 0.15″ D*A*M vero roll, I thought, why not… and it’s a Zonk Machine with tweaks. Remarkably similar to the original D*A*M layout, I did move the output from the board a little and swapped pins on the swell pot to a more standard … Read more
