Vertex

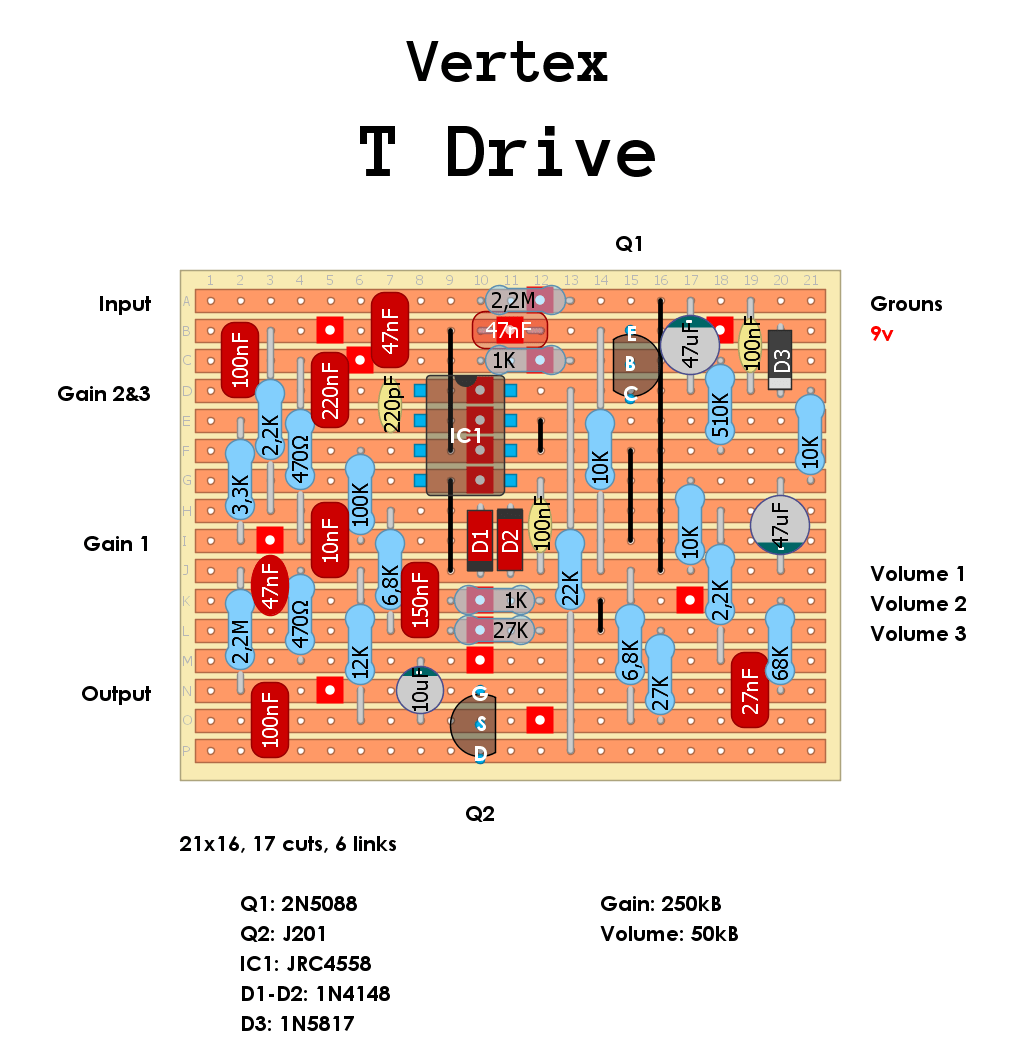

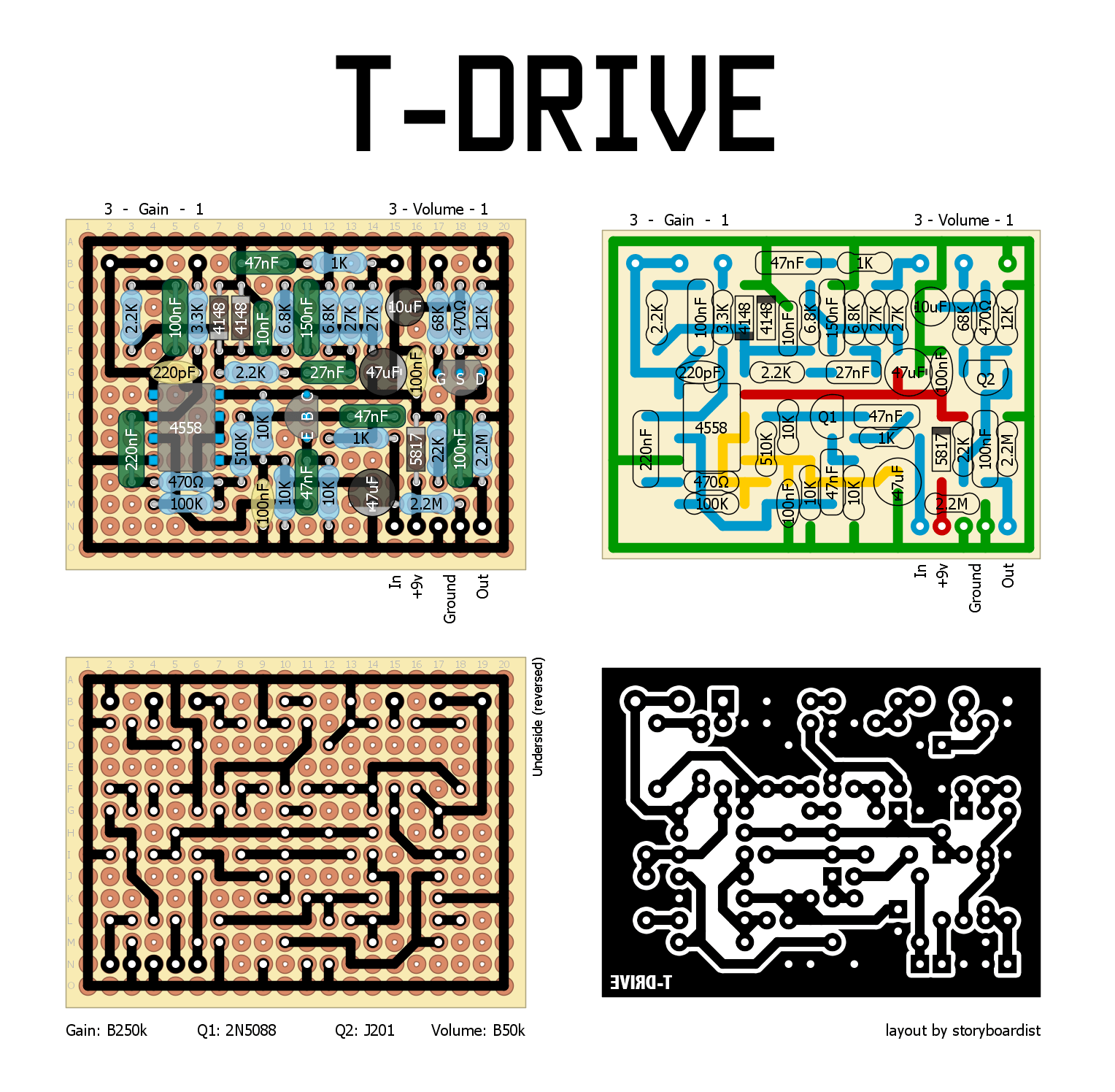

Vertex T-Drive
Here’s Vertex’s Trainwreck-style pedal. Essentially a modified Ibanez SD-9. BJT input buffer, opamp gain stage, followed by hard clipping, a fixed BMP-style tonestack, and JFET output stage. Schematic over on PedalPCB.

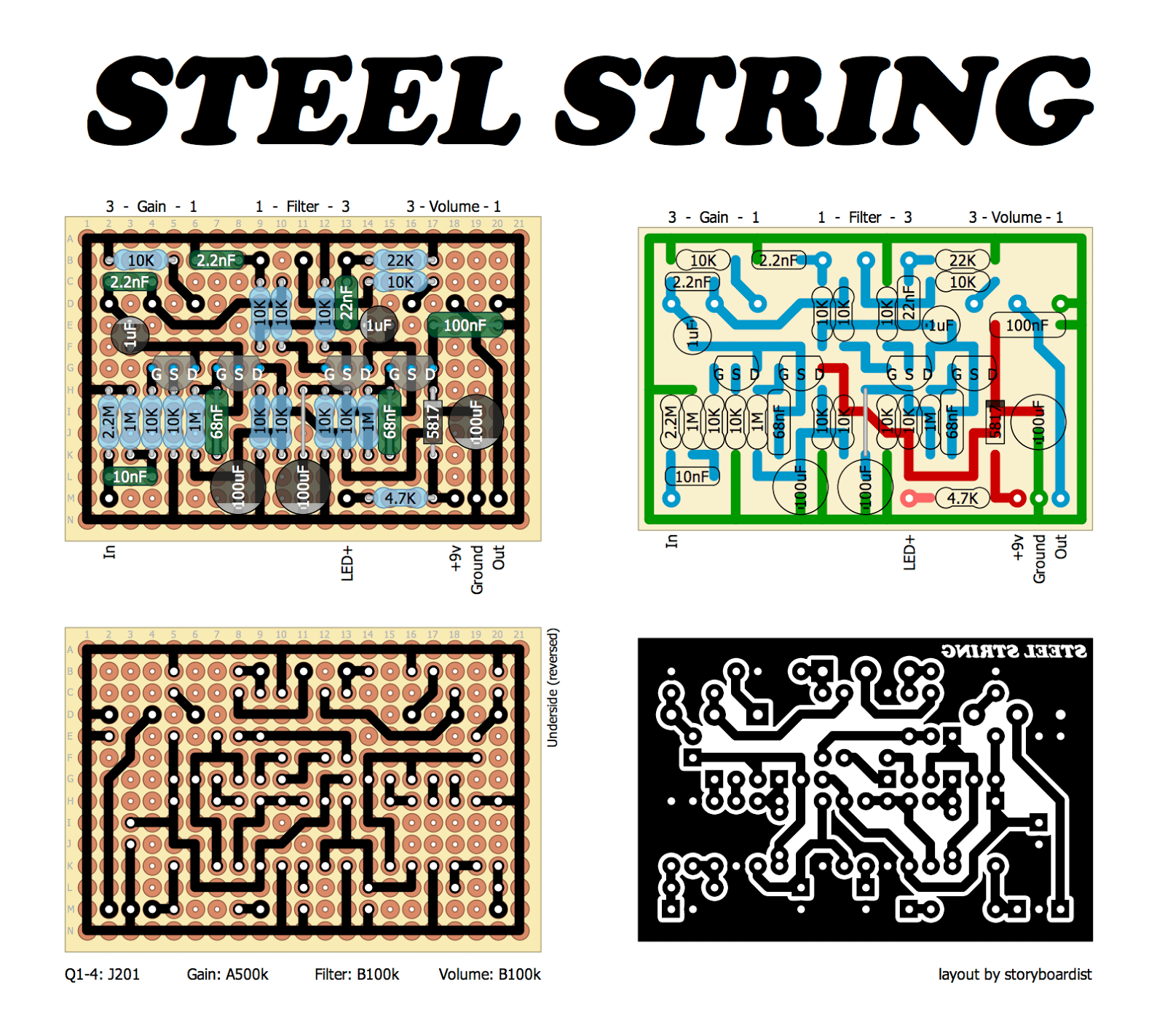

Vertex Steel String
Original info: “The Steel String Clean Drive faithfully recreates the tonality and feel of the iconic Dumble Steel String Singer amplifier in a stompbox format. Designed alongside a real Steel String Singer (#001), this 100% analog tone tool will do it all from Overdrive, to Fat Boost, to Compression, to EQ shaping and more. Get … Read more

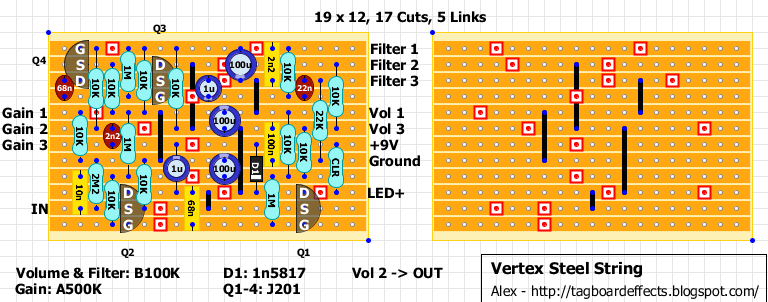

Vertex Steel String
Here’s a relatively new effect from Vertex–the Steel String Clean Drive. It’s supposed to sound like a Dumble amp and is 2 muamps going into a BMP tone stack. Schematic can be found here. More progress with the tutorial. Actually wrapping up the DIYLC portion before moving onto the Photoshop bits.
