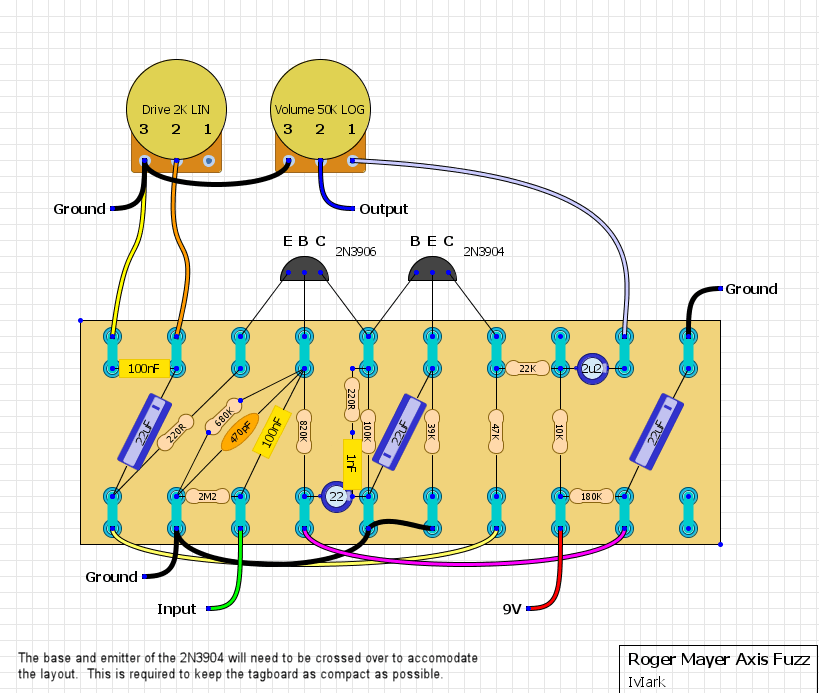

Roger Mayer Axis Fuzz IvIark 4111776a9e0b

Roger Mayer Axis Fuzz

3 Jun 202614 Feb 2010 by chords

and modified version removing the 220R resistor and 1nF cap. Some people think it sounds better:

Categories Uncategorized Tags Fuzz, Roger Mayer, Tagboard, tagboardeffects, Verified

PNP Germanium Buffer

Roger Mayer Classic Fuzz
