This is one of those versatile builds that could be useful for a number of different tasks. Effects and dry signal in parallel, 3 channel splitter/mixer, 1 input 3 outputs for using multiple amps, 3 inputs into one output to use multiple instruments, convert serial effects loop into parallel … and so on. I made it 3 channel so I could put two mono effects in parallel and then have the third channel to pass the dry signal via a patch lead if I was using digital effects and wanted them wet only, so as not to digitise the main dry signal. It can be easily adapted for more or less channels depending on what would suit you.

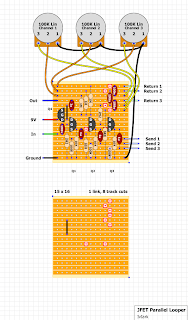

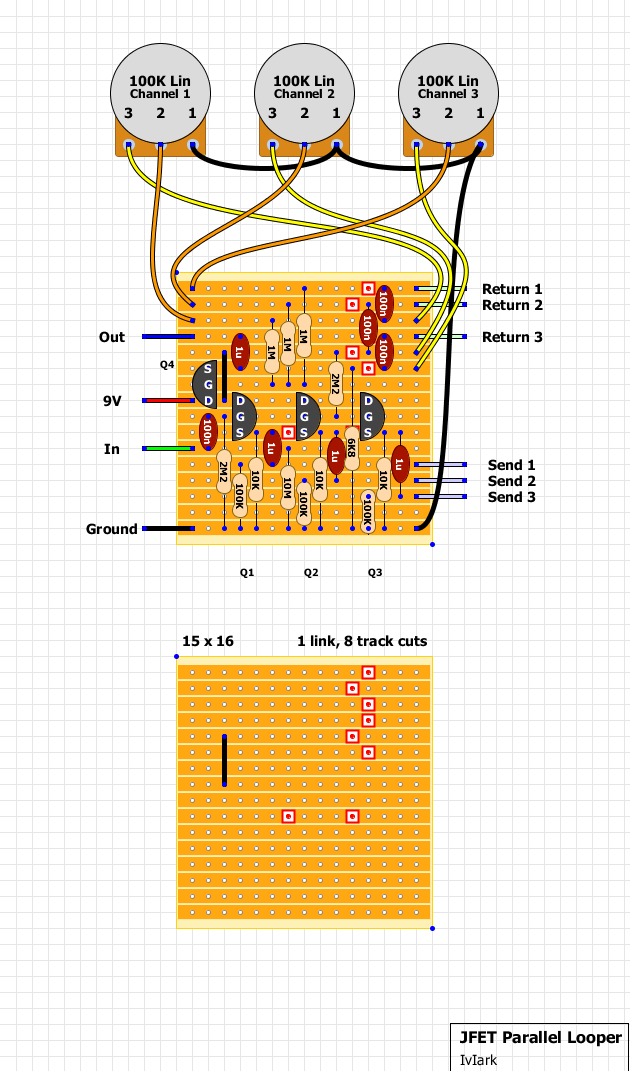

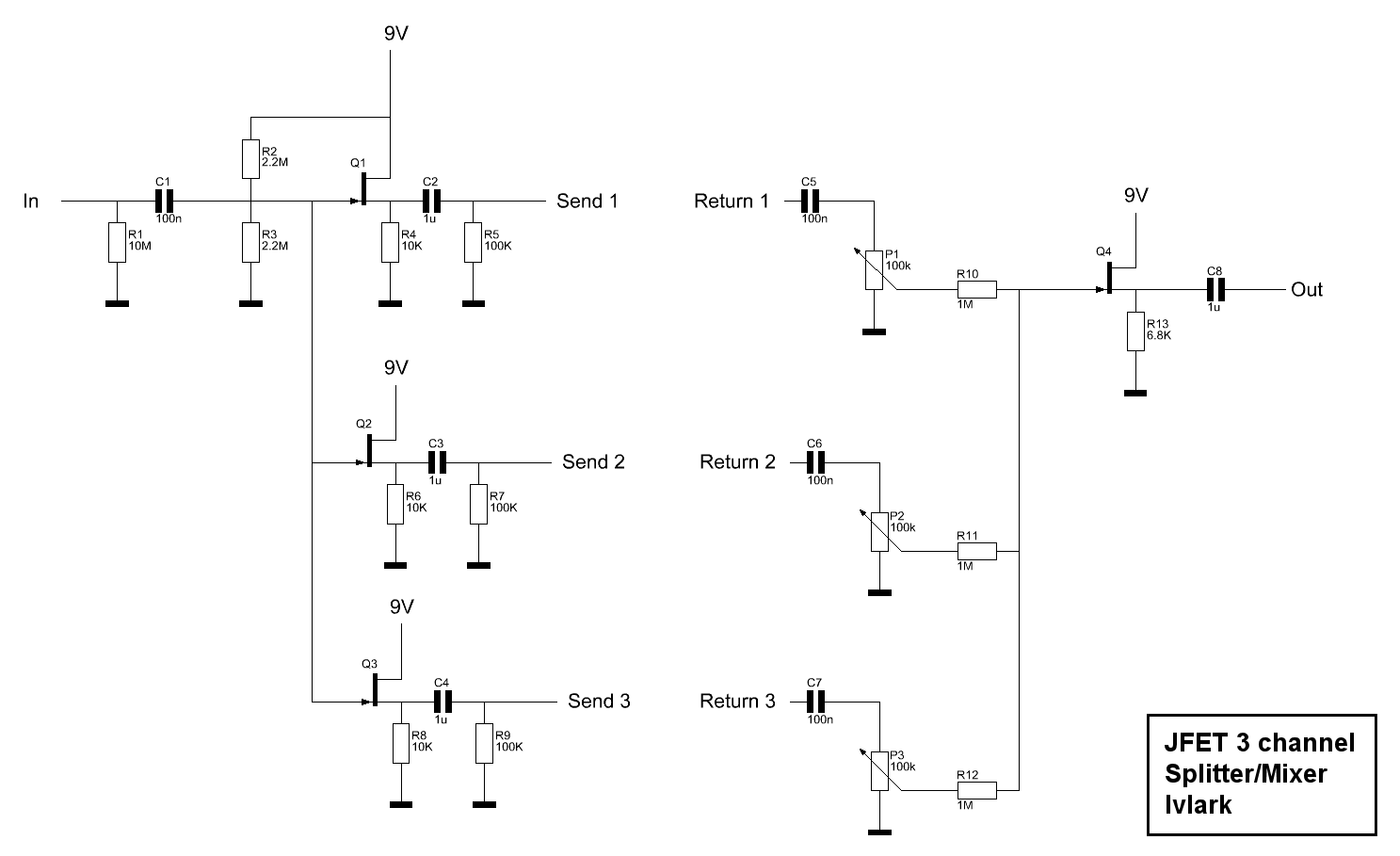

Based on the AMZ splitter and a generic JFET mixer circuit.
