Lovepedal Delux Sixty2 bf35429a1117

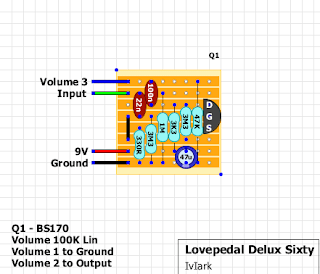

Lovepedal Delux Sixty

3 Jun 202627 Jan 2012 by chords

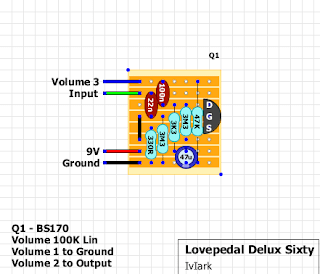

Anti-popping resistor added to the input after the discussions below:

Categories Uncategorized Tags Booster, Lovepedal, tagboardeffects, Verified, Vero
