Lovepedal Super 6 cd41e93ca6ea

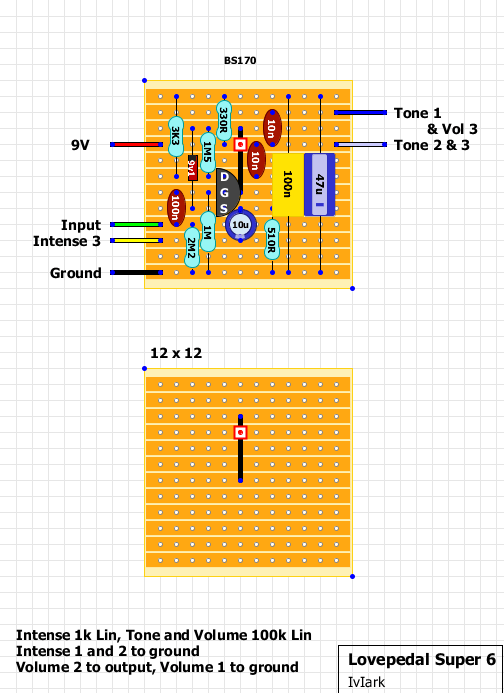

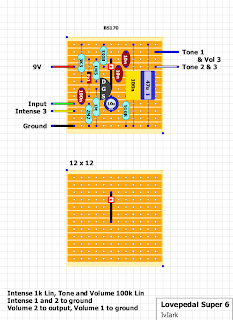

Lovepedal Super 6

3 Jun 202616 Jan 2012 by chords

The Lovepedal library continues! :o)

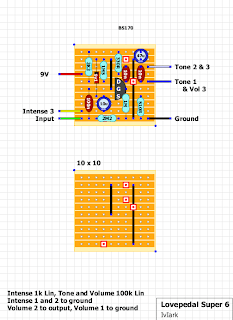

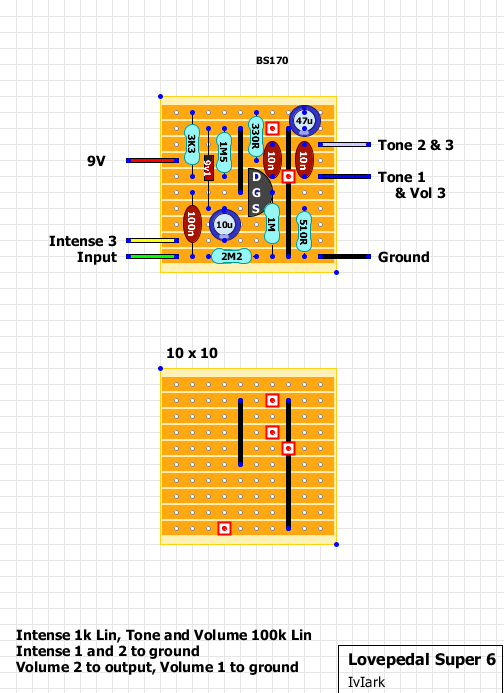

More compact version without the unnecessary 100nF filter cap

Categories Uncategorized Tags Lovepedal, Overdrive, tagboardeffects, Verified, Vero
