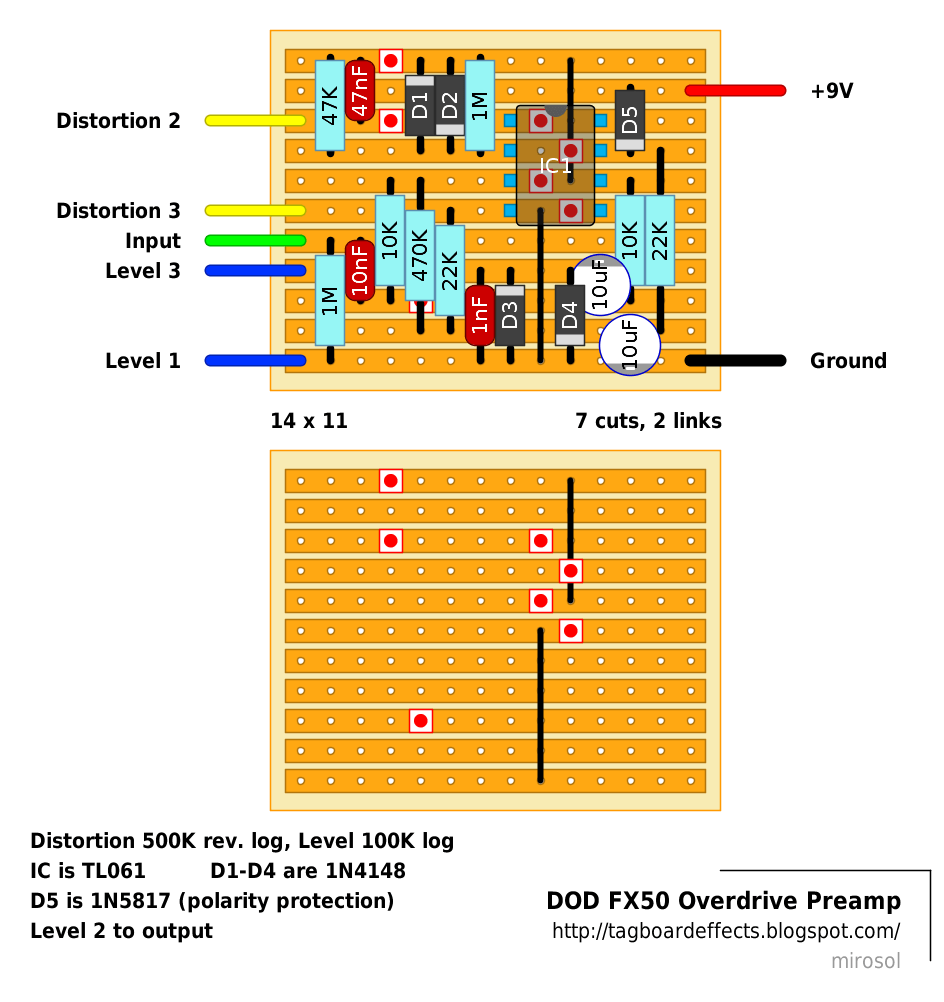

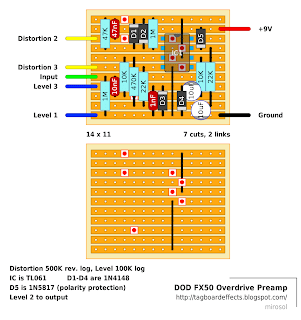

Here’s DOD’s step up from OD250 – from around ’82.
On the original unit, the chip used is TL022, which is low power dual opamp – But the other half doesn’t touch the effect side at all – It’s only used as a buffer for the bypassed signal. So i made the layout to house a single opamp instead. TL061 is low power single opamp from the same family of chips – so i believe it should sound pretty close to the original.
