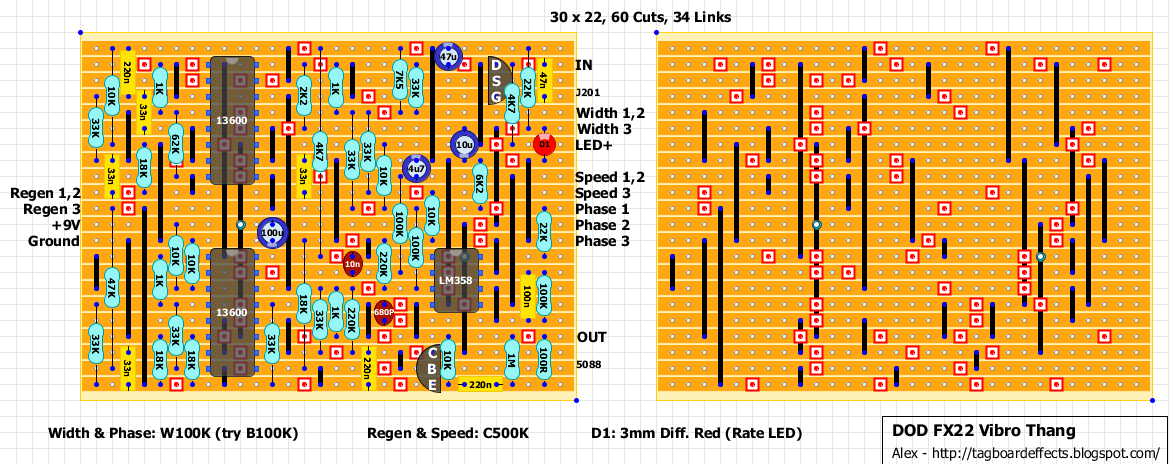

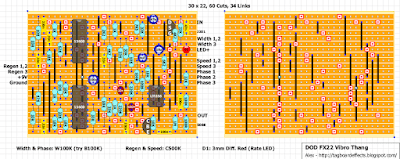

Here is a layout for the DOD FX22 Vibro Thang (Vibrato / Phasor)
04/05 Layout Updated: LM358 pin 4 and the 18K resistor from the bottom LM13600 pin 9 were connected to V+ instead of ground.
DOD FX22 Vibro Thang
