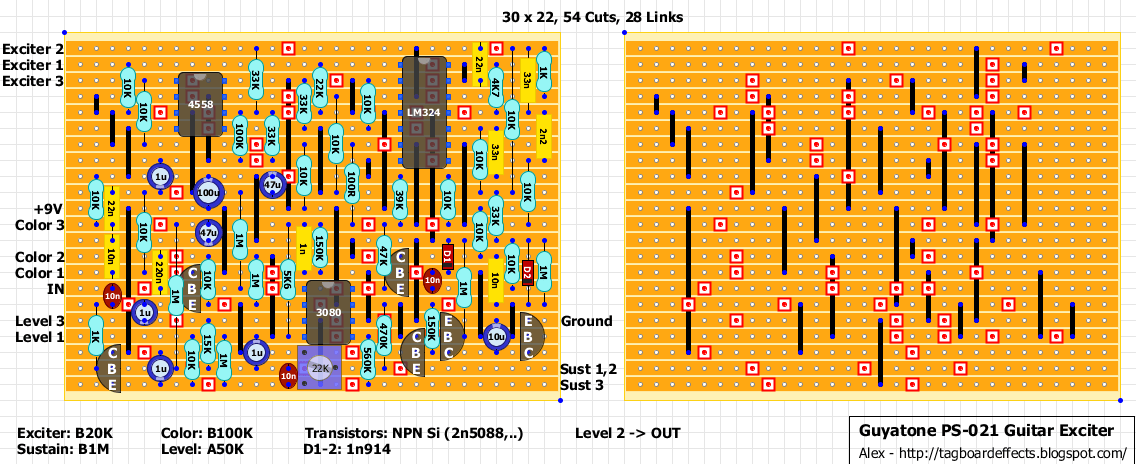

A vintage pedal from the 80s.
I’ve removed the flip flop switching system and buffers (thanks Zach for the help).
Hopefully it will fit in a 125B box.
You can find original thread and schematic here.
Updated schematic is available in our Forum section.
Thanks Dino for his explanatory video.

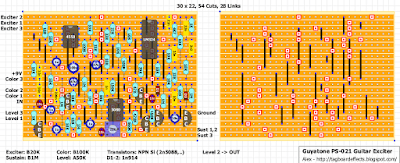

12/11 Layout Updated! Readded the input buffer as Aion’s suggested.

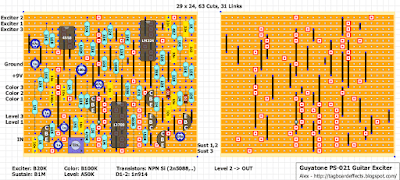

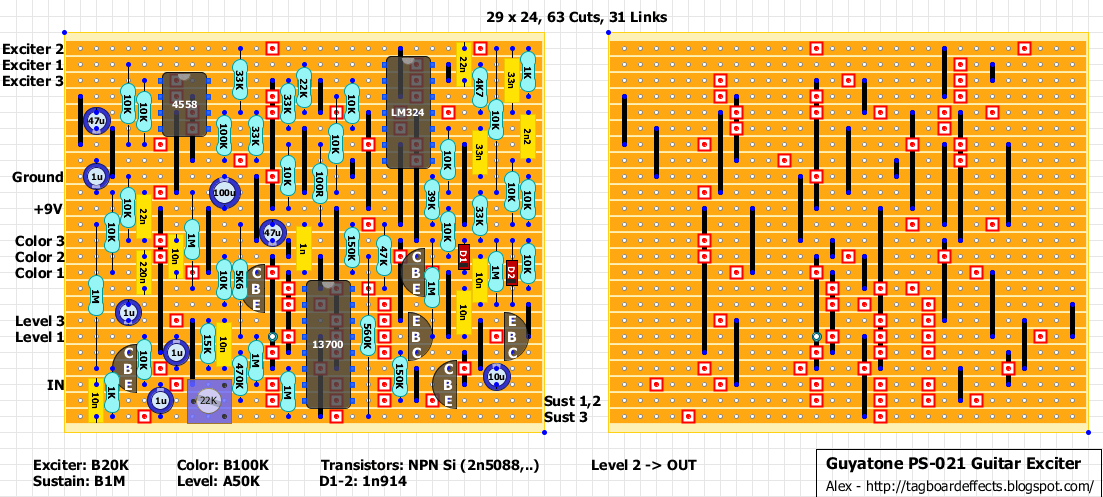

… and the LM13700 version
