Guyatone

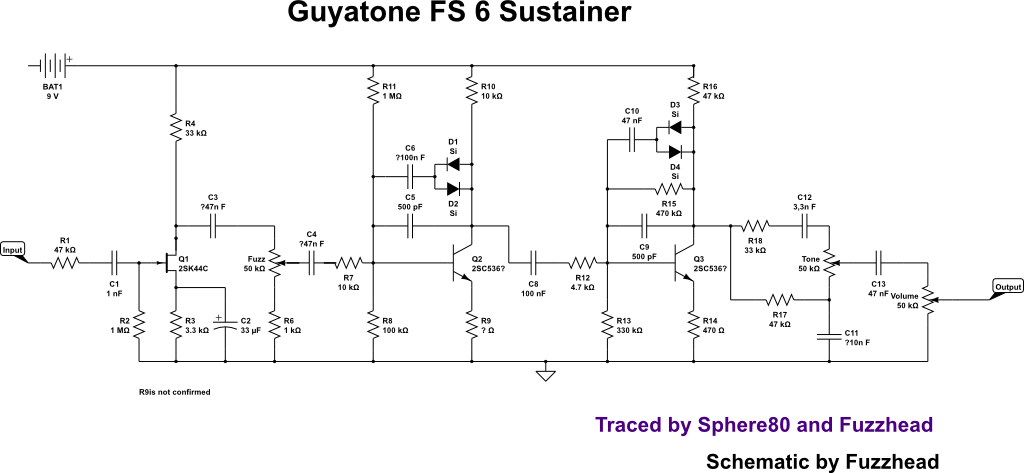

Gyuatone FS 6 Sustainer
Schematic Vero layout And another vero layout with added recovery stage since original units had a bit low output.
Guyatone PS-021 Guitar Exciter / Compressor
A vintage pedal from the 80s. I’ve removed the flip flop switching system and buffers (thanks Zach for the help). Hopefully it will fit in a 125B box. You can find original thread and schematic here. Updated schematic is available in our Forum section. Thanks Dino for his explanatory video. 12/11 Layout Updated! Readded the … Read more

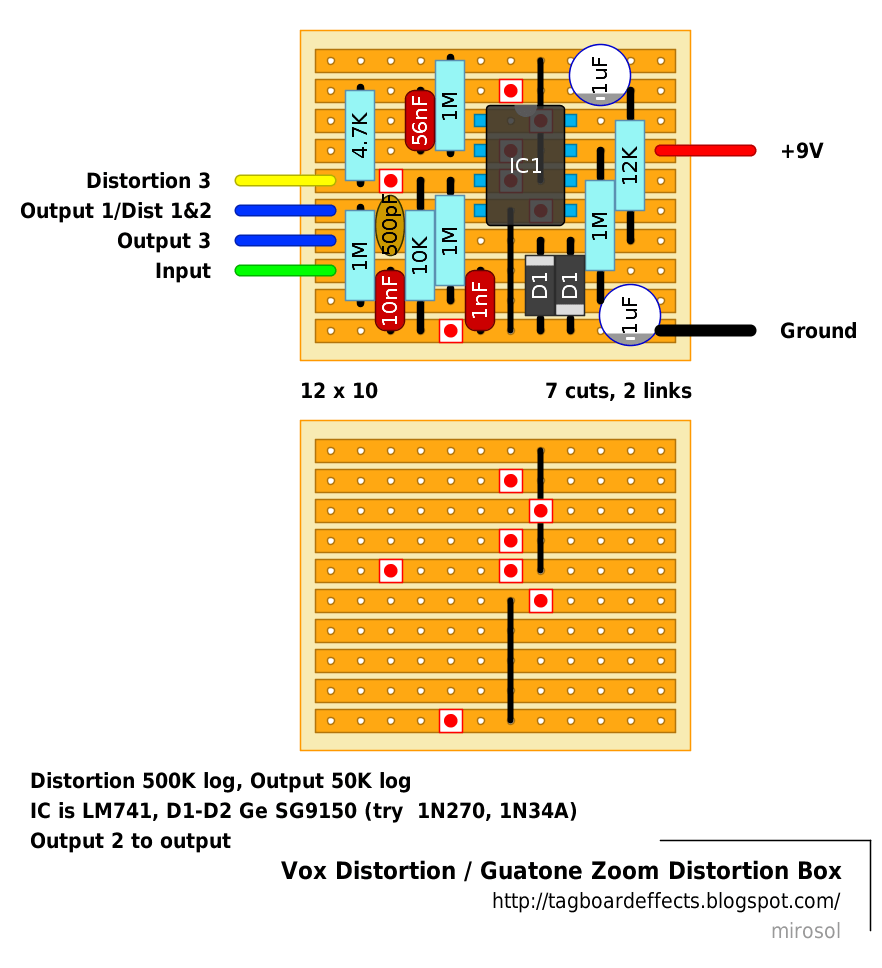

Vox/Guyatone Zoom Distortion Box
This design is pretty close to OD250/Dist+, but i thought it should be added anyway, as there are some slight differences. Funny thing is that the same circuit was marketed and sold as both Vox Distortion and Guyatone Zoom Distortion Box. From what i can tell from the demo, it’s really nice sounding thing. These … Read more
