“The Friedman Buxom Boost may be the most powerful tonal solution you
ever put on your pedalboard. Like its namesake amp head, this pedal
pushes a pure, clean signal to conjure the absolute most from your tone.
Turning the boost control is your ticket to volume increase, pushing
the front of your amp for thick harmonic overdrive, or balancing between
two guitars with varying output. Whether you’re after a tone tailored
by its active mid, treble, and bass controls or the pedal’s ability to
achieve total transparency – thanks to its onboard EQ Bypass switch –
it’s all in there. We’ve even added a useful tight control for reigning
in your tube amp’s bottom end when boosted. As expected, every Buxom
Boost pedal is crafted with the attention to detail and fine ear for
tone that comes with Dave Friedman’s name.
Your tone, just more of it. Just like the Friedman
Buxom Betty amp head, the Buxom Boost sings with a completely clean tone
that makes every nuance of your performance shine though. Simply flip
the pedal’s onboard EQ Bypass switch and you have a completely
transparent signal, adding muscle to your guitar without ever changing
its fundamental character.
Tuned for your rig. Though the Buxom Boost can be
tonally invisible, its active 3-band EQ and powerful Tight control
enables it to be anything but. With a stomp of a switch, you’re able to
balance the voice and output of two different guitars or push certain
frequencies for a solo tone that cuts. With the Buxom Boost’s
high-quality components, you’ll be astounded at how well it works for
fine tuning your acoustic-electric guitar’s plugged-in voice.“
Schematic from Bugg available here.
There are 2 layouts (circuit runs at +/-9V).

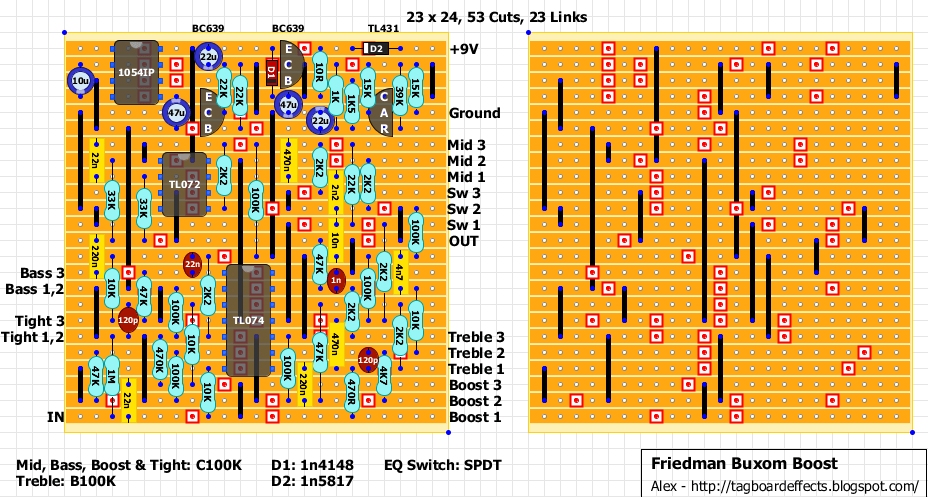

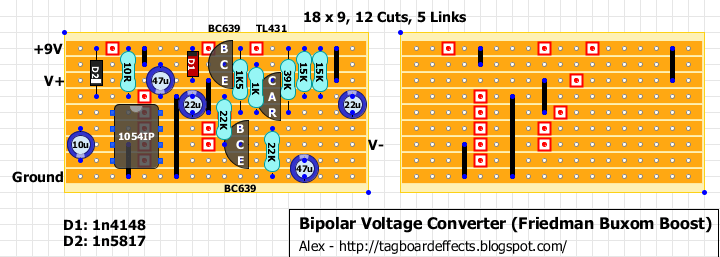

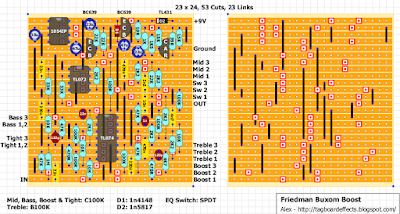

The first one with the original bipolar voltage converter.

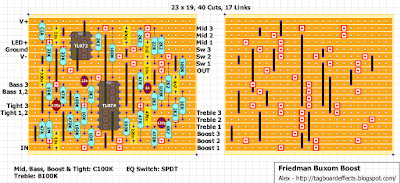

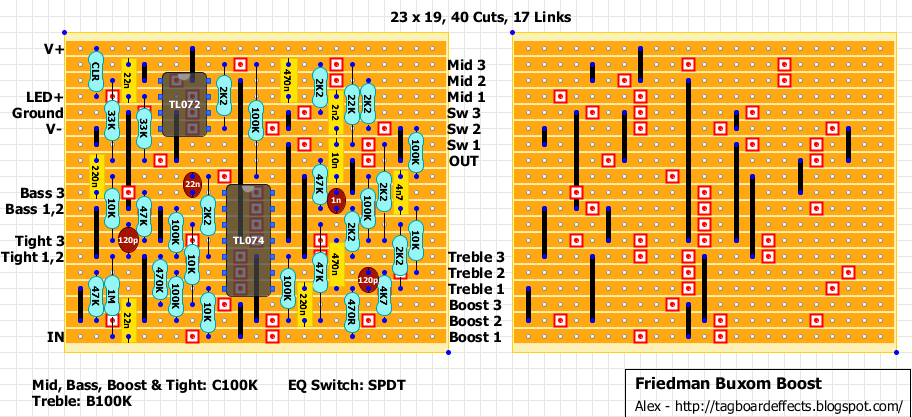

The second one without it.
You must then add the original or a regular one (not sure of the noise difference)
