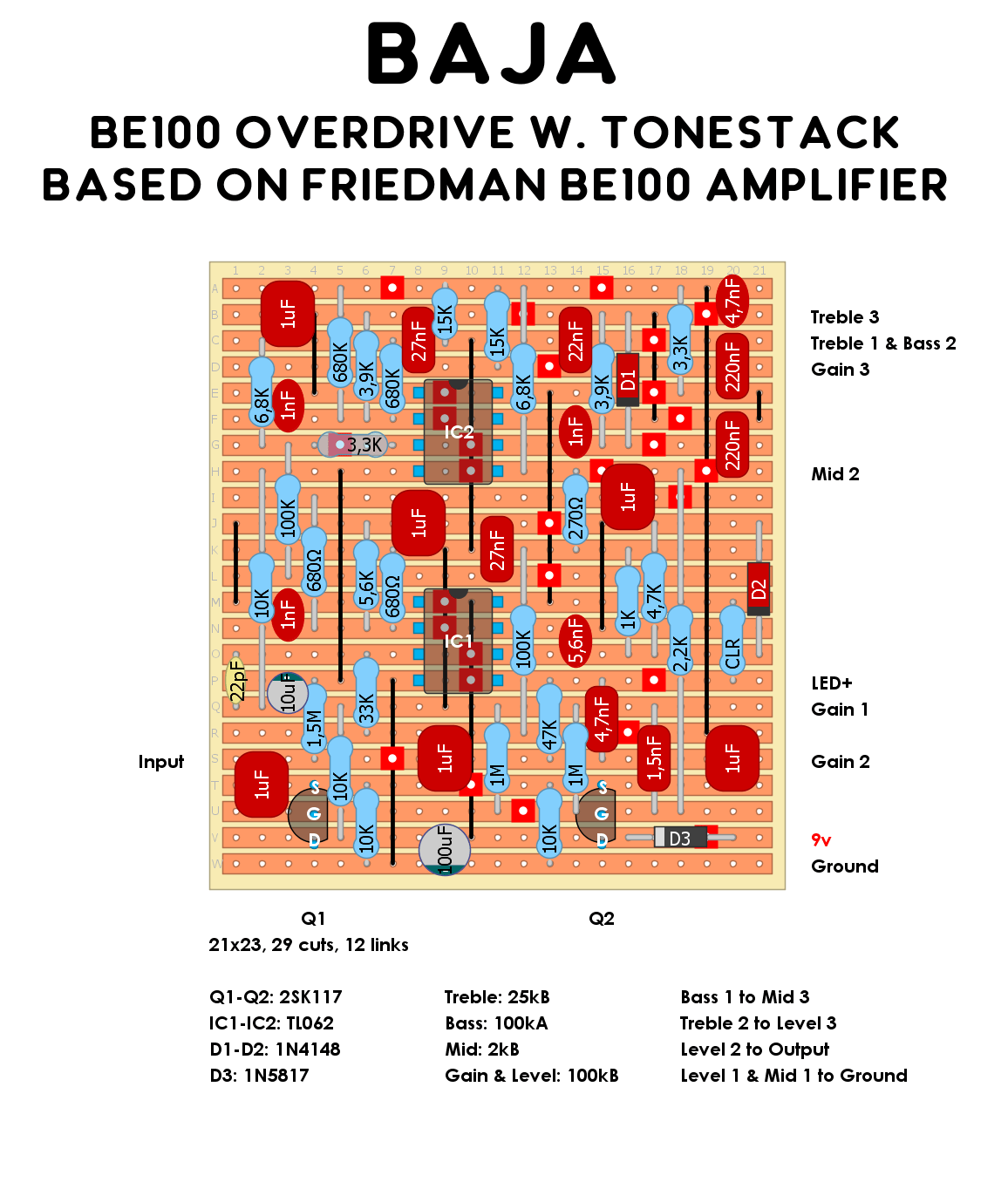

BAJA BE100 Overdrive
Based on the frequency response of Friedman BE100 amplifier. Added the tonestack at the end of the circuit. Schematic and info HERE
Friedman

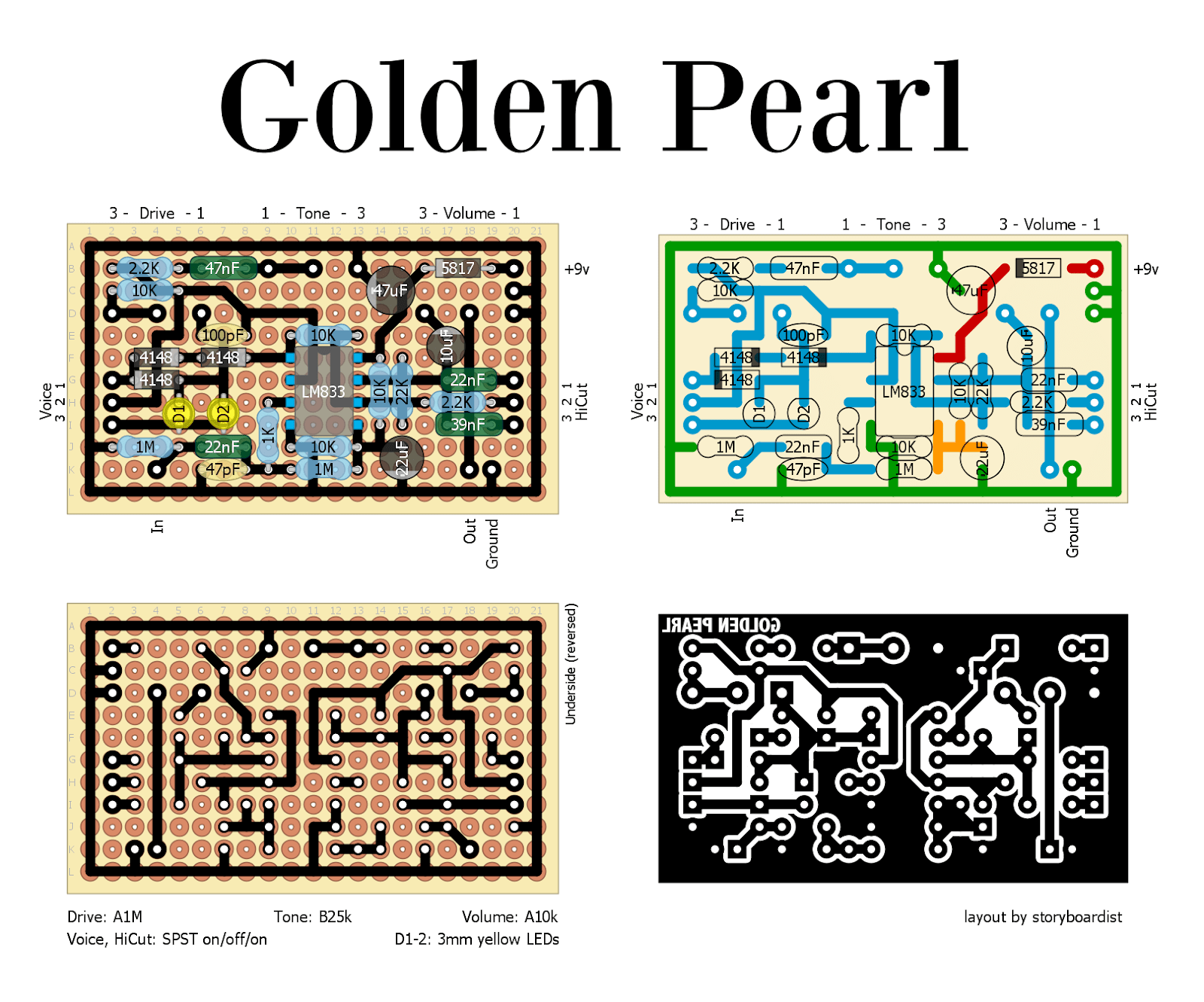

Friedman Golden Pearl Overdrive
I haven’t done a layout for a while and as this is a nice simple one I (as I like them) I thought I’d add this to the collection. After doing it I noticed that HamishR has added a layout to the forum and that one is verified. But I thought I’d still add this … Read more

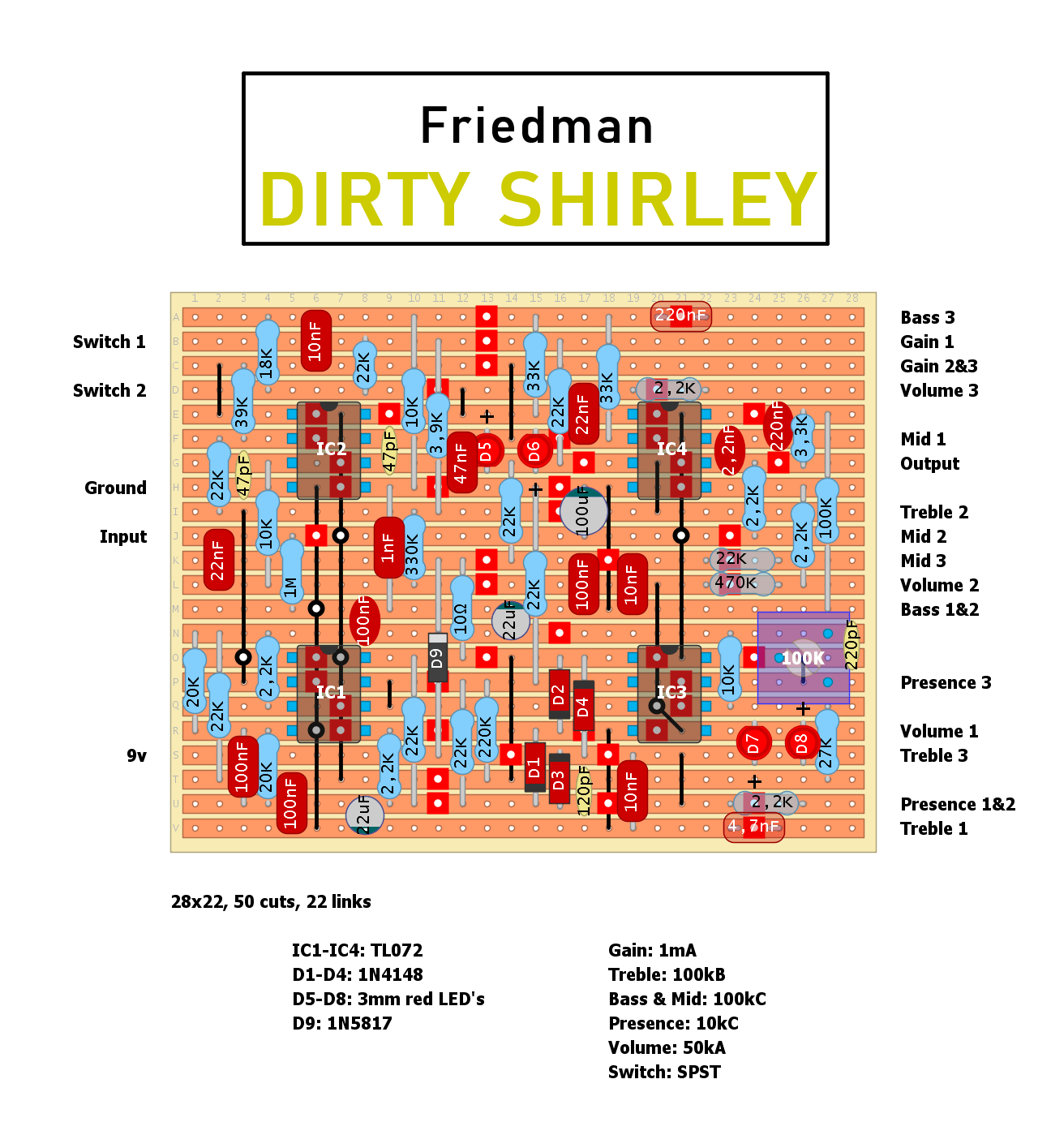

Friedman Dirty Shirley
Verified. In case of noise issues, try a higher cap value in place of 120pF. 470pF-1nF is a good starting point.

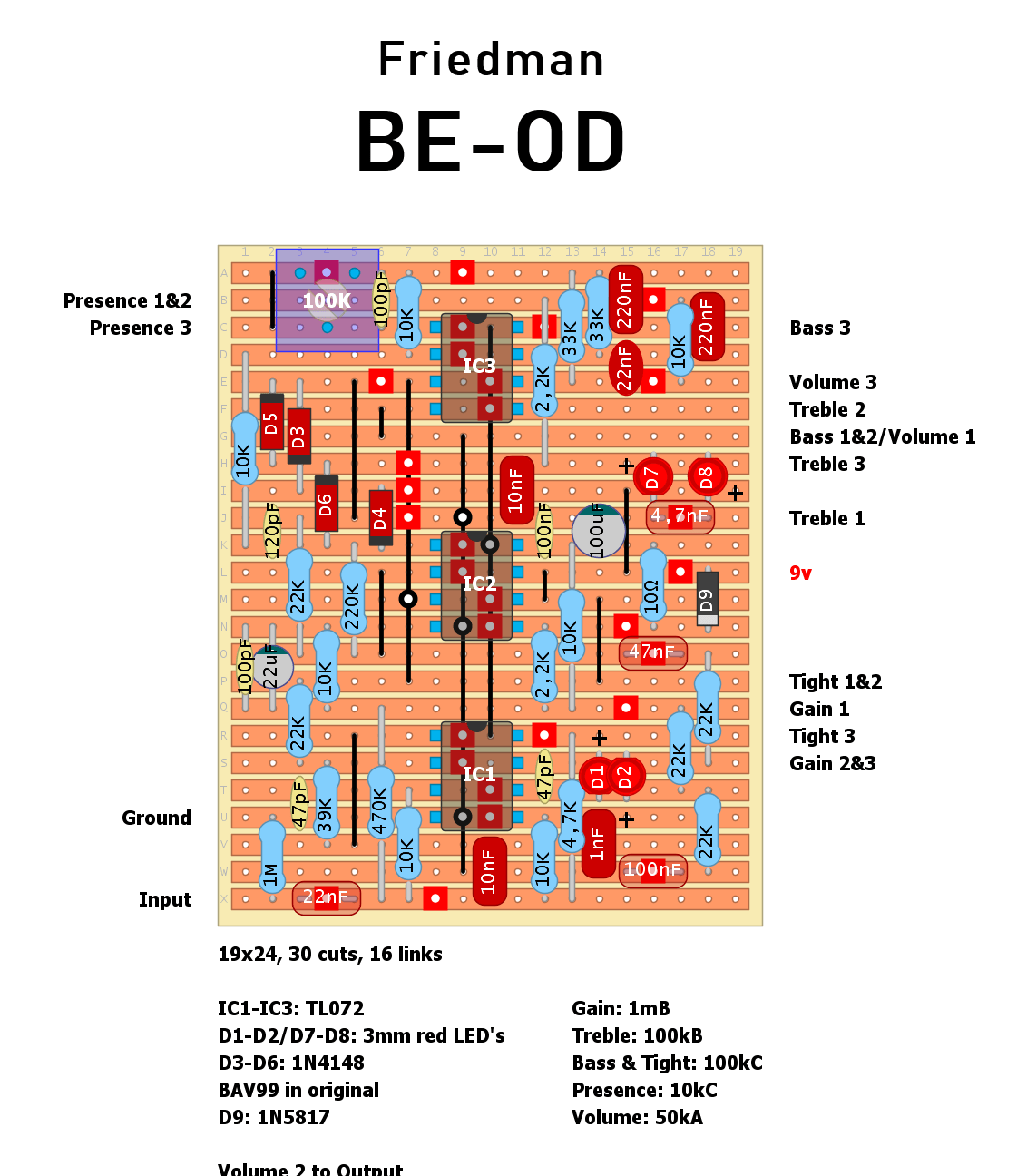

Friedman BE-OD
Verified. As most non PCB layouts of this circuit, it is quite noisy. But it is easily solved by replacing 120pF capacitor with a larger valye between 470pF-1nF. Or just put a buffer in front of it. And a layout requested by Teddeeh with transistors as clippers.

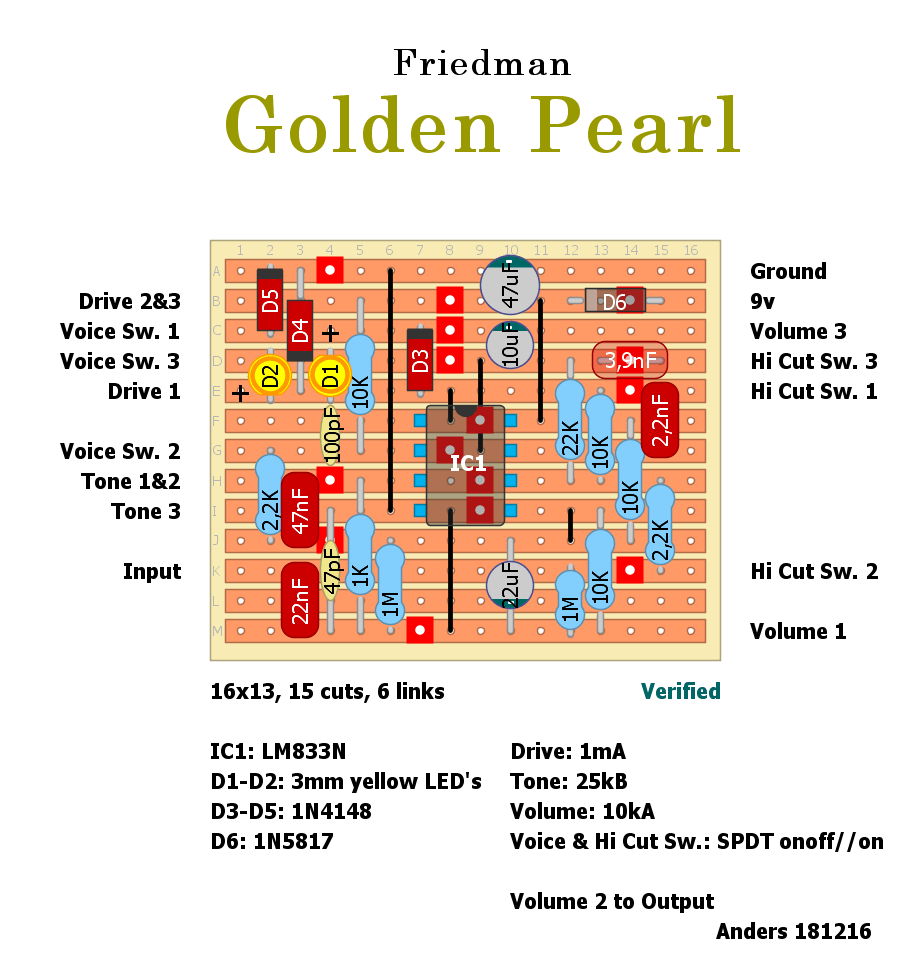

Friedman Golden Pearl
Here’s a good sounding lower gain overdrive from Friedman. Several options with this circuit with clipping and tone options on toggle switches. Fairly transparent, as they say.

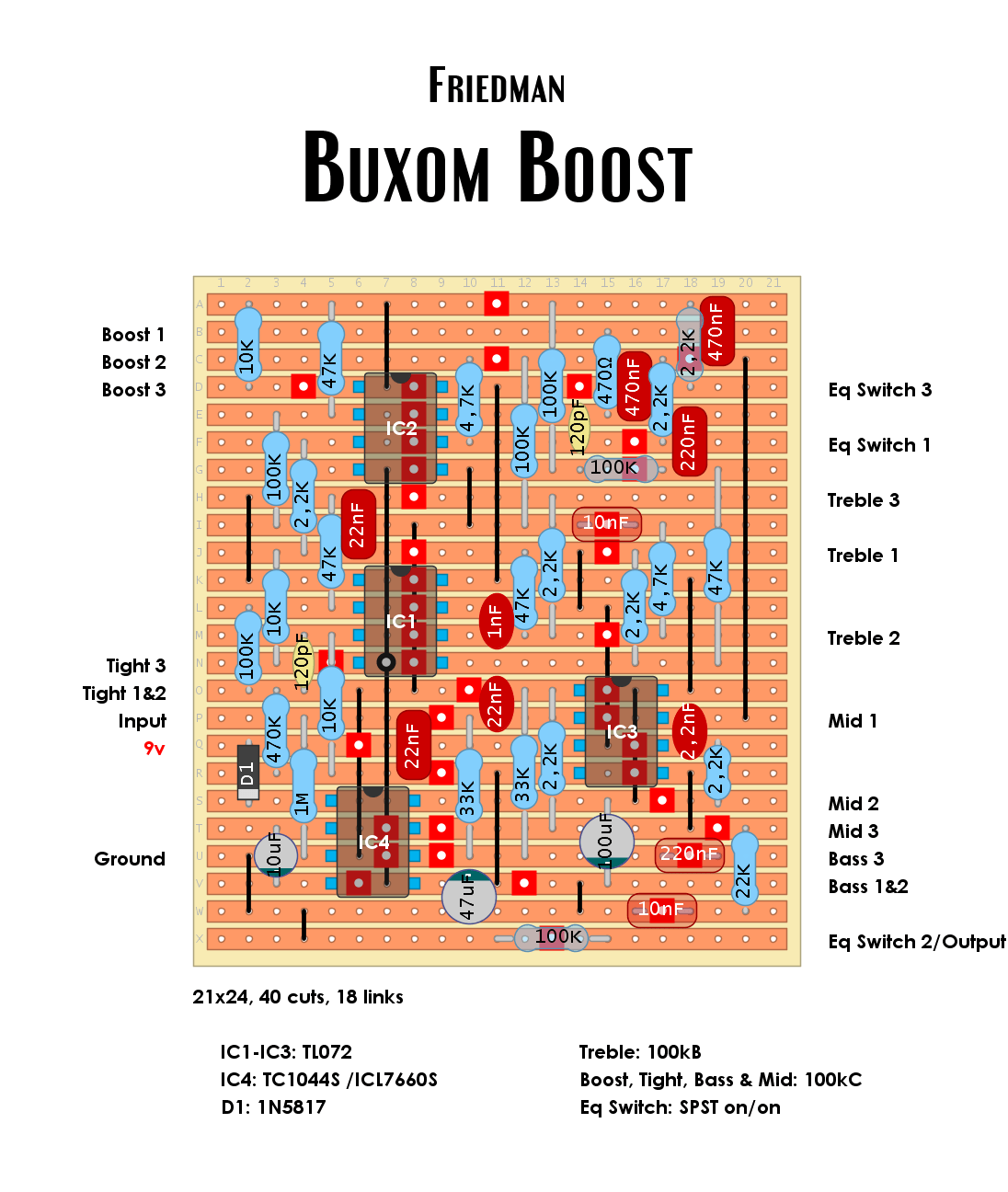

Friedman Buxom Boost
“The Friedman Buxom Boost may be the most powerful tonal solution you ever put on your pedalboard. Like its namesake amp head, this pedal pushes a pure, clean signal to conjure the absolute most from your tone. Turning the boost control is your ticket to volume increase, pushing the front of your amp for thick … Read more
Friedman Dirty Shirley
Original info: “The Friedman Dirty Shirley all-tube amp is well known for being one of the most flexible and touch-responsive single-channel amplifiers on the market. Now you can get that same tonal versatility, sensitivity and harmonically rich overdrive in a pedal. The Dirty Shirley Overdrive packs the same intuitive control set as the amplifier, allowing … Read more
