Schematic available here.

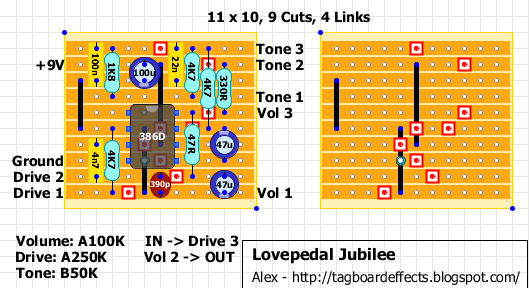

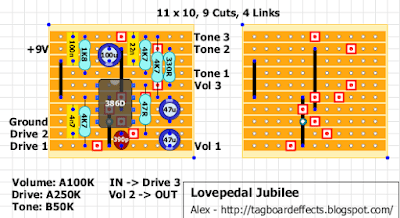

20/02 Layout updated! Changed the 47nF cap to 4n7 as suggested by Music6000
Lovepedal Jubilee
Tools, Tones and Toys for Guitarists
Schematic available here.
20/02 Layout updated! Changed the 47nF cap to 4n7 as suggested by Music6000
