From the Source:
The
Strange Master treble booster now includes both Germanium and Silicon
transistors. These transistors are switchable so the user can now get
classic Dallas Rangemaster treble booster Germanium tones and higher
gain Silicon treble booster tones from one pedal!
ThroBak guitar effects pedals offers another classic Signature Sound effect with the Strange Master Treble Booster, a recreation of the Germanium Dallas Rangemaster Treble Booster used by Eric Clapton, Brian May and Tony Iommi.
In
keeping with our ThroBak Guitar effects pedals Signature Sound
philosophy Strange Master treble booster offers user adjustments to
shape the sound of this effect. Jimmy Page, Jimi Hendrix and Brian May
had Roger Mayer and Peter Cornish customize their effects to create
their own signature sound. We give this control to you.
As
far as we can tell we are the only company offering a Dallas Range
Master clone with a bias adjustment. This allows you to change the
character of treble boost from loose to tight. Switchable range allows
treble boost and mid boost germanium distortion. Recreate the Clapton
Beano tone or the singing overdrive of Brian May to the growl of Tony
Iommi with this pedal, its all in there.

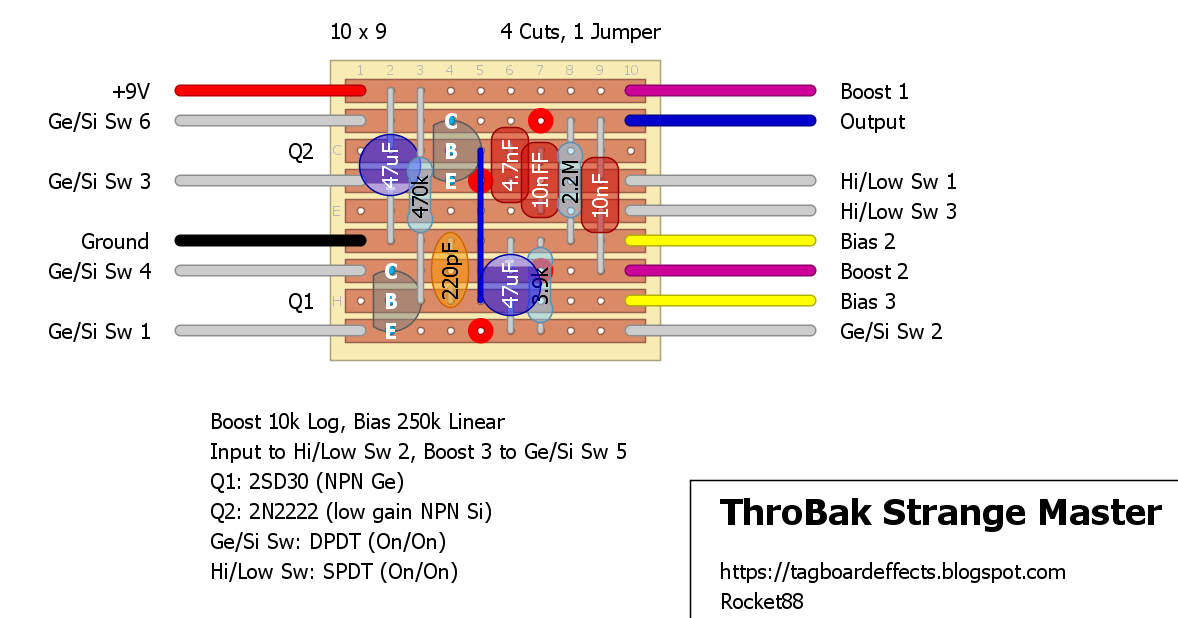

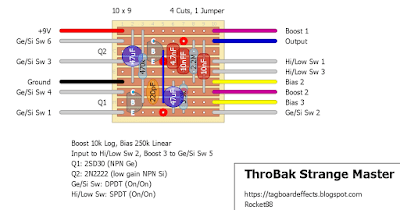

Basically, the Strange Master is a Rangemaster with a switch allowing you to selecting between 2 input caps (Treble and Full)
and another switch to select between transistors (Germanium and Silicon), and a bias pot to adjust the bias either between the germanium and silicon transistors or give it a little grit.
Keep in mind that the gain of the transistors is going to be paramount in getting it to sound good. I would suggest looking for gains in the 100-120 hFE range
for the germanium (just like a regular rangemaster), and something around 250 hFE for the silicon. Also you can play with the input and output caps to get more or less bass. You can also change the Hi/Low switch for a pot to give you a sweep between the 2 input caps.
