BAJA Ampeg SVT Bass Pedal cff983f77d0a

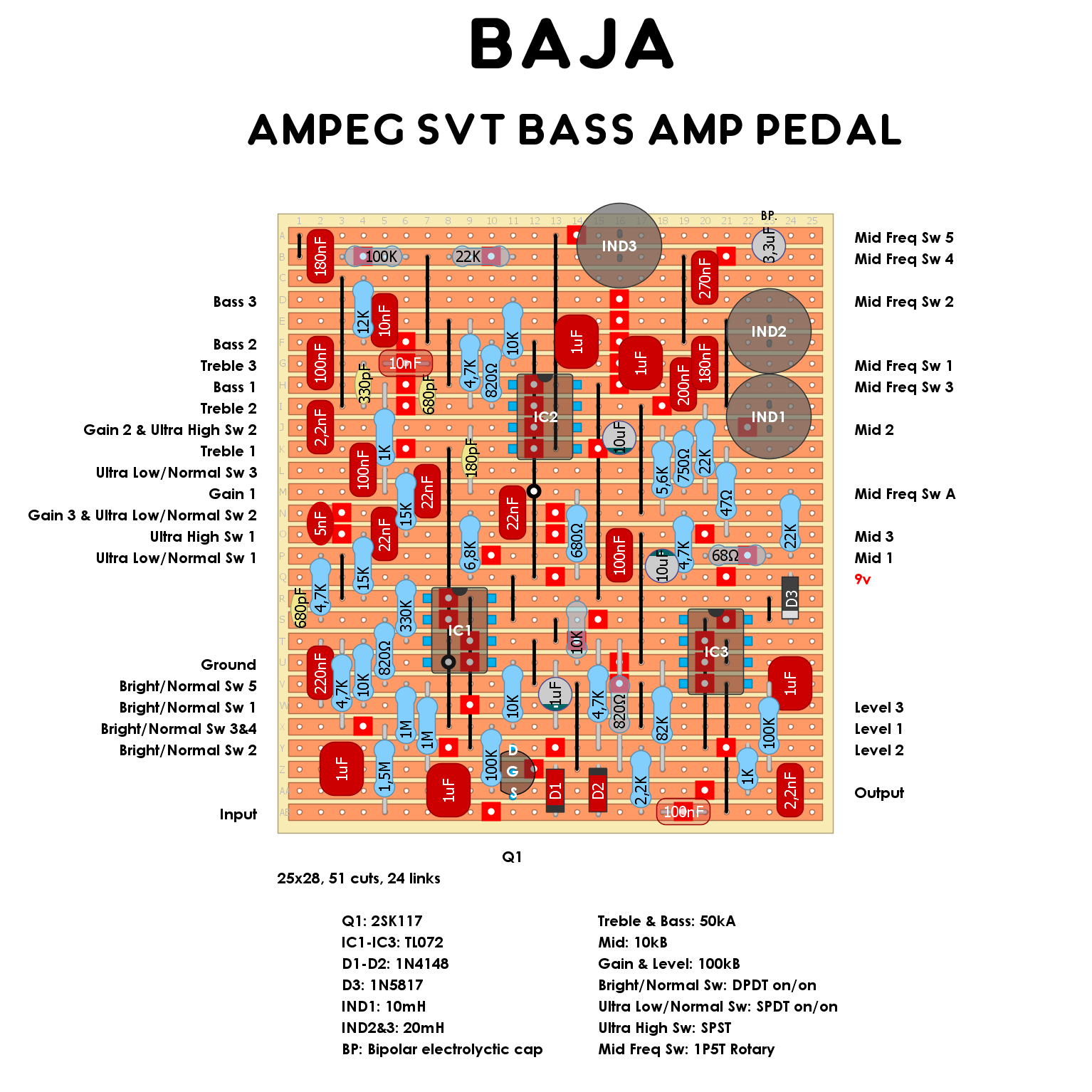

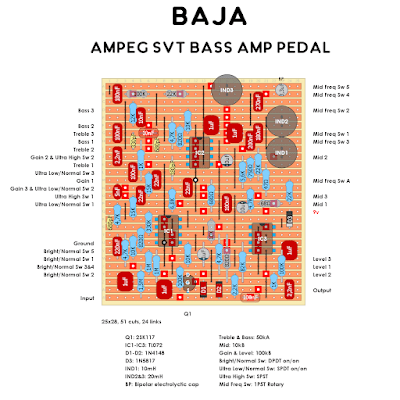

BAJA Ampeg SVT Bass Amplifier Pedal

13 Jun 20266 Mar 2020 by chords

Schematic and lots of info at FSB

Categories Uncategorized Tags Amp Emulator, Ampeg, Baja, dirtboxlayouts, DIY Designs, Verified

BAJA UBS Overdrive
