BAJA EVH 5150 Overdrive w. MTKs gain mods
MTK have done some great work on the BAJA 5150 OD circuit to squeeze more gain out of it. And a short video clip. stock settings in the first 20 seconds, after that, the modded settings.
Baja
BAJA BE100 Overdrive
Based on the frequency response of Friedman BE100 amplifier. Added the tonestack at the end of the circuit. Schematic and info HERE

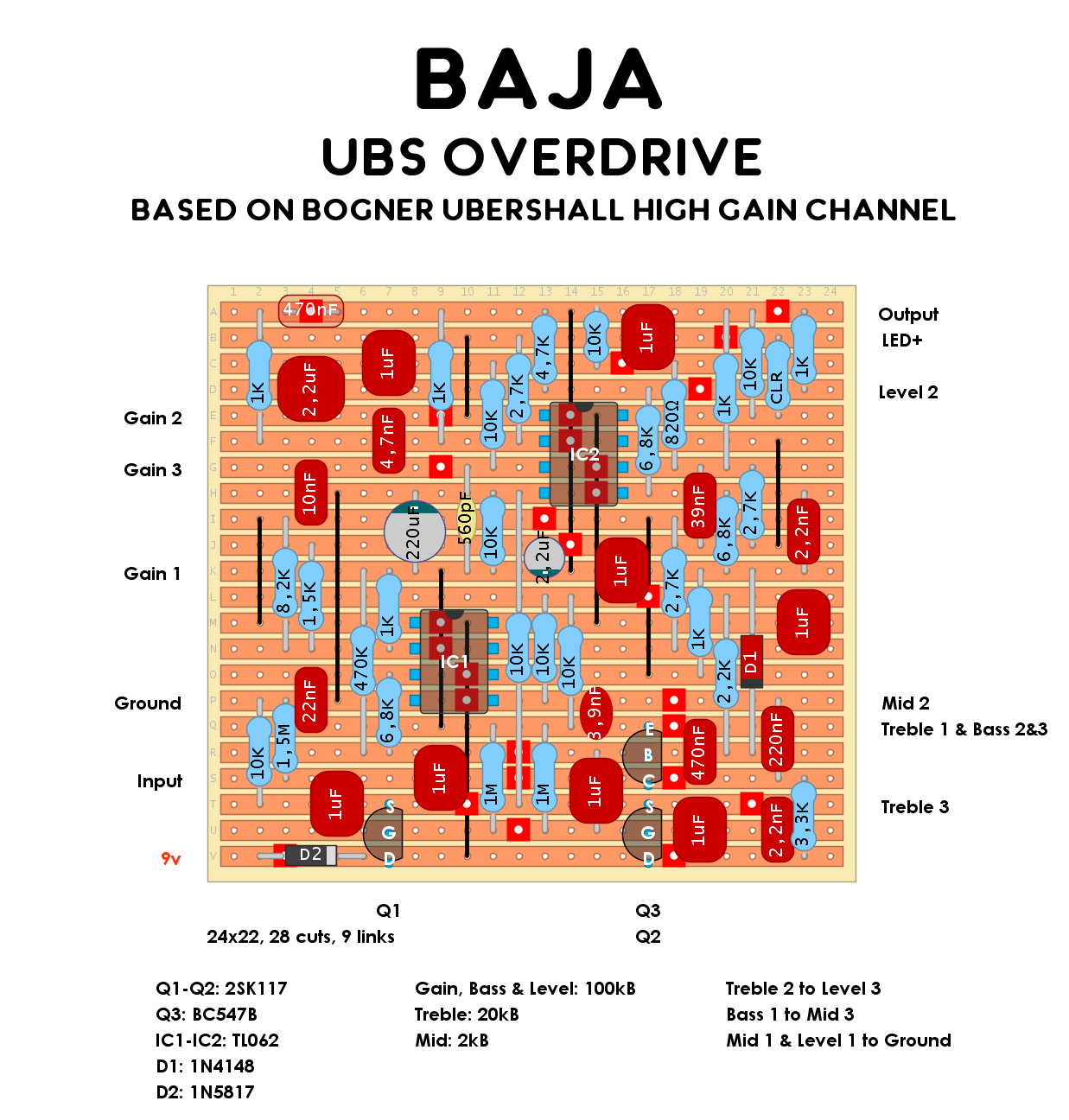

BAJA UBS Overdrive
Schematic and info HERE *Edit 200726* Now verified. *Edit2 200802* Uploaded the the verified layout. Thanks to brianhujung for pointing it out.

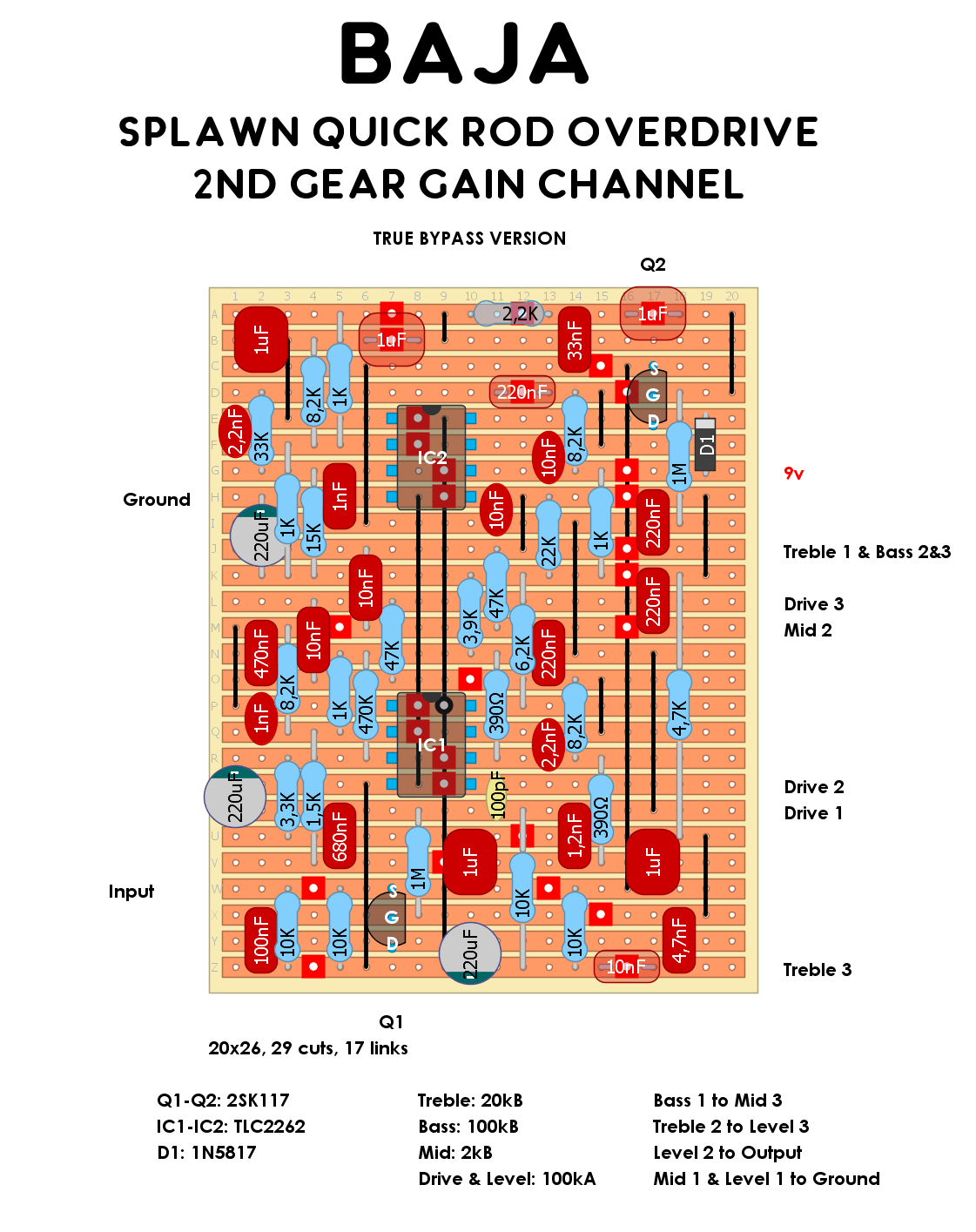

BAJA Splawn Quick Rod Overdrive
Schematic and info HERE Verified and it is a good sounding Marshall in a box overdrive/distortion and one of the more convincing ones I’ve tried.
