German Tooth Fuzz

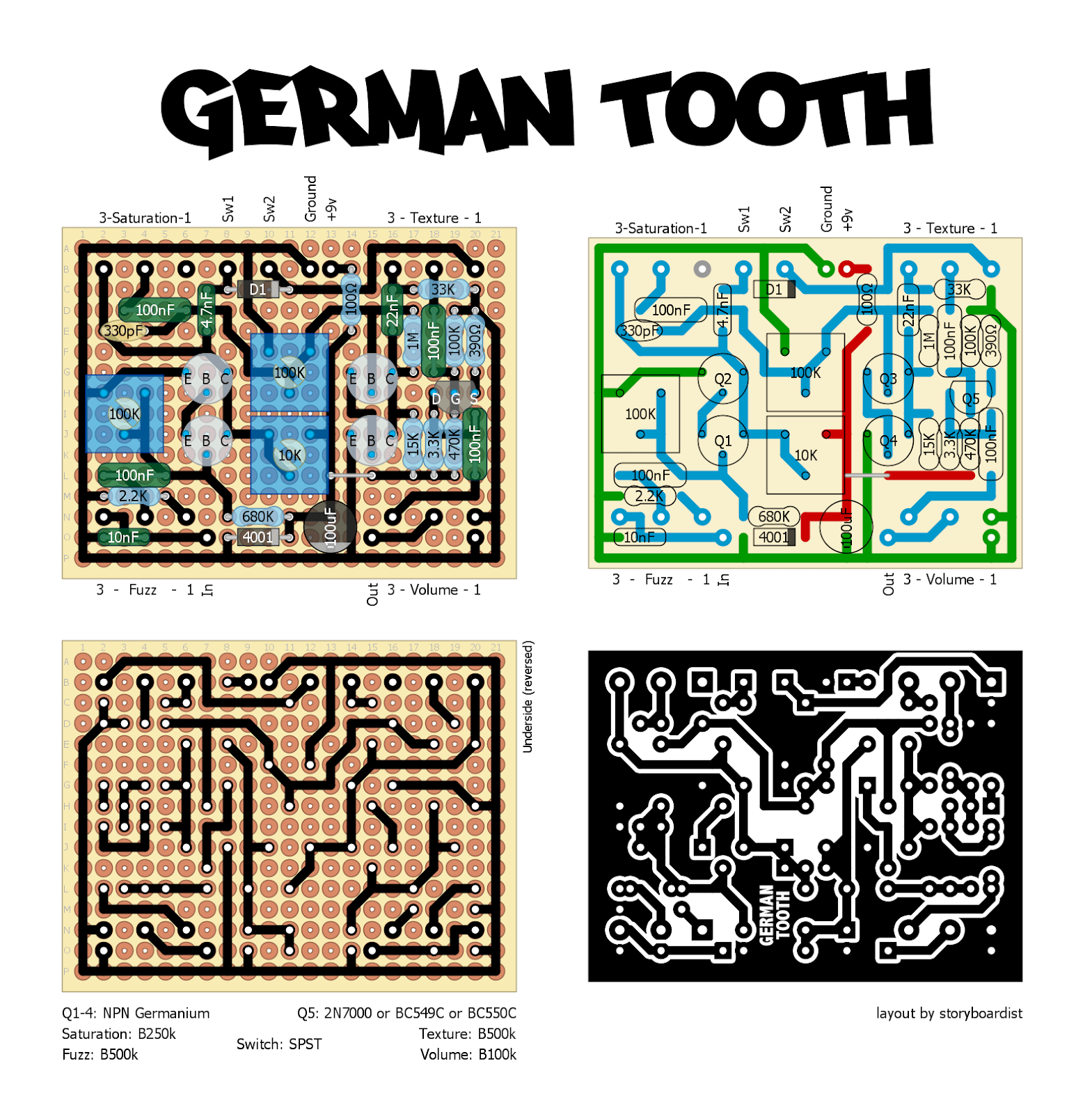

If you’ve got a bunch of NPN germanium transistors kicking around, this Fuzz Friday’s for you. Here’s Zzoyd’s adaption of the Basic Audio Spooky Tooth for use with germanium transistors. The first 2 stages each use 2 germaniums in a Darlington pair, with the 3rd stage using either a 2N7000 MOSFET or an NPN silicon … Read more
Voodo Lab Superfuzz

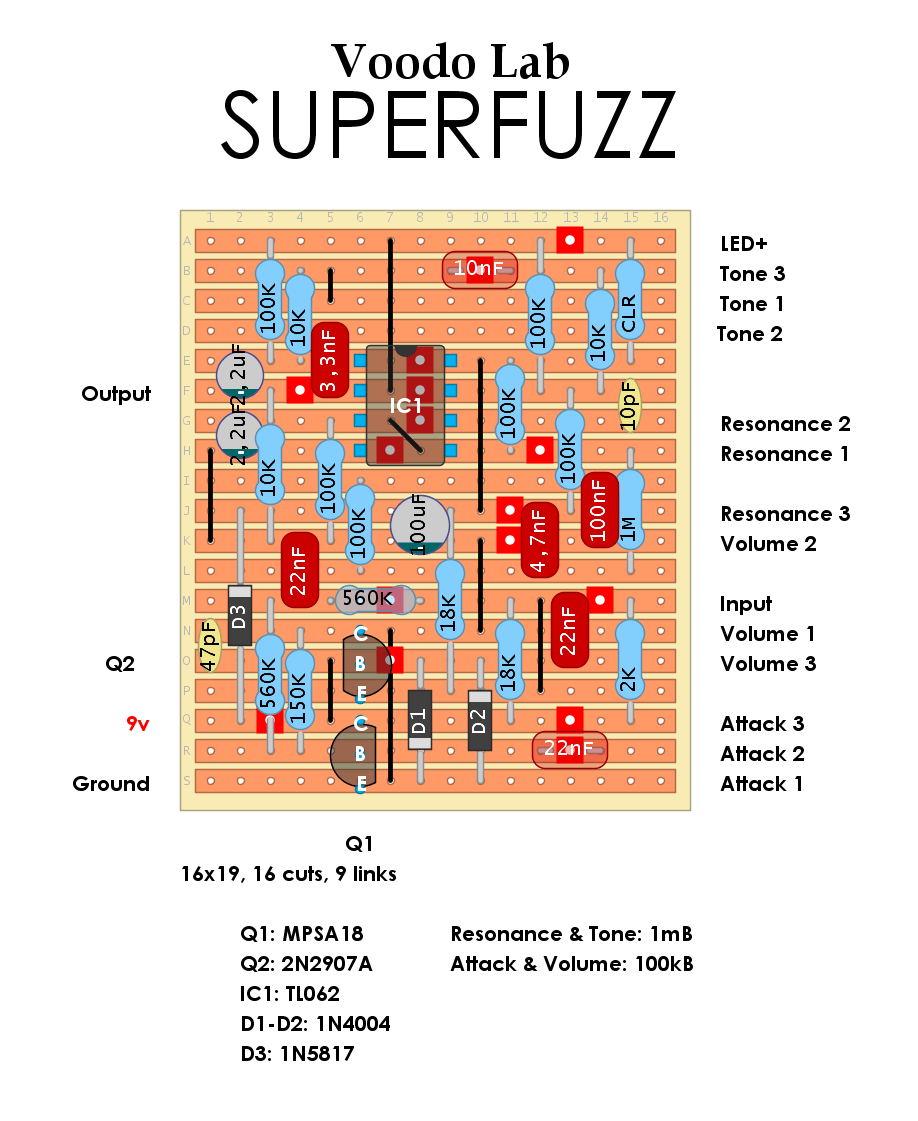

Updated layout 200514. Original schematic had a few bugs. Layout corrected with 47pF cap and flipped 2N3907A transistor.
DOD Death Metal Eq
Got a request for this one a while ago. Looks like a more versitale alternative to Boss HM2 eq. original has transistor gyrators but I went with op amps for less space and smaller parts count. Here is demo video by MTK comparing them through a Revv G4 clone.
Frantone Lo-Tone Classic Fuzz
Here’s an interesting one from Frantone for Fuzz Friday. Think the first half of a Big Muff into an LM386. Schematic over on FSB here.
Covid-19 update
Hi there!. Hope everyone is ok out there during these strange times. Just wanted say that due to covid-19 I got lots to work to do and simply don’t have the time and mostly of the time I don’t have access to the blog. I will post at least one new layout a week and … Read more
