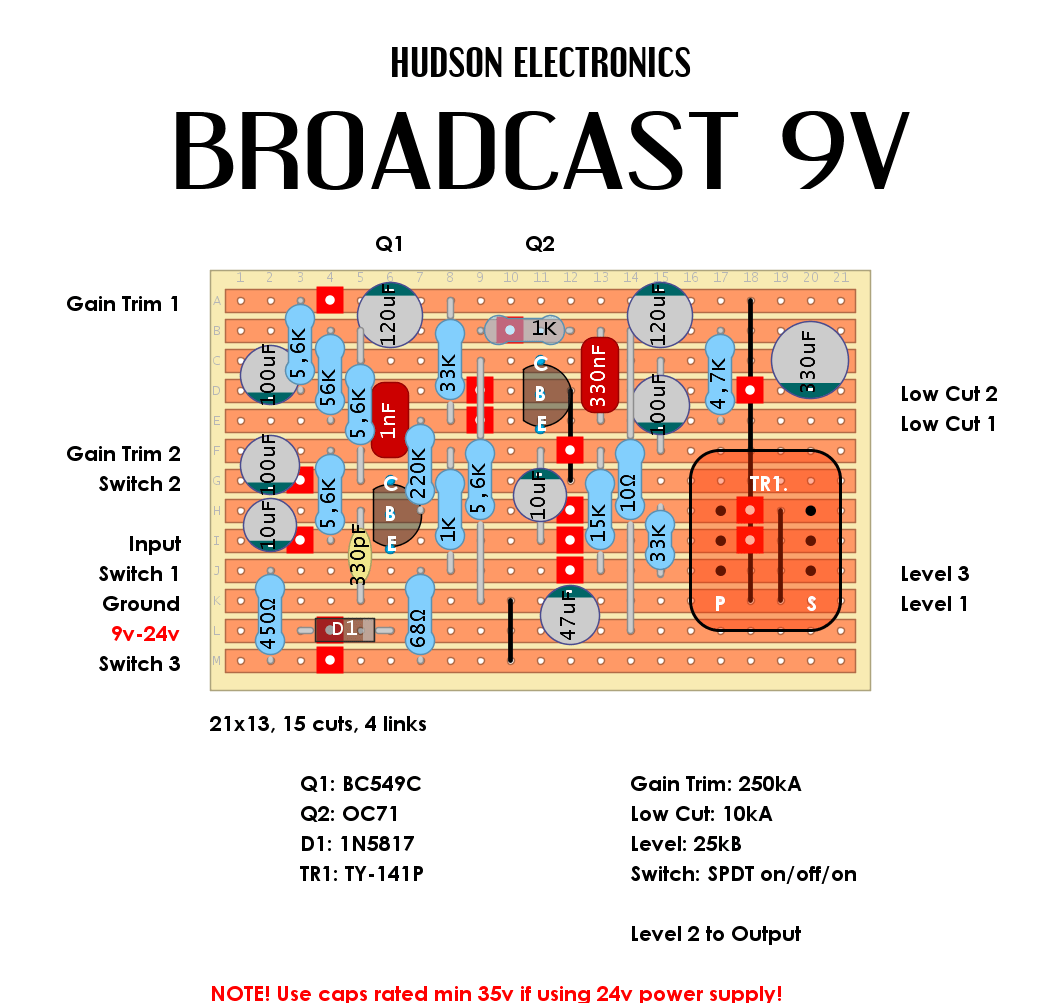

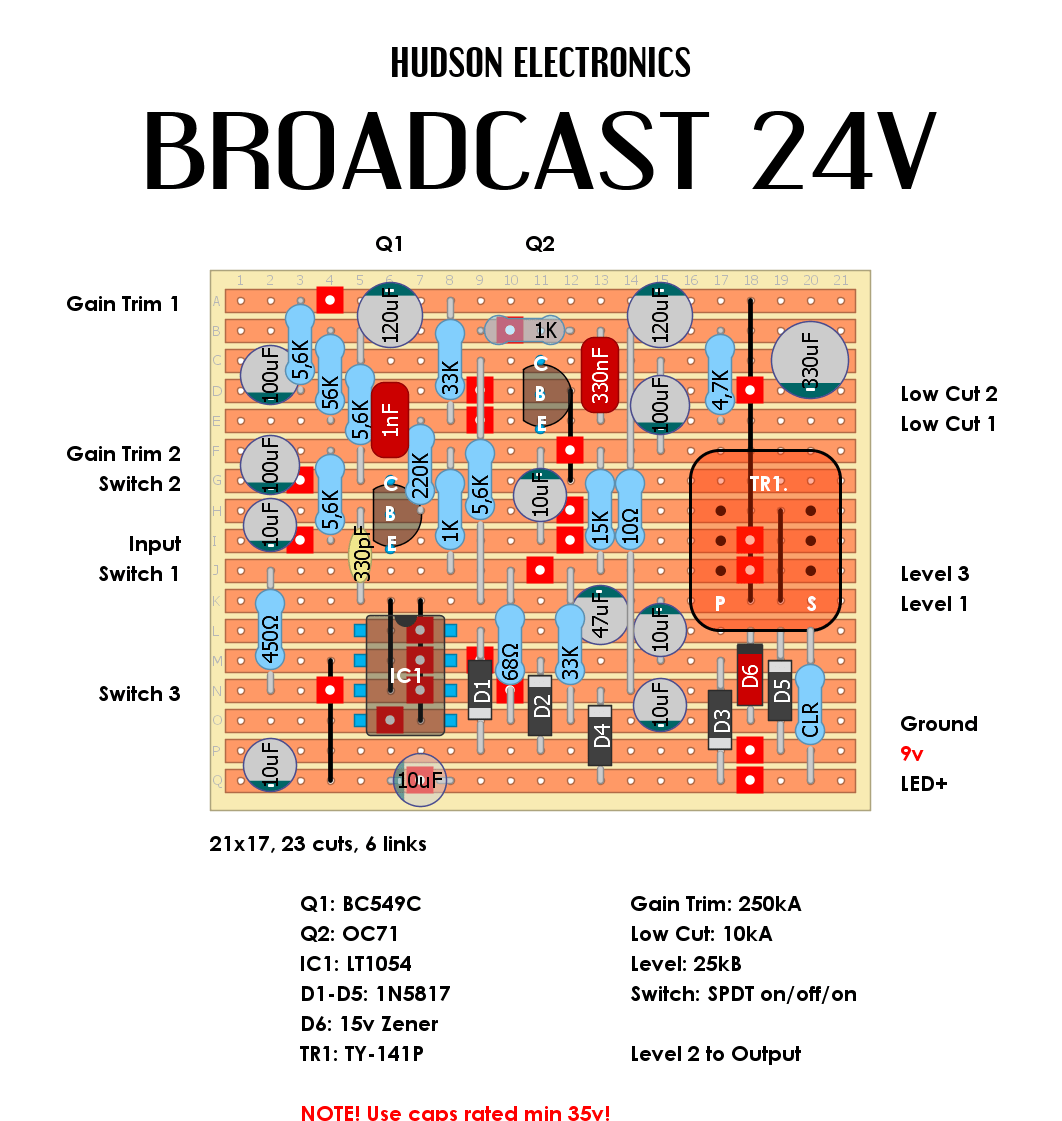

Hudson Electronics Broadcast 9v/24v 4 Jun 202613 Oct 2020 by chords This pedal comes in two options, one that has an onboard charge pump for 24v operation and one without so here is two layouts for it…. *Edit* 9v version is now verified.
