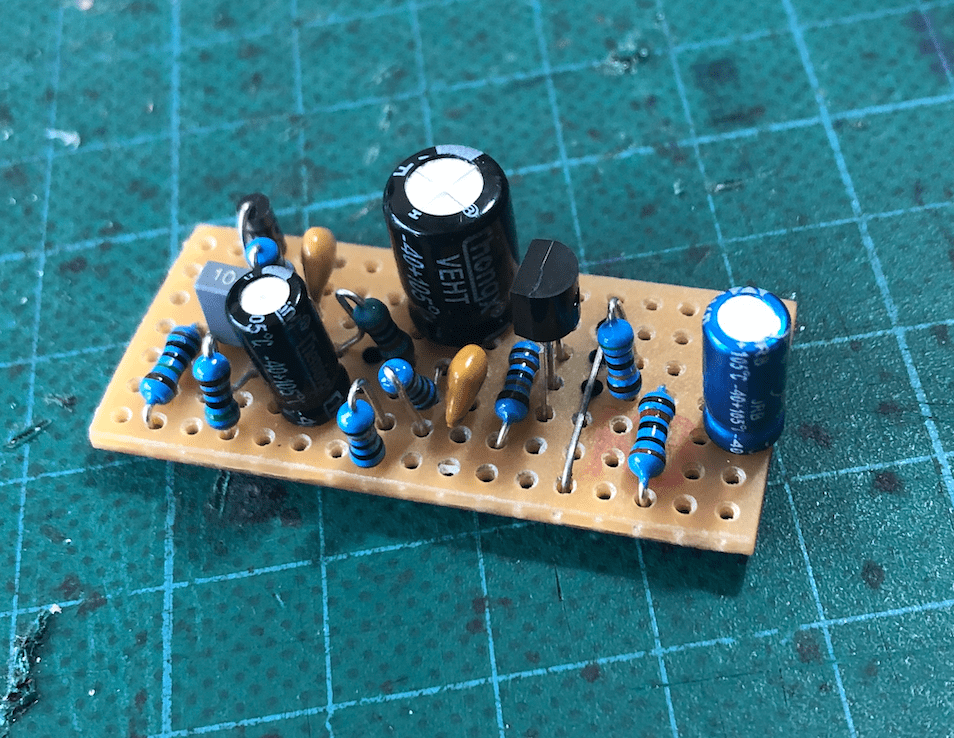

Just a little Cornish buffer that I use for buffered bypass / Pete Cornish builds. It’s small enough to sneak in at the bottom of an enclosure below the foot switch or standing upright against the side.

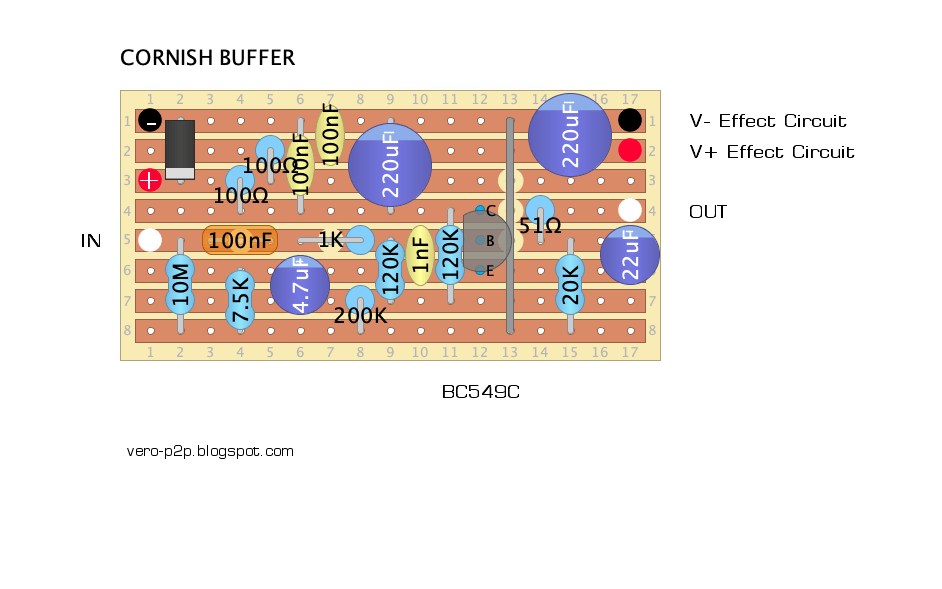

PETE CORNISH BUFFER – VERO LAYOUT
I sometimes add an extra row for additional power filtering – for the circuit that it’s buffering, and there’s still just enough room to fit a LED resistor on the board (will need an extra cut, and maybe relocate the diode – I’m sure you will work it out).
