I’d created a layout for the Pete Cornish P-1 about four years ago, based on best guesses as to what this said to be – a Rams Head Big Muff. I was kind of close, but here’s a layout from a very reliable Aion FX trace. If you want to see where it sits in … Read more
There’s been so much speculation about the G2, over many many years. Aion FX has traced two versions of the Pete Cornish G2, so hopefully this is the end of some very long threads on various forums. Long story short, one version is very close to all of the mods that everyone has been doing for … Read more

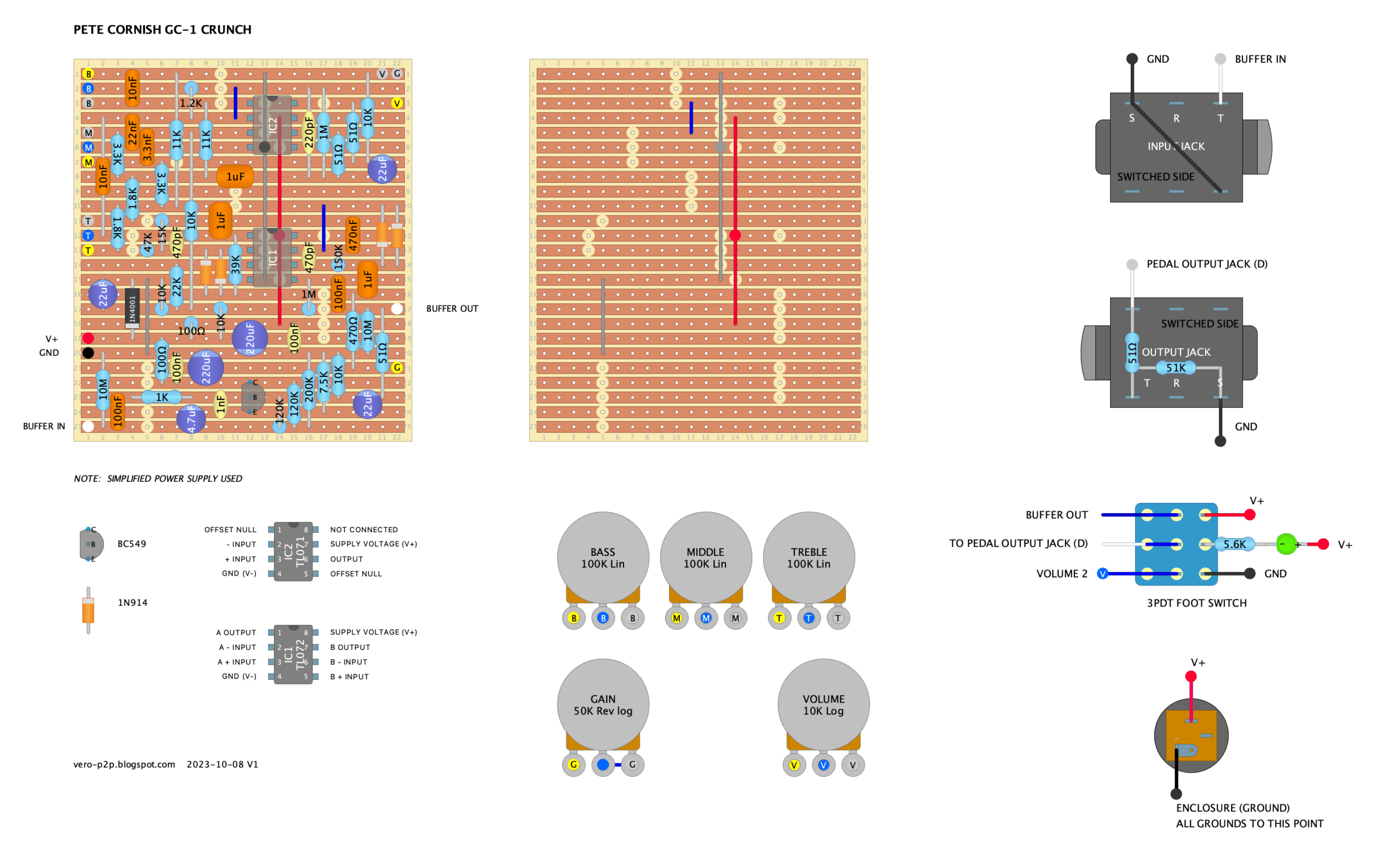

Another from the recent Aion FX Pete Cornish traces – this time it’s a variation of the CC-1 Crunch, the CG-1. Same layout, just a few value changes here and there. It will sound a little different to the CC-1, but not substantially. I quite like the CC-1, especially with an added mod to dial … Read more

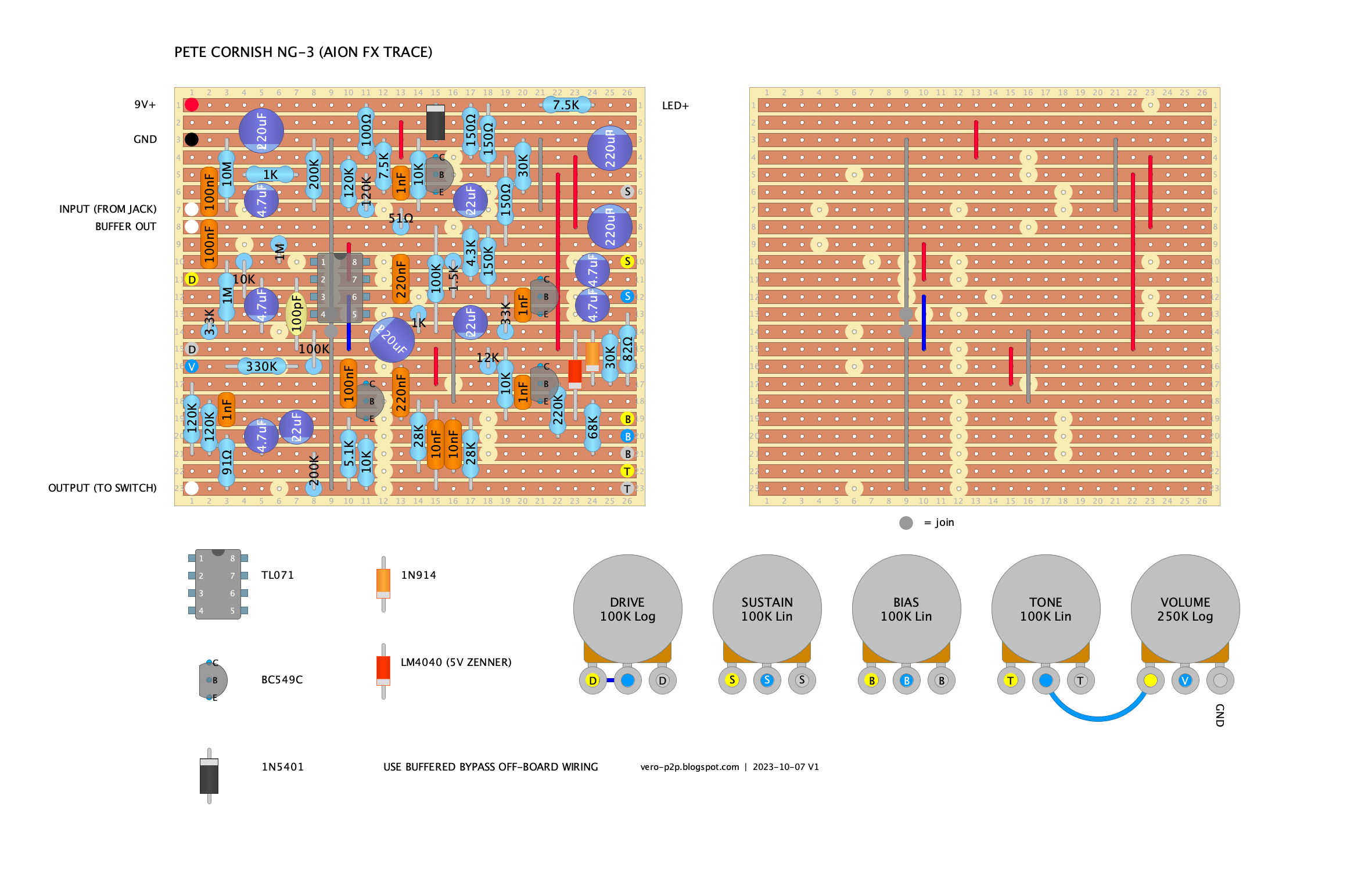

Aion FX recently traced a few more Cornish pedals – and the NG-3 trace was was a real surprise package. It was thought to be a NG-2 with an external bias control. It’s nothing like the NG-2 trace by Pedal PCB – not even close. I did have a vero layout for the NG-3 … Read more
So the mysterious P-2 has finally been traced, care of Aion FX (thank you). I had previously posted a guess as to what this might be, and I wasn’t too far off. Here’s the same layout with confirmed values. PETE CORNISH P-2 – VERO LAYOUT
I followed a vaguely similar layout to the one pictured at the bottom of the post for the Pete Cornish TB-83 Treble Booster. This is a straight treble boost using a silicon transistor – it’s going to sound horrible into anything apart from a cranked valve amp, or maybe a valve based pedal. Given … Read more

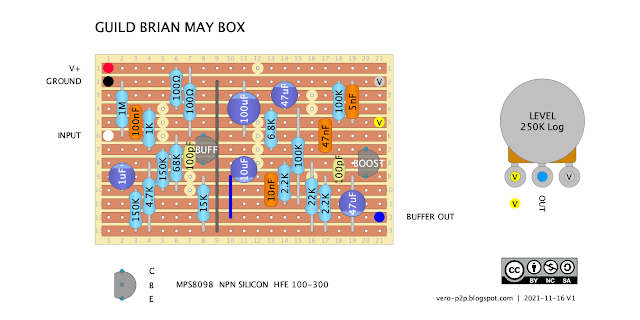

The layout is for the Guild Brian May Box, which on the Guild schematic is marked as designed by Pete Cornish, but he has disputed this. There’s a massive write-up here on Fryer Guitars, including photos of inside Brian May’s Pete Cornish built pedal board, and inside a pretty vintage looking Pete Cornish treble boost, which … Read more
Details of this project can be found here – as I started with a modded Pete Cornish SS-2 using the Joe Davvisson diode-compression op-amp, and then moved on to this. Essentially the same as the SS-2, but with the addition of a lo-cut. After a bit of testing, I’d suggest a C50k for the sustain … Read more
This is a Pete Cornish SS-2 using Joe Davisson’s diode-compression op amp. It sounds pretty good – a lot like the regular SS-2, but without any distortion artifacts on sustained notes as it fades outs. It’s also quieter in terms of noise. This one is getting boxed up, and now I want to try a SS-3 … Read more

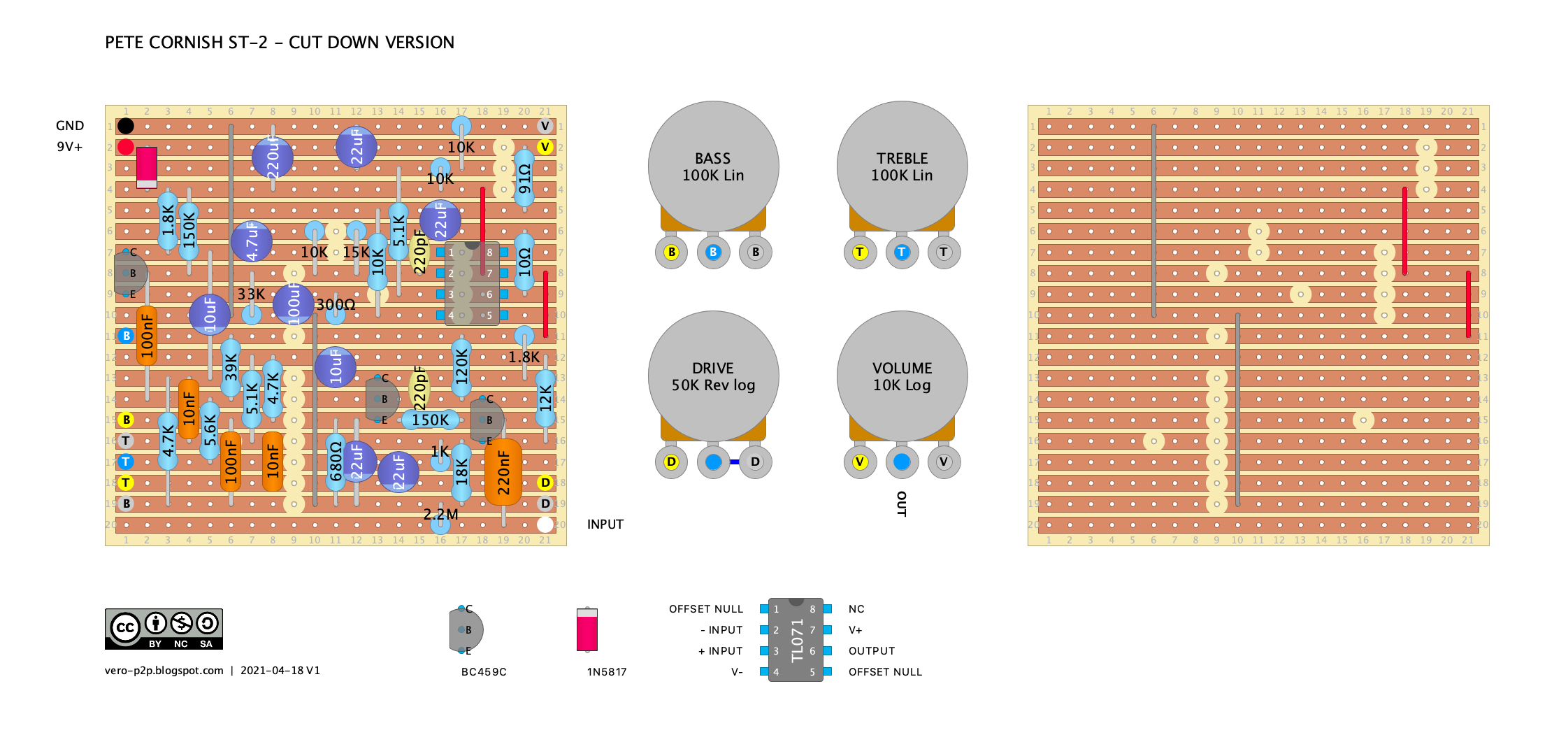

This is a simplified version of a Pete Cornish ST-2 (based on the Colorsound Overdriver). I did the full layout, and it it kind of large, and double buffers are not for everyone. So no buffers, and the power supply filtering is simpler. I’m sure the proper Pete Cornish version is probably better, but if you prefer something smaller and simpler, … Read more
