D*A*M: Buzzotron, Schematic

by

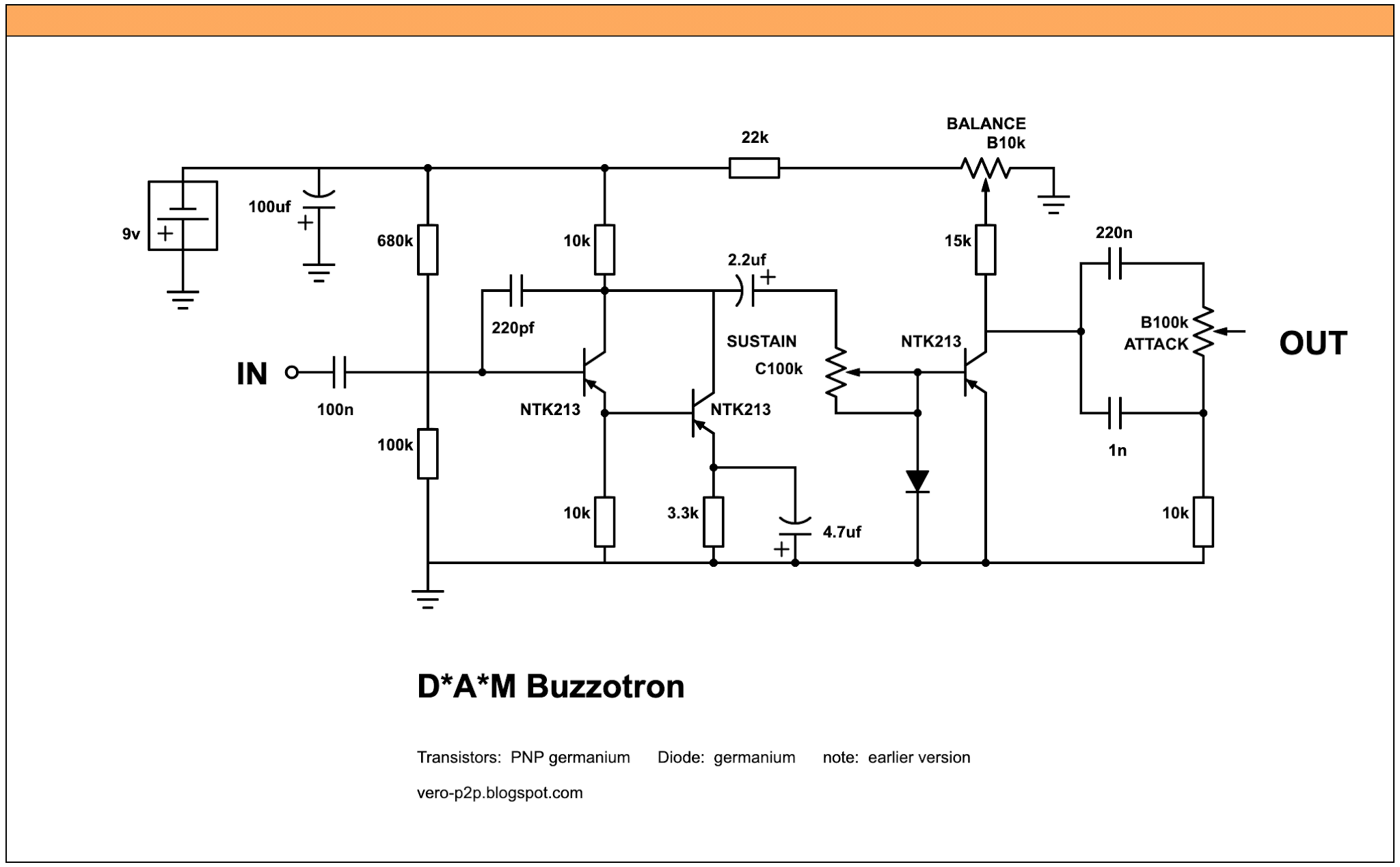

 D*A*M BUZZOTRON – EARLIER VERSION SCHEMATIC

D*A*M BUZZOTRON - EARLIER VERSION SCHEMATIC

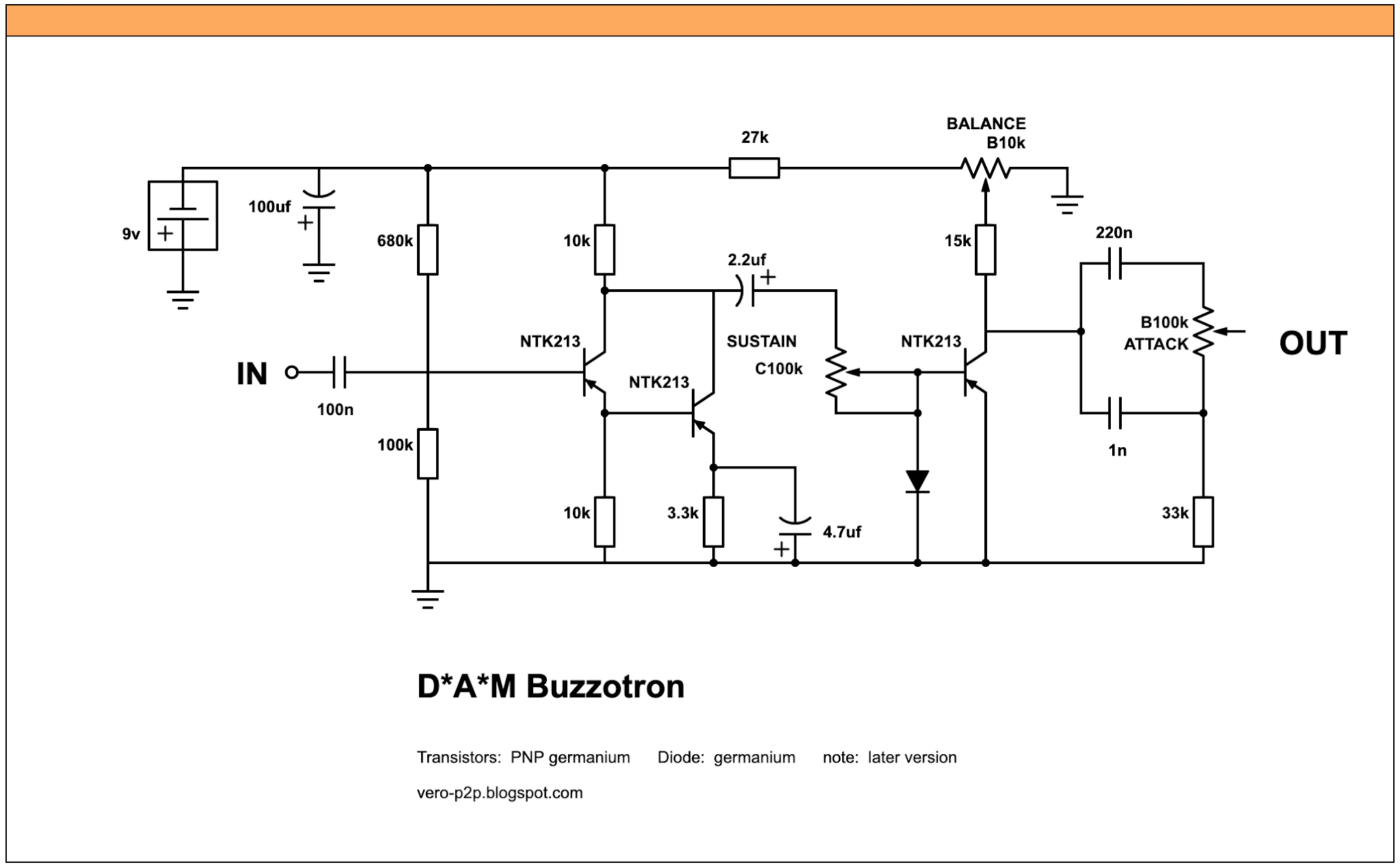

D*A*M BUZZOTRON – LATER VERSION SCHEMATIC

27k instead of 22k resistor to Balance pot and 33k instead of 10K resistor from 1n on the Attack control to ground (lowering the filter frequency)

D*A*M BUZZOTRON - LATER VERSION SCHEMATIC
