D*A*M: Red Rooster Booster, Tag Board Layout

by

While I was thinking of what could be made with tag board off-cuts, this popped into my head.

The D*A*M Red Rooster Booster is probably my all-time favourite booster – I’ve only ever made one, and it was so good I stopped there (it was a point-to-point npn version with trimmer).

This is a PNP version; the 3k9 resistor could be swapped for an upright/inline trimmer.

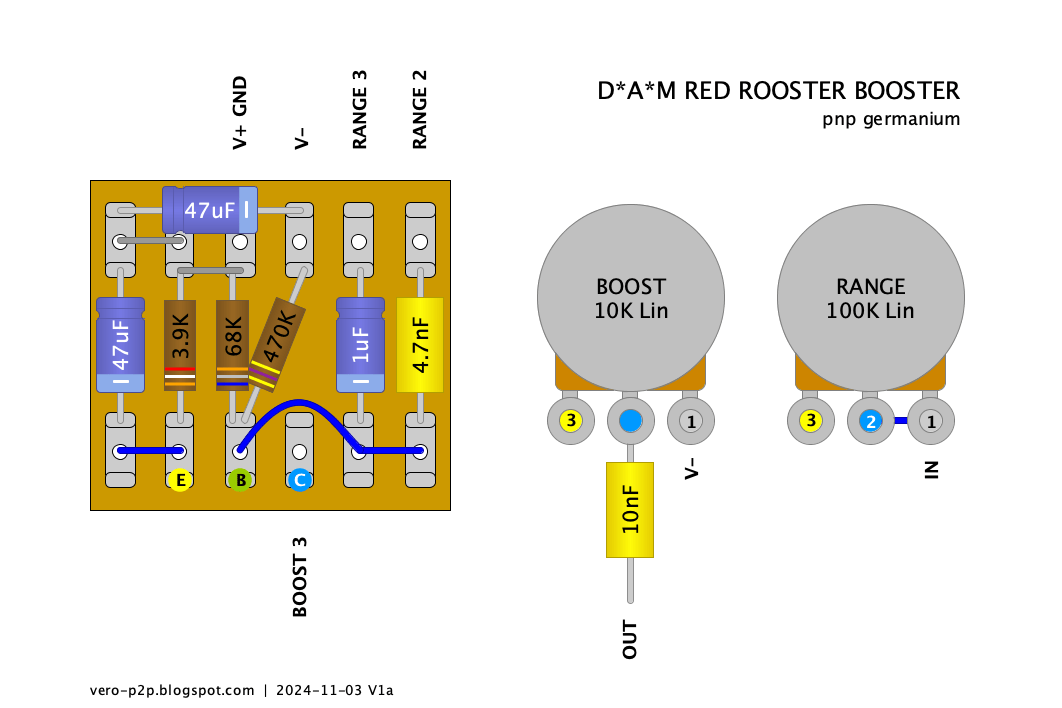

D*A*M RED ROOSTER BOOSTER – TAG BOARD LAYOUT

D*A*M RED ROOSTER BOOSTER - TAG BOARD LAYOUT

Fun fact: In Australia Red Rooster is the name of a cheap roast chicken franchise.
