Since I’m doing boosters at the moment – the D*A*M Supa Rooster. I’d suggest placing a 1m resistor on the input and output if you get switch pop – a lot of people do this all the time for their rangemaster type circuits. If you want it to look true to the original, use … Read more
It’s no secret as to what the R2R Electric germanium preamp is based upon, which is an old and very rare Hofner preamp. The Hofner is a full-range germanium booster, which was once used as a way to plug guitars into old console radios way back in the day. As this is a simple Rangemaster style … Read more
Here’s a simple Rangemaster treble booster. I’m jotting down some notes from my recent builds because I really dig this layout. I used a 1590BBS enclosure and an 8-way tag strip. It’s pretty similar to the Pigdog Eel Pie layout, which inspired my design. Inside, you’ll find a Mullard OC71 transistor. But honestly, the specific … Read more
Just a Rangemaster with a rotary switch for selecting input capacitors – it uses some odd parts, as this is what was available in my local electronics store – the 5 lug tag strip in particular, a regular Rangemaster is on 6. It’s also a slightly odd rotary, but it was all that was left … Read more

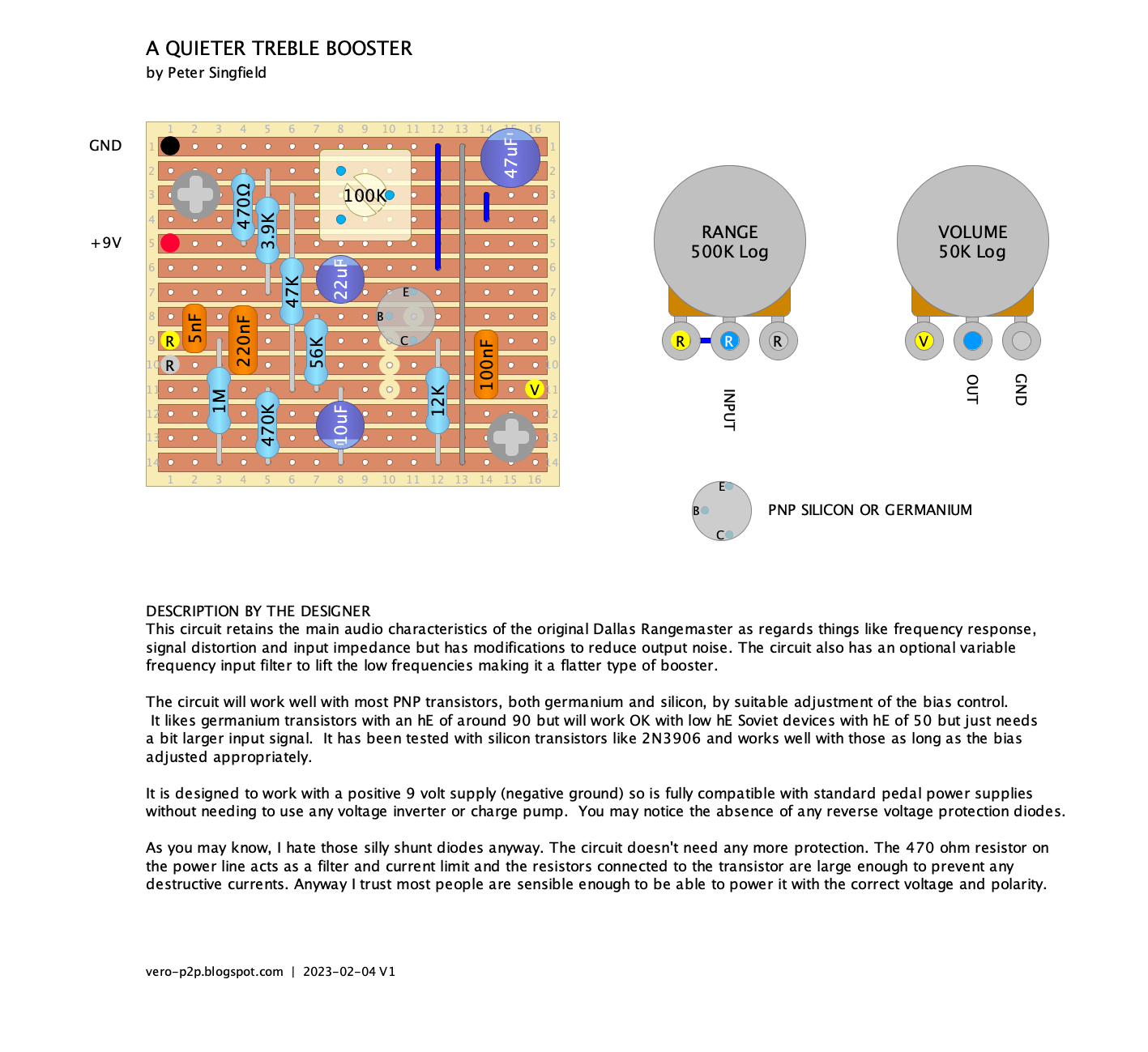

I came across this while browsing one of the usual forums recently and thought it looked like an interesting Rangemaster variant. Silicon or germanium transistor, variable boost, quiet, standard power supply… seems to have a lot going for it as far as treble boosters go. Here’s the thread on DIY Stompboxes (Peter is FSFX) … Read more

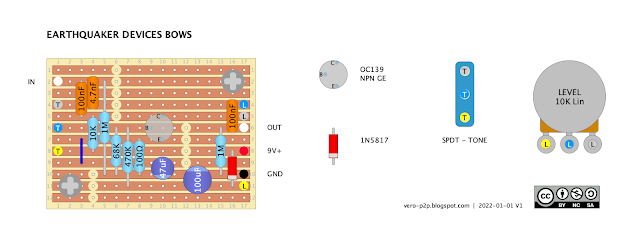

The Earthquaker Devices Bows is a straight-up germanium Rangemaster with some modern tweaks. It uses an NPN transistor and has a switch to swap to a larger input capacitor for a full-range boost. The space above the transistor on this layout allows it to be mounted on its side (bent over 90 degrees), as OC transistors are … Read more
A bit of a classic – well one of the first guitar effects really, the Dallas Rangemaster. A nice simple one for a quick build using leftover tag board. In theory there is room to fit the output cap on the board too, but I liked the straight lines of the components. DALLAS RANGEMASTER TREBLE … Read more

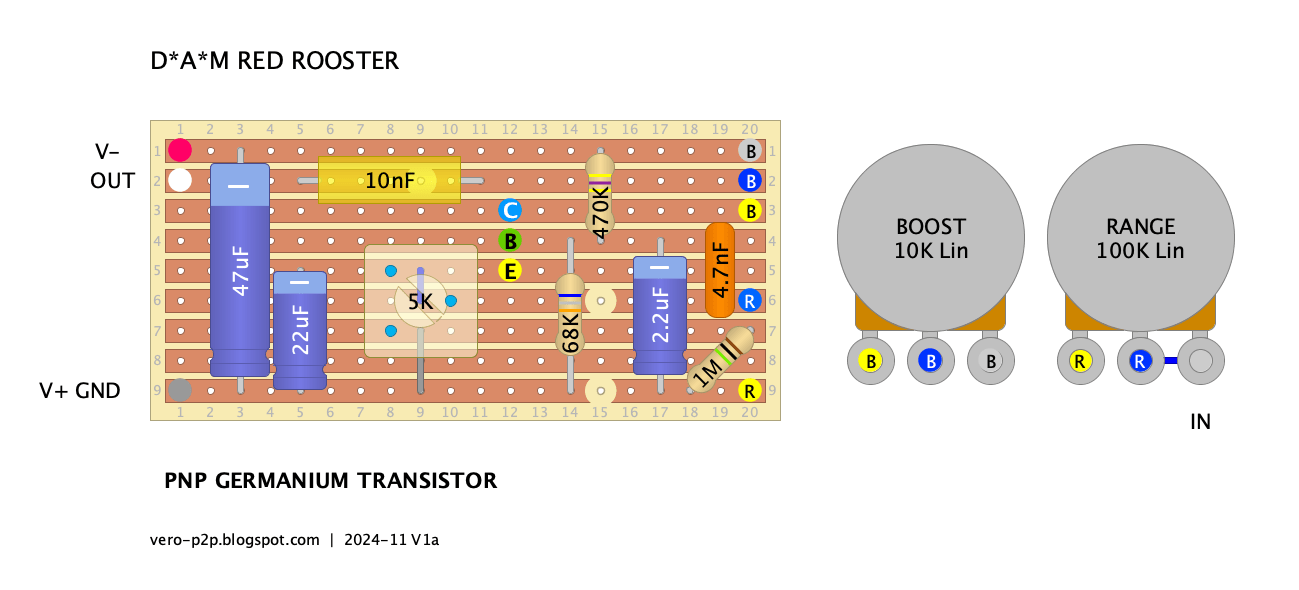

While I was thinking of what could be made with tag board off-cuts, this popped into my head. The D*A*M Red Rooster Booster is probably my all-time favourite booster – I’ve only ever made one, and it was so good I stopped there (it was a point-to-point npn version with trimmer). This is a PNP … Read more

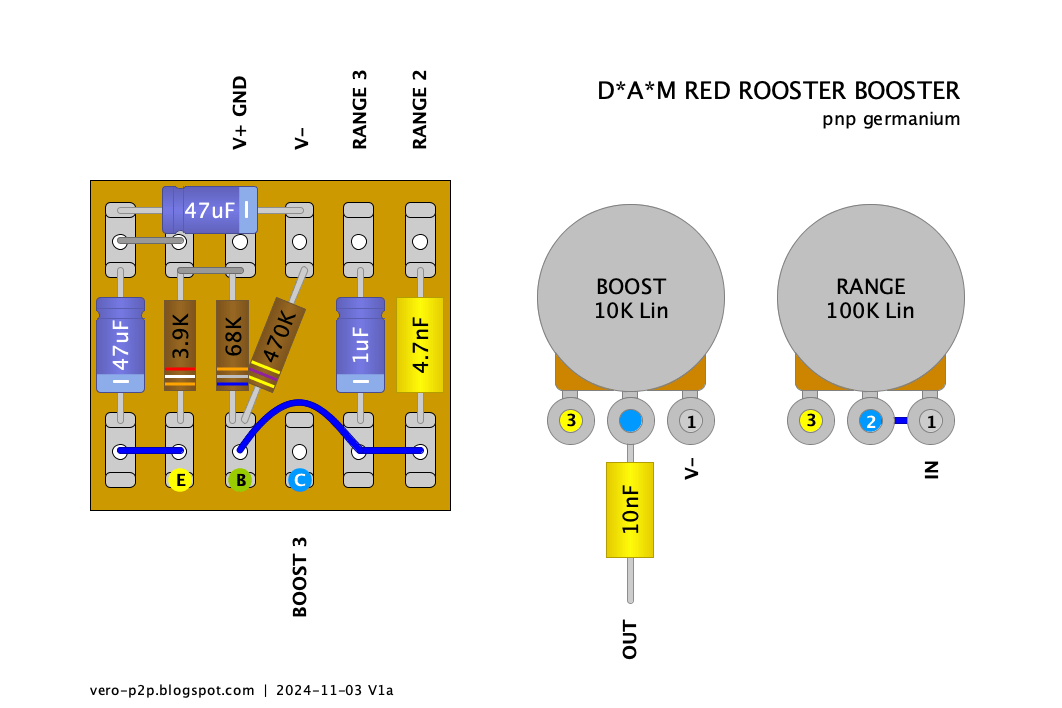

I’ve already done a point to point layout for the D*A*M Red Rooster Booster (which I love by the way), but as I’m on a run of D*A*M layouts today, I thought I might do this one too. Like the rest, this is not my layout; it’s a close copy of the D*A*M layout. If you want … Read more

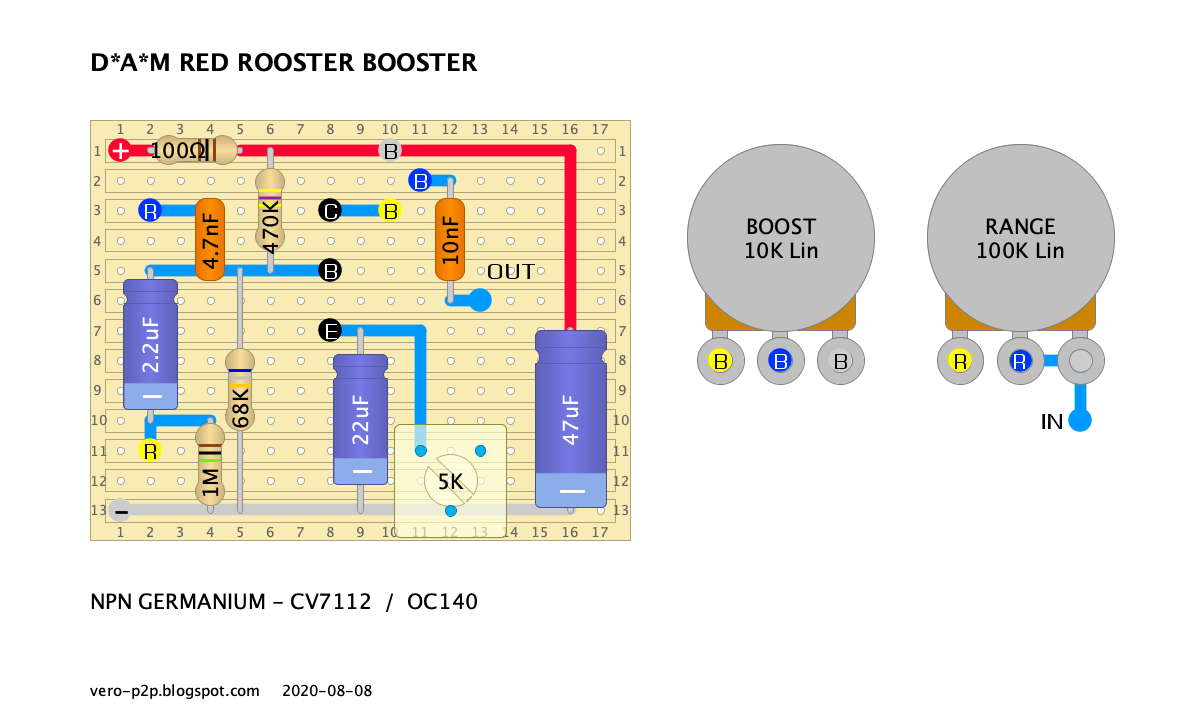

A variation on the classic Rangemaster Treble Booster from D*A*M. The Red Rooster germanium booster uses a NPN transistor so it can run off a normal power supply, and features a capacitor blend on the input to sweep between treble boost and full range boost. This has a lot of boost on tap – it will crush … Read more
