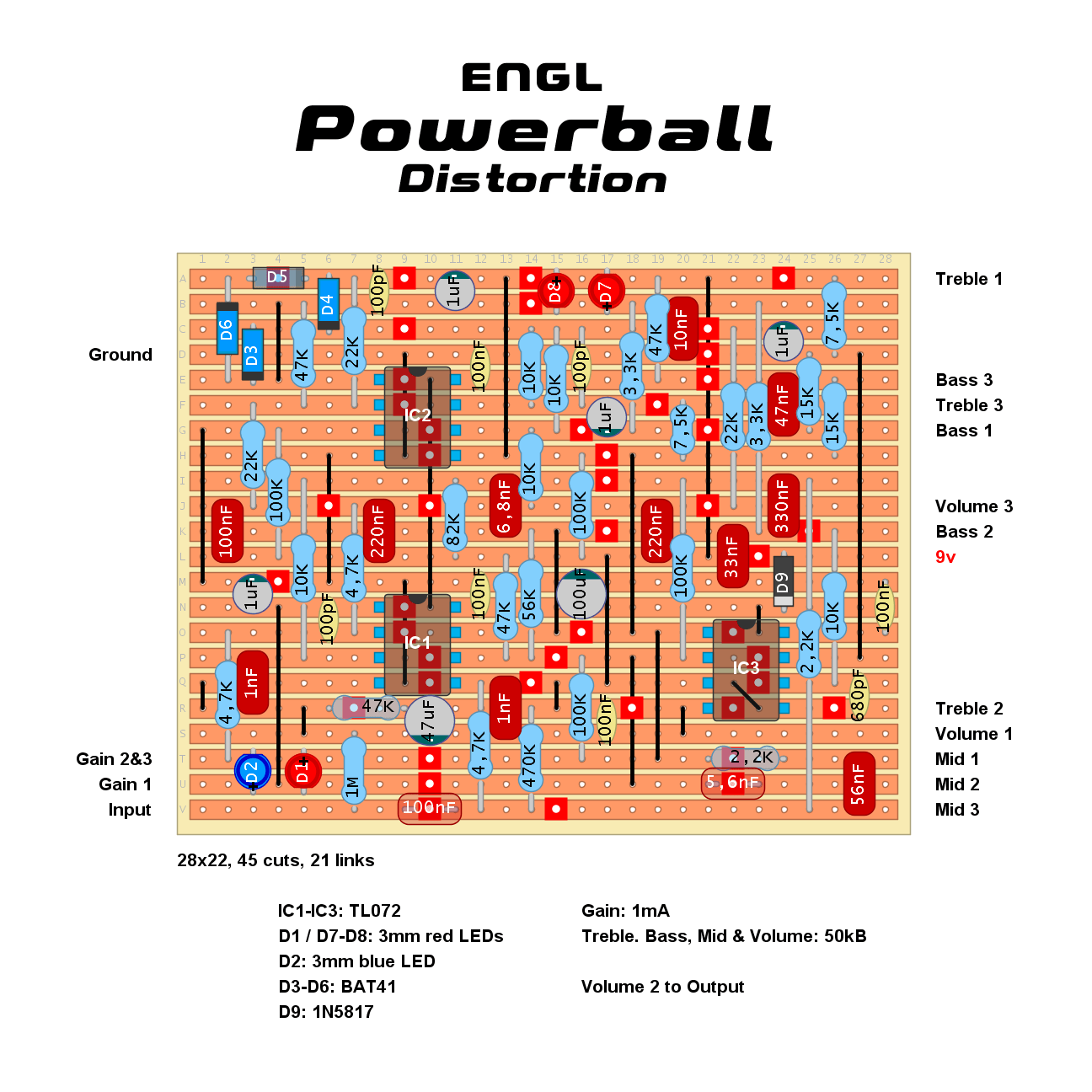

ENGL Powerball Distortion pedal 3645def17c77

ENGL Powerball Distortion

13 Jun 202618 Jul 2021 by chords

Chug, chug, chug!

Based on schematic from PedalPCB.

Categories Uncategorized Tags dirtboxlayouts, Distortion, Engl, Verified
