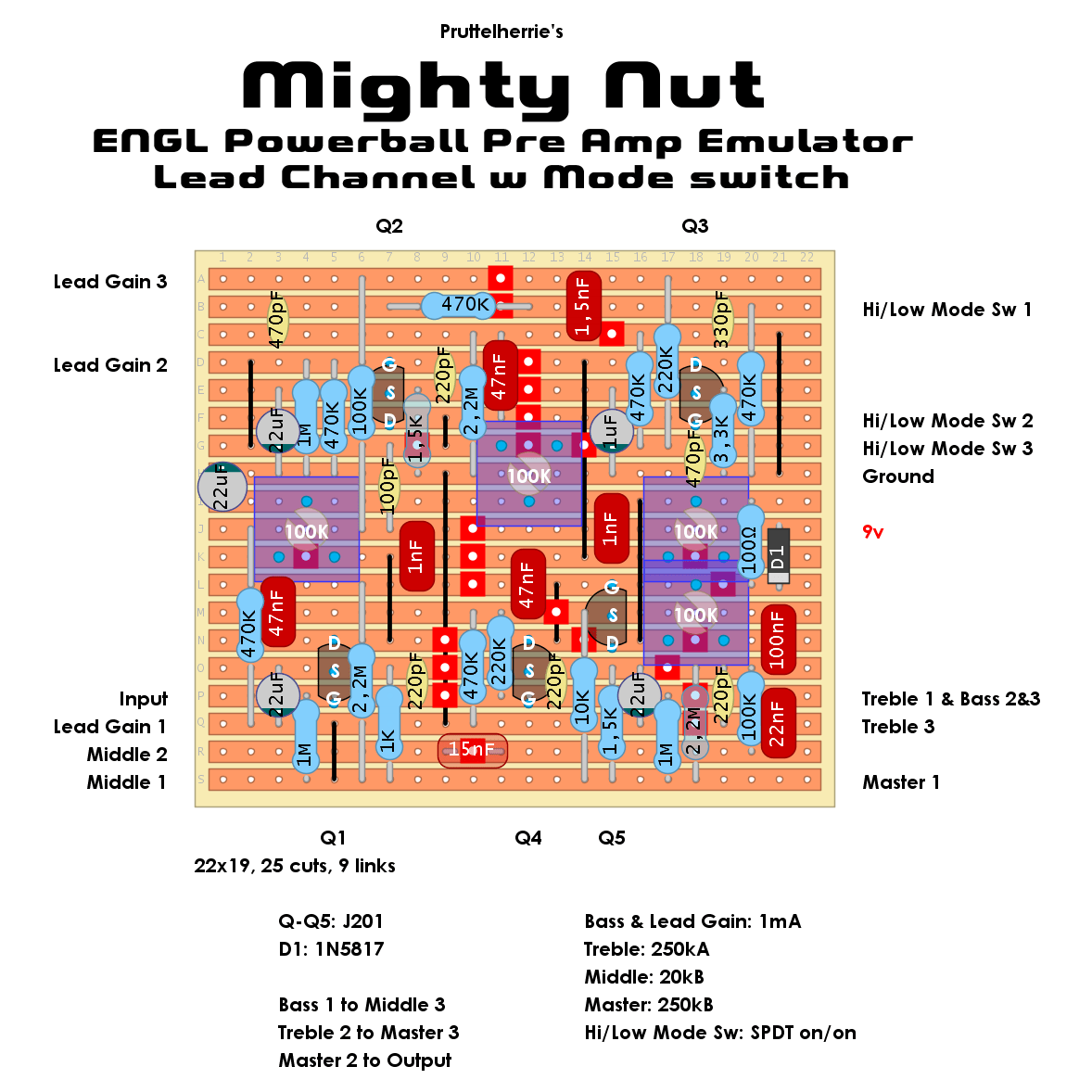

Mighty Nut – ENGL Powerball Pre Amp Emulator Lead Channel
Schematic and info HERE I added the” Low Mode” as well hence the additional Mode switch. And by request, a layout with a Klon buffer before the main circuit.
Engl

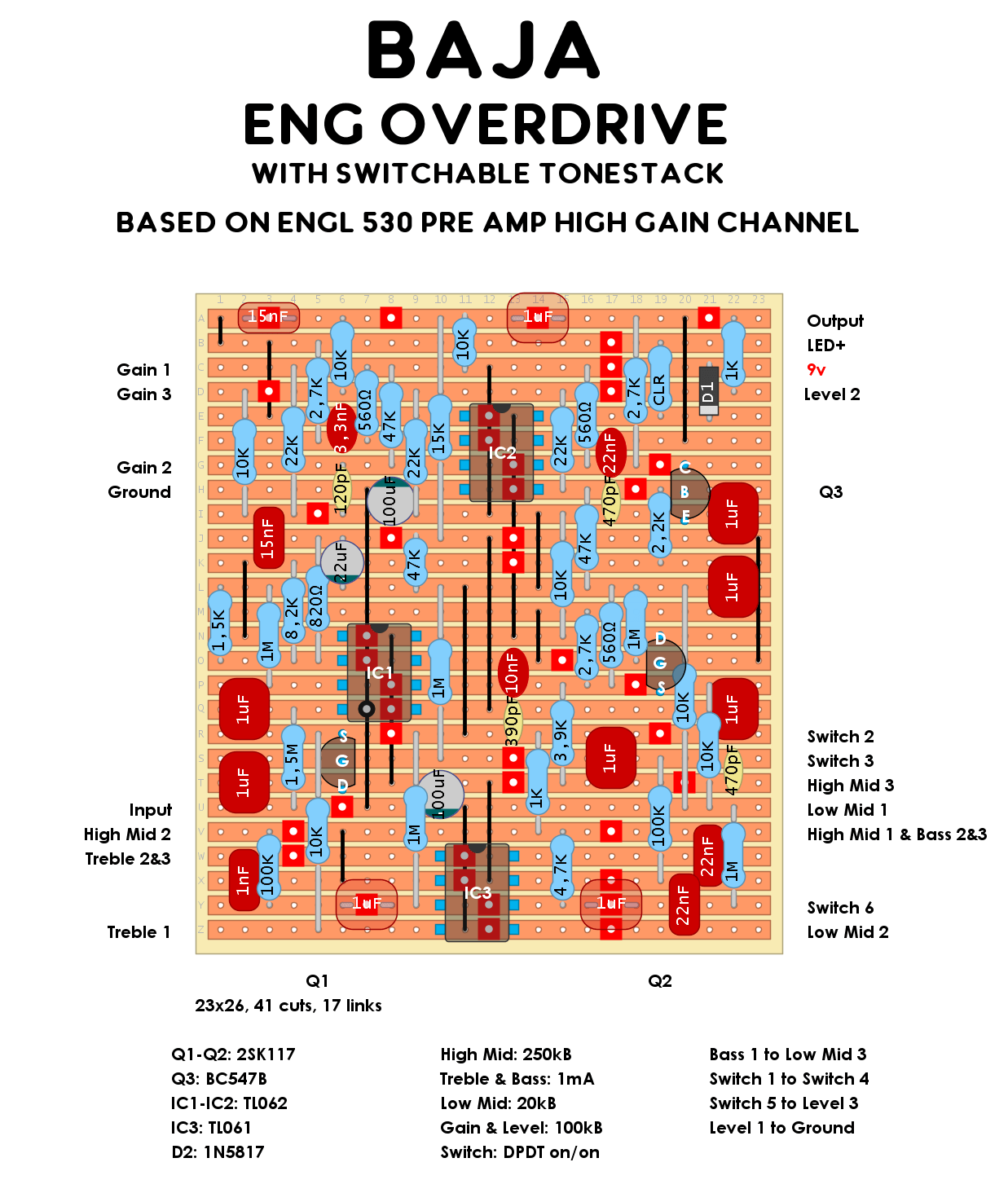

Baja ENG Overdrive
Bajaman’s overdrive circuit based on the Engl 530 preamp with switchable tone stack. Original thread and schematic available on the FSB forum here. The layout should fit in a 125B box. 09/07/2018 Layout Updated! Inverted Treble and Bass pots’ lugs. Changed 390p cap from TL062 pin 5 to 470p. Changed 1K resistor next to 22uF … Read more
