GREER AMPS: Southland Harmonic Overdrive

by

Greer Amps have taken the Lightspeed overdrive and have made a few mods to give us the Southland Harmonic Overdrive.

  • added a set of hard clippers after the first gain stage
  • boosted the gain of the output to make up for the BAT41 hard clippers
  • increase the drive pot value

Could try germanium diodes instead of the BATs, but it will probably sound about the same.

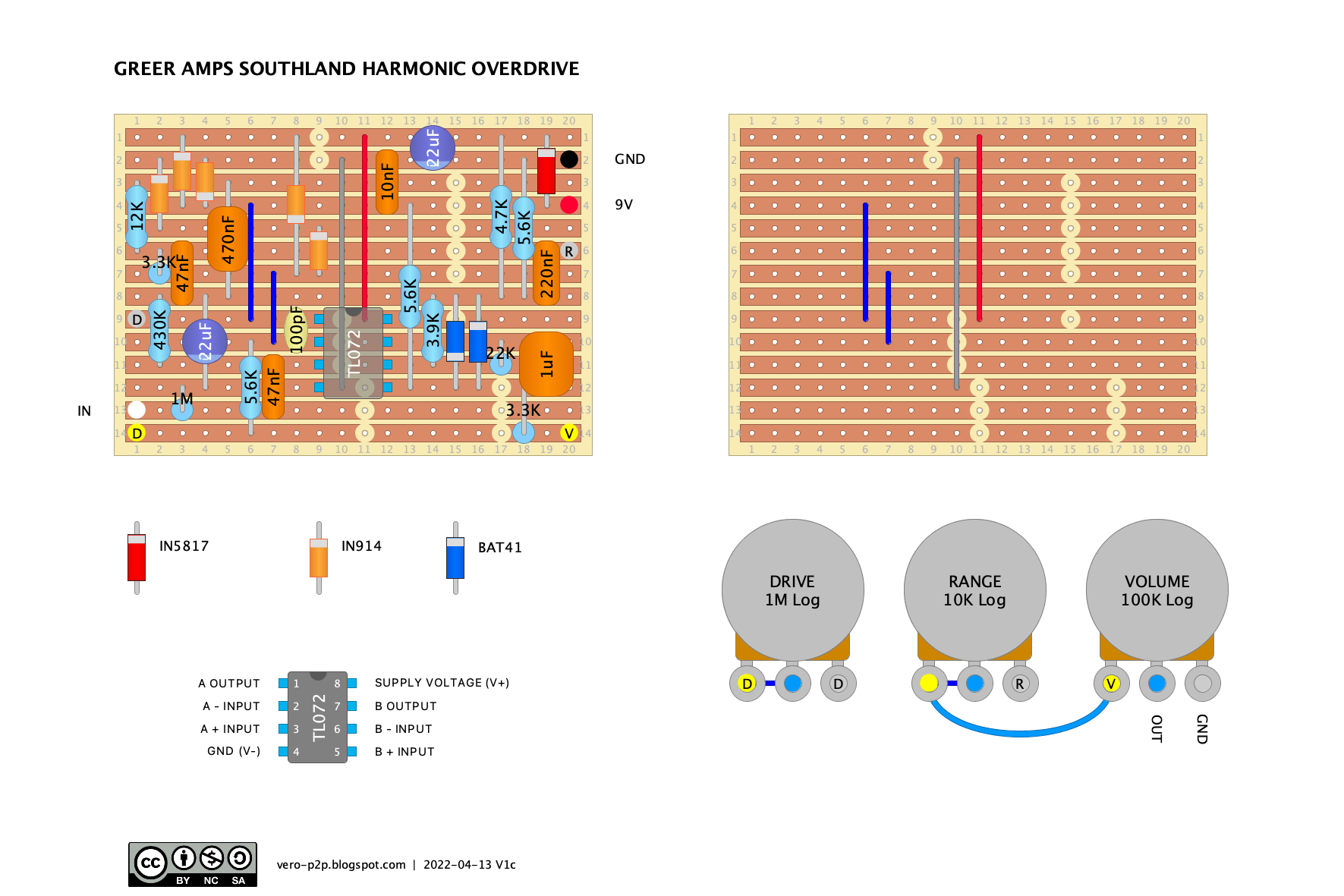

GREER AMPS SOUTHLAND HARMONIC OVERDRIVE – VERO LAYOUT

GREER AMPS SOUTHLAND HARMONIC OVERDRIVE - VERO LAYOUT





GREER AMPS SOUTHLAND HARMONIC OVERDRIVE – VIDEO DEMO
